Go!Control Wireless Security System | Installation and Programming Guide

CONTROL PANEL AND POWER SUPPLY MOUNTING

After all the wiring complete, follow these steps to power up the Control Panel:

Place the bottom of the Control Panel over the lower lip of the backplate and flip the Control Panel upwards. Then push

the Control Panel over the mounting bracket until it snaps into place. it with the retaining screw.

Peel off the adhesive backing from the power supply retaining bracket and attach the bracket to the outlet with a wall

plate screw.

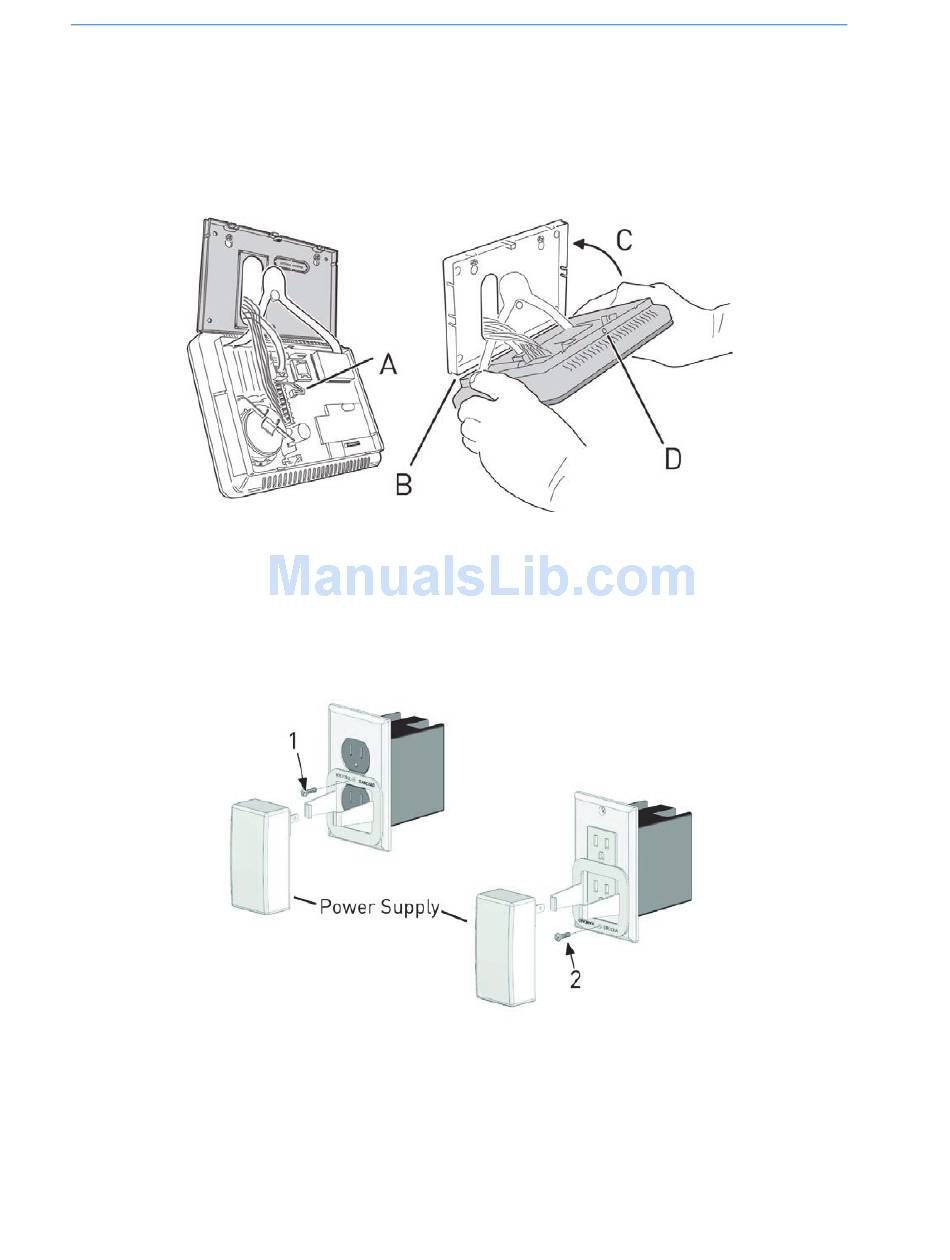

Figure 18 Connecting Battery and Closing Panel

A Connect battery

B Align mounting plate inside of console bottom edge

C Swing console up and snap into the mounting plate

D Secure console with screw in retaining hole

Spread the retaining bracket ears and plug the Control Panel's power supply into the unswitched wall outlet. Slots are

provided on the bracket to secure the power supply with a zip‐tie.

After about five (5) seconds, the Control Panel indicates that power has been applied. If the Control Panel does not

power up, check the power supply polarity.

Figure 19 Securing the Power Supply

1 Place the screw here for a bracket on a standard style outlet.

2 Place the screw here for a bracket on a decora style outlet.

NOTE: In the United States (and other countries where it is required), use the power supply retaining bracket. In Canada,

the power supply retaining bracket is not required.
