CONTROL PANEL FEATURES

EXTERNAL FEATURES

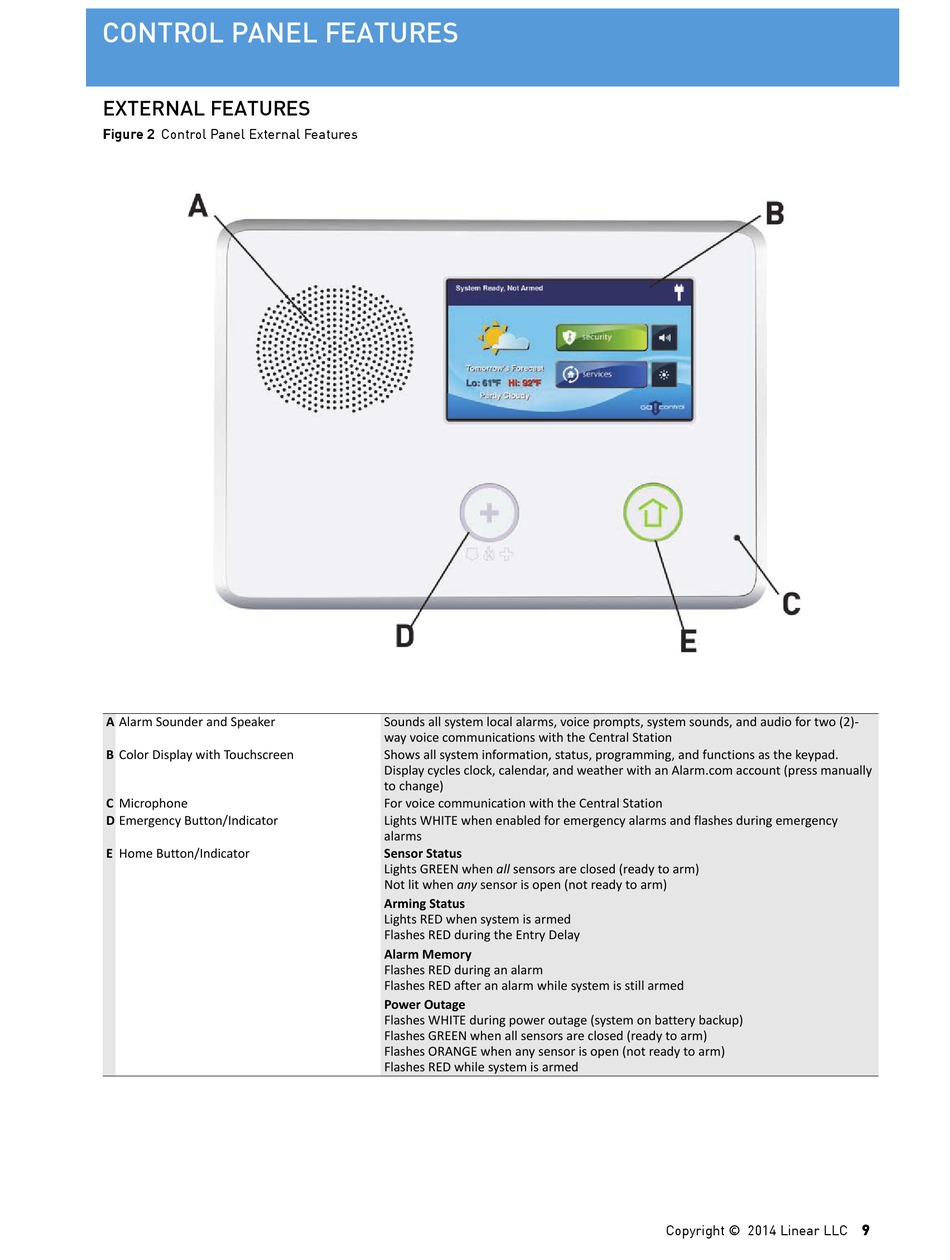

Figure 2 Control Panel External Features
A Alarm Sounder and Speaker
B Color Display with Touchscreen
C Microphone
D Emergency Button/Indicator
E Home Button/Indicator
Sounds all system local alarms, voice prompts, system sounds, and audio for two (2)‐
way voice communications with the Central Station
Shows all system information, status, programming, and functions as the keypad.
Display cycles clock, calendar, and weather with an Alarm.com account (press manually
to change)
For voice communication with the Central Station
Lights WHITE when enabled for emergency alarms and flashes during emergency
alarms
Sensor Status
Lights GREEN when all sensors are closed (ready to arm)
Not lit when any sensor is open (not ready to arm)
Arming Status
Lights RED when system is armed
Flashes RED during the Entry Delay
Alarm Memory
Flashes RED during an alarm
Flashes RED after an alarm while system is still armed
Power Outage
Flashes WHITE during power outage (system on battery backup)
Flashes GREEN when all sensors are closed (ready to arm)
Flashes ORANGE when any sensor is open (not ready to arm)
Flashes RED while system is armed
Copyright © 2014 Linear LLC 9
