See "Wire Size and Length" on page 21 for wire size and
maximum length.
1 Run a four (4)‐conductor telephone cable from the
telephone company's demarcation point to the Control
Panel mounting plate.
2 Install the 2GIG Go!Control POTS Module into the
Control Panel.
WARNING: To reduce the risk of fire, use only No. 26 AWG
or larger telecommunication line cord for phone line
communications.
At the demarcation point, do the following:
3
3a Disconnect only the house telephones that are
wired to the box output.
Do not disturb the telco input "drop" side of the box
or any earth grounds.
Connect the RED cable wire to the box Ring, and
3b
the GREEN cable wire to the box Tip.
3c Connect the BLACK cable wire to the house
telephone Ring wire(s), and the YELLOW cable wire
to the house telephone Tip wire(s).
At the Control Panel, do the following:
4
Connect the cable's RED wire to the RJ31X jack's
4a
Ring in terminal, and the GREEN wire to the
RJ31Xjack's Tip in terminal.
Connect the cable's BLACK wire to the RJ31X jack's
4b
Ring out terminal, and the YELLOW wire to the
RJ31Xjack's Tip out terminal.
4c Snap the cover on the jack.
Plug one end of the modular cable into the jack and
4d
slide it through the hole in the mounting plate into
the wall.
Power ON the Control Panell.
5
Access the System Configuration screen as follows:
6
At the Home screen, tap the system logo in the
6a
lower‐right corner.
6b At the Enter Your Code screen, enter the master
installer code (the default code is 1561).
At the Installer Toolbox screen, press System
6c
Configuration.
Press Go To and then enter the code shown below
6d
to respond to these programming questions:
• Enter 08. For details, see"Q8: Dialer (0‐1)" on
page 54.
• Enter 11. For details, see "Q11: CS #1 Phone
Number (0‐25 Digits)" on page 55.
• Enter 12. For details, see "Q12: CS #1 Account
Number (4 Digits)" on page 55.
IMPORTANT: You must program the module in order to
use it with the Control Panel.

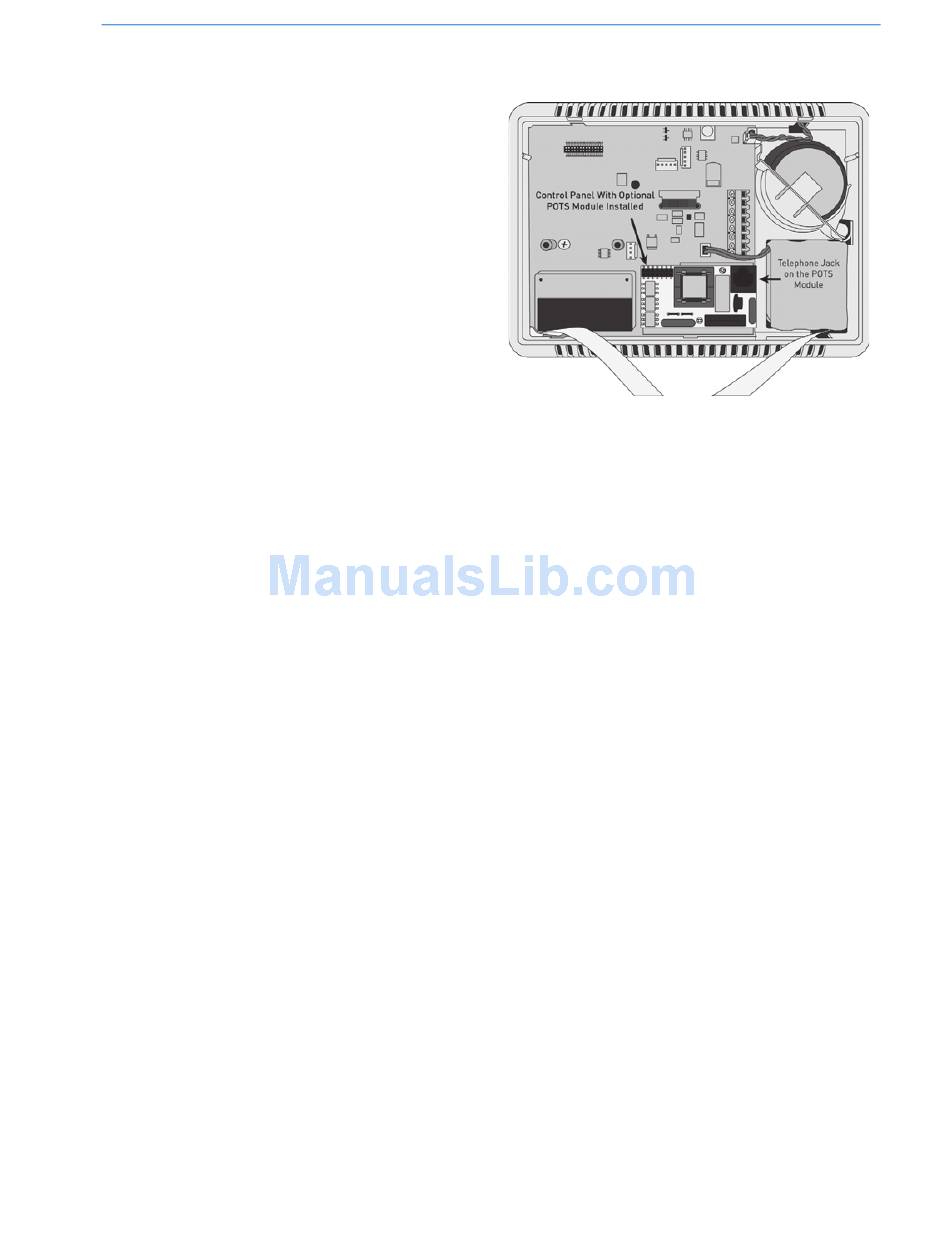

Figure 11 Control Panel with 2GIG Go!Control POTS Module
