Go!Control Wireless Security System | Installation and Programming Guide

INTERNAL FEATURES

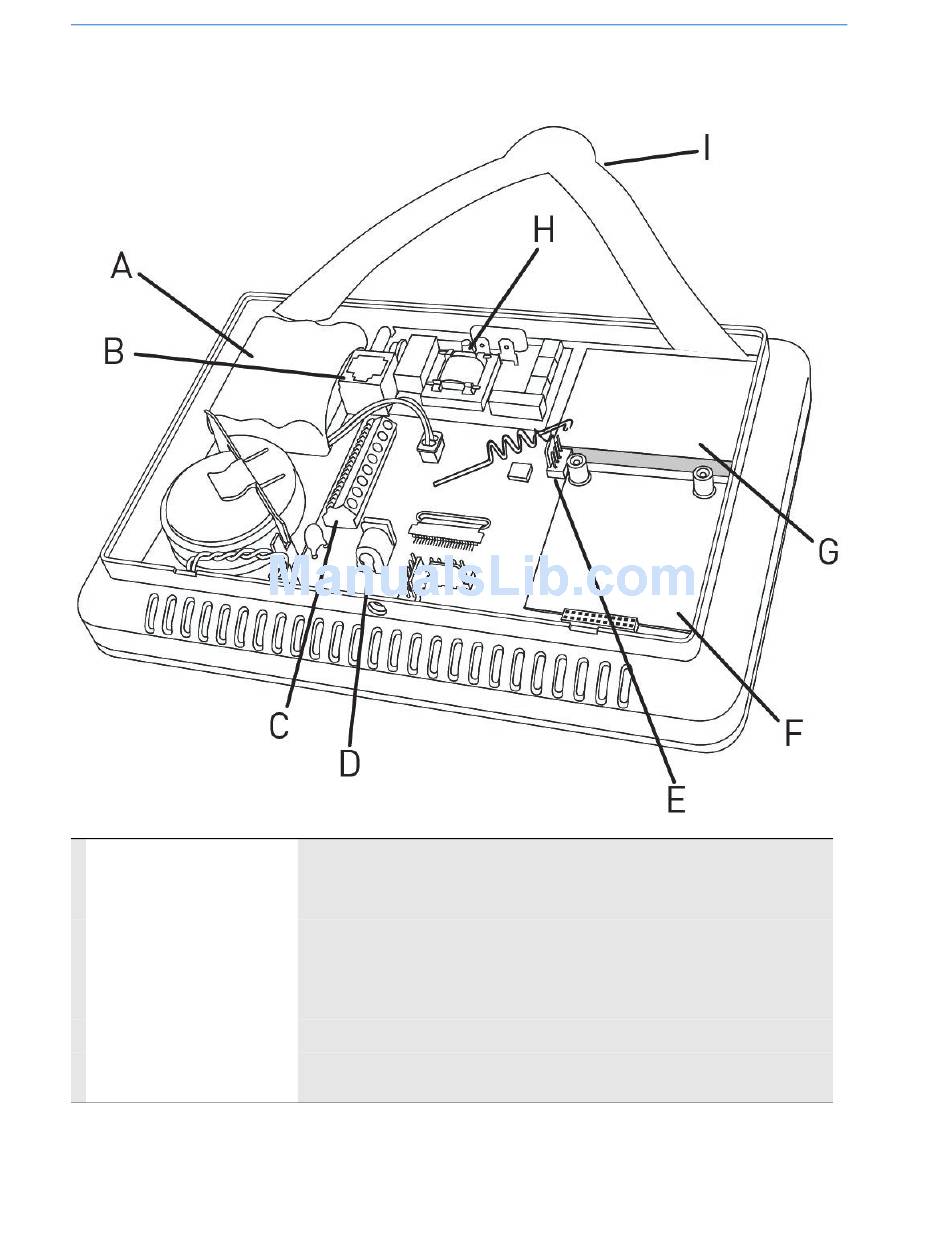

Figure 3 Control Panel Internal Features
A Backup Battery Pack
B Telephone Jack
C Terminal Block
D Alternate Power Supply
E J4 Pin Connector
F Optional Receiver Module
G Main Receiver Module
H POTS Module (Optional)
I Third‐Hand Hanger Strap
10 Copyright © 2014 Linear LLC
The standard backup battery that is included with all 2GIG Control Panels does not support UL
985 installations. To comply with the secondary supply requirement in UL 985 Household Fire
Warning System Units, you must install the 2GIG Console Battery Pack (2GIG‐BATT2X).
Used for RJ45 connection to installation's RJ31X telephone jack. See "Optional 2GIG Go!Control
POTS Module" on page 16.
Connections for power, solid state output bell, and hardwire loops.
Alternate connection for power. (Plug‐in barrel connector)
Connector for the Firmware Update Cable used to update the firmware version on the Control
Panel.
2GIG Go!Control POTS Module for over‐the‐air communication with the Central Station. . See
"Optional 2GIG Go!Control POTS Module" on page 16.
Receiver for peripheral device transmissions (or an optional 2GIG 900 MHz Transceiver Module
for use with the Wireless Touch Screen Keypad).
2GIG Go!Control POTS Module for connecting the lineman's phone (a.k.a., buttset) for
monitoring the telephone line. See "Optional 2GIG Go!Control POTS Module" on page 16.
Hooks onto mounting plate during installation to hold the Control Panel while wiring.
