DIAGRAMS

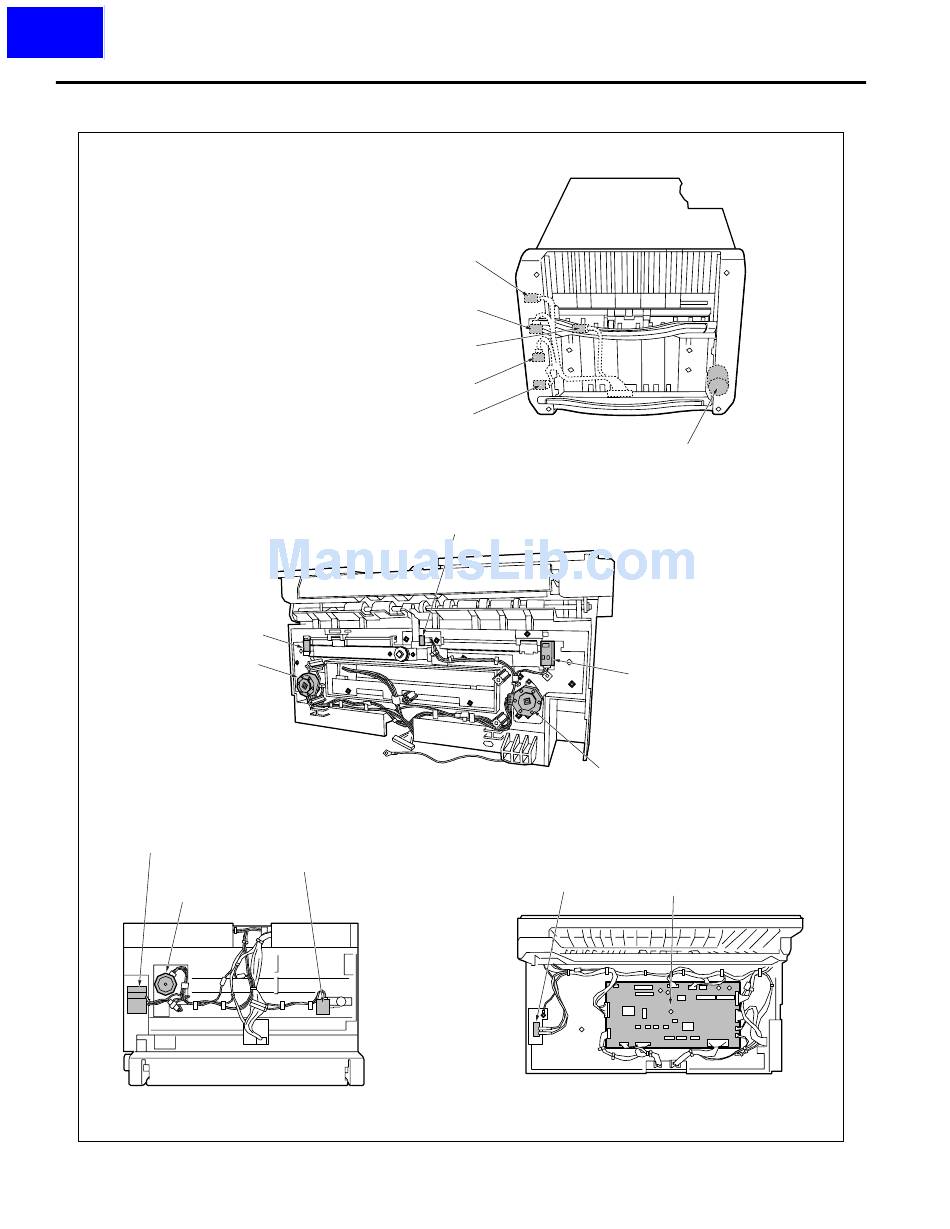

FS-107 ELECTRICAL PARTS LAYOUT DRAWING
PS711 Tray upper limit detect PS
PS704 Tray full-stack detect PS
PS703 Paper exit detect PS
PS716 Tray count PS
PS706 Tray lower limit detect PS
M706 Tray up/down motor
PS707 No paper detect PS
PS709 Alignment plate
detect PS (rear)
M703 Alignment motor (rear)
PS710 Alignment plate
detect PS (front)
M704 Alignment motor (front)
M706 Tray up/down motor
PS708 Stapler unit HP detect PS
MS701 Front door switch
FSCB FS control board
M705 Stapler shift motor
8-10
