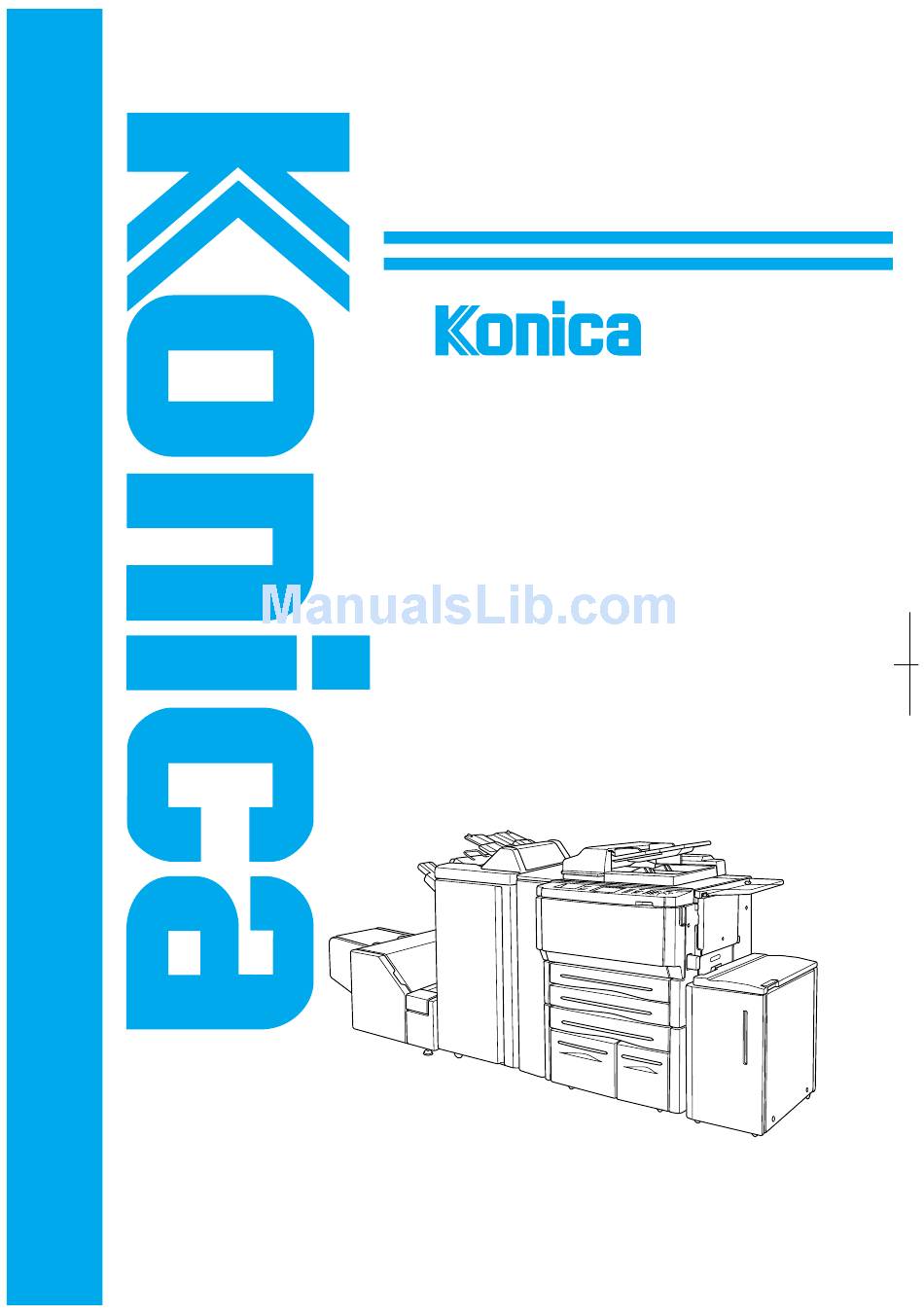

Page 1 INSTRUCTION MANUAL 7065 Before copying, read this guide. Keep in the right hand rear pocket of the machine.
Page 2 Thank you very much for your purchase of the Konica 7065. This Manual deals with making copies, correct handling of the machine, and precautions for safety. Please read before copying. In order to maintain a satisfactory copying performance, please keep this Manual readily available for reference in the right hand rear pocket of the machine.
Page 3: Table Of Contents
Introduction Contents Safety Section 1: Introduction Information Features of the Konica 7065 ..................1-2 Copier Features ......................1-7 Standard Equipment ....................1-7 Machine Optional Equipment ....................1-7 Information Section 2 : Safety Information Paper Caution Labels and Indicator ..................2-2 Information Danger, Warning and Caution Symbols ................
Page 4 Contents Section 4: Paper Information (continued) Paper in Automatic Duplex Unit ..................4-6 Paper in FS-106 Finisher (Option) ................4-7 FS-106 Finisher Primary (Main) Tray ..............4-7 FS-106 Finisher Secondary (Sub) Tray ..............4-7 Paper in FS-108BM Finisher (Option) ................4-8 FS-108BM Finisher Primary (Main) Tray ...............
Page 5 Introduction Contents Safety Section 6: Basic Operations (continued) Information Rotation and AMS ....................6-34 To Release Automatic Rotation ................6-35 Check Mode and Proof Copy ..................6-36 Machine Interrupt Mode ......................6-40 Information Help Mode ........................6-42 Using the Multi-Sheet Bypass Tray ................6-43 Paper Section 7: Output Modes Information...
Page 6 Contents Section 10: Job Memory Job Store ........................10-2 Job Recall ........................10-4 Job Memory Form ....................... 10-6 Section 11: Tandem Mode Operation in Tandem Mode ..................11-2 To Stop Scanning/Printing ................... 11-5 Troubleshooting ......................11-5 Section 12 : Key Operator Mode To the Key Operator ....................
Page 7 Introduction Contents Safety Section 13: Maintenance & Supplies Information Loading Paper ......................13-2 Add Paper Indicator ..................... 13-2 Paper Level Indicator (Tray 5) ................13-2 Machine Using the HELP Key .................... 13-2 Information Tray Error Indicator ( ! ) ..................13-2 Loading Paper in Tray 1 ..................
Page 8: Section 1: Introduction
I ntroduction Section 1: Introduction Features of the Konica 7065 Copier Features Standard Equipment Optional Equipment...
Page 9 Section 1 : Introduction Features of the Konica 7065 • AE - Automatic Exposure Automatically adjust exposure to compensate for the original. • Alternate Exit When no Finisher is installed, alternately switch the horizontal and vertical orientation of each sorted set as it outputs to the exit tray. Be sure to load both A4/B5 and A4R/B5R in separate trays other than the Multi-sheet bypass tray.
Page 10 Section 1 : Introduction I ntroduction Features of the Konica 7065 (continued) • Data Printing Print the following three types of data for confirmation; copy quantity for each password, copy limit for each password, copy quantity for each paper size.
Page 11 • Non STD Size Identifies the special original size which the 7065 could not detect in order to select the optimal paper size for copying or printing.
Page 12 (10 ~ 300mm) permits in manual or auto. • Reserve Scan in subsequent copy jobs while the 7065 is busy printing or copying. • Resolution (High, Very High) High resolution mode and Very High resolution mode provide optimal image quality for photos and complicated graphics and text which contain a large amount of detail.
Page 13 Section 1 : Introduction Features of the Konica 7065 (continued) • Thin/Thick Paper Use Thin mode when copy paper weight is less than 60g/m ; use Thick mode when copy paper weight is over 90g/m • Trimming mode for FS-108BM Finisher with TU-108 Trimmer Unit Installed: Trim the end of the booklet when selecting the Folding/Stapling &...
Page 14: Copier Features
Section 1 : Introduction I ntroduction Copier Features Standard Equipment Main Body with 4 Paper Trays (500/500/1,000/1,500 sheets) Reversing Automatic Document Feeder (RADF) (DF-312) Automatic Duplex Unit (ADU) Configuration Options: with Multi-Sheet Bypass Tray (100 sheets) Optional Equipment Stapler Finisher (FS-106) This finisher is equipped with two exit trays.
Page 15 Section 1 : Introduction Copier Features (continued) Trimmer Unit (TU-108) Used when selecting TRIM with STAPLING & FOLDING or FOLDING on the Output Mode Screen. Large Capacity Tray (LT-352) (3,500 sheets) Expanded Memory Unit-32MB Video Interface Kit Tandem Kit (TD-101) 1 - 8...
Page 16: Section 2 : Safety Information
Section 2 : Safety Information Safety Information Caution Labels and Indicator Danger, Warning and Caution Symbols Requirements for Safe Use Power Source Environment Precautions for Routine Handling...
Page 17: Caution Labels And Indicator
Section 2 : Safety Information Caution Labels and Indicator The caution labels and indicator are attached to the machine areas, as shown below, where you are advised to pay special attention to avoid any dangerous situations or serious injury. CAUTION If you touch any place which you are advised by any caution label or caution indicator to keep yourself away from, you may be burned or injured.
Page 18 Section 2 : Safety Information CAUTION CAUTION Safety Information Use care after opening the paper exit Use care after opening the outlet. DO NOT put your hand into it; paper exit outlet. otherwise you may be injured. DO NOT put your hand into it; otherwise you may be injured.
Page 19: Danger, Warning And Caution Symbols
Section 2 : Safety Information Danger, Warning and Caution Symbols The following indicators are used on the caution labels or in this manual to categorize the level of safety cautions. DANGER: Action highly liable to cause a death or serious injury. WARNING: Action liable to cause a death or serious injury.
Page 20: Requirements For Safe Use
If you require further information about power requirements, power consumption, extension leads, adapters and connectors, please contact your Konica service centre, and also consult your electrical contractor. When using an extension lead with a reel, let out the full length from the reel. Using the lead in rolled-up condition may result in overheating, smoking and/or igniting.
Page 21 Section 2 : Safety Information Requirements for Safe Use (continued) Power Source (continued) WARNING: Earth wire (Taiwan and the Philippines Only) • Be sure to attach the earth wire to the machine and connect it to the ground correctly; otherwise, a leak may occur to electrically shock the operator during machine operation. The earth wire is supplied as an accessory to the machine.
Page 22: Environment
Section 2 : Safety Information Requirements for Safe Use (continued) Safety Environment Information CAUTION: Prevention of Fire Do not install near flammable materials, curtains and volatile combustibles, that can catch or cause fire. CAUTION: Prevention of Short Circuit Do not install the copier where it could be splashed with rain water, or water from a tap, to avoid a short circuit.
Page 23 Section 2 : Safety Information Requirements for Safe Use (continued) Environment (continued) CAUTION: Installation Space Allow sufficient space for facilitating copy operation, changing parts, and periodic inspection. Especially leave an adequate space behind the machine to let hot air out from the rear fan.
Page 24 Section 2 : Safety Information Requirements for Safe Use (continued) Safety Environment (continued) Information 1664 1164 1710 1937 2187 *: The dimention required when withdrawing the Large Capacity Tray (LT-352) Main body + FS-108BM Finisher + LT-352 1117 1664 1164 2901 1710 3261...
Page 25: Precautions For Routine Handling
Section 2 : Safety Information Requirements for Safe Use (continued) Precautions for Routine Handling WARNING: High Voltage DO NOT TOUCH the high voltage parts indicated with WARNING label or described in the manual. CAUTION: Actions in Response to Troubles • If the Service Call screen is displayed and copier operations cannot be continued any more, stop the operation to prevent any unexpected accident.
Page 26 Section 2 : Safety Information Requirements for Safe Use (continued) Safety Precautions for Routine Handling (continued) Information CAUTION: Prevention of Machine Troubles • Do not drop small metallic objects such as paper clips or staples inside the machine. • Do not place any heavy or hard objects such as a vase, books or ornaments on the machine.
Page 27 Section 2 : Safety Information Requirements for Safe Use (continued) Precautions for Routine Handling (continued) CAUTION: FS-108BM Finisher Paper Capacity The capacity of the FS-108BM Finisher exit tray is listed below. When the total number of copies in the copy run exceeds the stated capacity, be sure to unload the exit tray whilst the copier is still copying.
Page 28 Section 2 : Safety Information Requirements for Safe Use (continued) Safety Precautions for Routine Handling (continued) Information CAUTION: Power Saver and Weekly Timer • During Power Saver mode the copier is still connected to the mains power supply and power is still applied to certain areas of the machine. To avoid any unexpected troubles turn the power OFF when not using the copier for long periods of time.
Page 29: Section 3: Machine Information
Section 3: Machine Information Machine Configuration External Machine Call-Outs Internal Machine Call-Outs Machine Standard/Optional Equipment Information Machine Control Panel Layout Configuration Control Panel/ Touch Screen Touch Screen Automatic Full-Automatic Mode Screen Settings Basic Screen (Layer Selection Screen) Service Basic Screen (Direct Selection Screen) Settings Initial Settings Auto/Reset Mode...
Page 30 Section 3 : Machine Information Machine Configuration External Machine @2 L CD touch screen @0 P unching unit PU-108 (option) @1 P ower switch qRADF @3 C ontrol panel !9 F inisher FS-108BM wWork table (option) eMulti-sheet !8 L eft side cover bypass tray (not shown) !7 T rimmer...
Page 31: External Machine Call-Outs
Section 3 : Machine Information Machine Configuration (continued) External Machine Call-outs q RADF (Reversing Automatic Document Feeder) automatically feeds multiple originals one at a time to the platen glass for copying. Machine w Work table provides a convenient workspace for documents both before and after Information copying.
Page 32: Standard/Optional Equipment
Section 3 : Machine Information Machine Configuration (continued) Standard/Optional Equipment Reversing Automatic Document Feeder - RADF (DF-312) FS-108BM Finisher (see details below) Tray 1 (500 sheets) Work Table Tray 2 (500 sheets) Automatic Duplex Unit - ADU Multi-Sheet Bypass Tray Tray 3 (1,000 sheets) (100 sheets) Tray 4 (1,500 sheets)
Page 33 Section 3 : Machine Information Machine Configuration (continued) Standard/Optional Equipment Machine TU-108 Trimmer unit details FS-108BM Finisher Information Machine Configuration Trimmer stacker cover: opens to allow you to take out the finished sets. Trimmer unit tray: slides to the left side each time a trimmed booklet is delivered.
Page 34 Section 3 : Machine Information Machine Configuration (continued) Standard/Optional Equipment PU-108 Punching unit details Upper lever: Opens upward to allow removeal of mishandled paper. Punching unit knob: Right lever: can be turned to ease Opens upward to allow removal of mishandled removal of mishandled paper.
Page 35: Control Panel Layout
Section 3 : Machine Information Control Panel Layout !0 !1 !5 !9 @0 !7 !8 Machine Machine COPY PRINTER TIMER Information Information PRINT QUANTITY TANDEM INTERRUPT Machine POWER SAVER SPECIAL ORIGINAL ON / OFF Configuration PROOF COPY OUTPUT APPLICATION CHECK HELP Control Panel/ Touch Screen...
Page 36: Touch Screen
After the power switch is turned on, the Konica name displays for approximately 10 seconds, until initial machine settings are established. Then, the Warm-Up Screen displays for approximately 6.5 minutes, until the fixing temperature is reached.
Page 37: Basic Screen (Layer Selection Screen)
Section 3 : Machine Information Touch Screen (continued) Basic Screen (Layer Selection Screen) The 7065 Layer Selection Screen is the default basic screen. To switch the default basic screen to the Direct Selection Screen, contact your service representative. Machine The Basic Screen includes a two-line message bar at the top; a user-interactive portion Information in the centre;...
Page 38: Auto/Reset Mode
Section 3 : Machine Information Initial Settings Initial settings represent the initial condition when power is turned on; when EKC password is set; or when Auto/Reset mode is restored, either manually or automatically. Print Quantity; 1 Magnification Ratio: 1:1 (key operator setting) RADF: ON (key operator setting) Copy mode: 1-1 mode (key operator setting) AE: (Automatic Exposure) : ON (key operator setting)
Page 39: Lead Edge Delete
Automatic Settings Finisher-Paper Capacity In the default condition, the 7065 will produce unlimited sets. If required, service can set the copier to stop copying when the number of copies exceeds specified capacity. Key Operator Password Service can set a 4-digit Key operator password to access the Key Operator Mode Screen.
Page 40: Staple Sheet Capacity
Basic Screen Selection The 7065 Basic Screen defaults to the Layer Selection Screen type. If you wish to make your Basic Screen default to the Direct Selection Screen, contact your service centre. 3 - 12...
Page 41: Section 4: Paper Information
Section 4: Paper Information Positioning Originals on the Platen Glass Positioning an Original for Manual Copying Using the Reversing Automatic Document Feeder (RADF) Positioning Originals Positioning Mixed Originals Paper Information Paper in Main Body Trays Paper in Large Capacity Tray (LT-352) (Option) Paper in Multi-Sheet Bypass Tray Paper in Automatic Duplex Unit Paper in FS-106 Finisher (Option)
Page 42: Positioning Originals On The Platen Glass
Section 4 : Paper Information Positioning Originals on the Platen Glass Positioning an Original for Manual Copying Use the platen glass when originals are not suitable for use with the document feeder, e.g., when size is incompatible, or when originals are folded, stapled, torn, or in generally poor condition.
Page 43: Using The Reversing Automatic Document Feeder (Radf)
Section 4 : Paper Information Using the Reversing Automatic Document Feeder (RADF) Specifications All capacities are stated for 80g/m paper Max. RADF tray capacity: 50 sheets Max. original exit tray capacity: 50 sheets Original size range: A3, B4, F4, A4R, A4, B5R, B5, A5* , 8.5"x11"...
Page 44: Positioning Originals
Section 4 : Paper Information Using the Reversing Automatic Document Feeder (RADF) (continued) Positioning Originals The document feeder (RADF) automatically feeds up to 50 originals directly to the platen glass, starting with the top sheet. The RADF should only be used for unstapled, unfolded, smooth, flat originals.
Page 45: Positioning Mixed Originals
Section 4 : Paper Information Using the Reversing Automatic Document Feeder (RADF) (continued) Positioning Mixed Originals Mixed size originals can be copied together from the document feeder in either APS mode or AMS mode. In APS mode, copies will be output on mixed paper sizes to match the originals.
Page 46: Paper In Main Body Trays
Duplex Tray Capacity: Unlimited stackless duplex tray NOTE: *: A5 paper is available in landscape orientation ( ) only. NOTE: Reliability and copy quality are not guaranteed for all Special papers. Use only paper that is recommended by Konica. 4 - 6...
Page 47: Paper In Fs-106 Finisher (Option)
Section 4 : Paper Information Paper in FS-106 Finisher (Option) FS-106 Finisher accepts A3, B4, F4, A4R, A4, B5R, B5, A5, B6, 8.5"x11"R, and 8.5"x11" paper sizes. The finisher tray capacities classified according to paper size in each output mode are described below. CAUTION: When the finisher capacity is exceeded due to the print quantity selected, remove the copied sets while the paper is exiting;...
Page 48: Paper In Fs-108Bm Finisher (Option)
Section 4 : Paper Information Paper in FS-108BM Finisher (Option) FS-108BM Finisher accepts A3, B4, F4, A4R, A4, B5R, B5, A5, B6, 8.5"x11"R, and 8.5"x11" paper sizes. The finisher tray capacities classified according to paper size in each output mode are described below. CAUTION: When the finisher capacity is exceeded due to the print quantity selected, remove the copied sets while the paper is exiting;...
Page 49: Fs-108Bm Finisher Booklet Tray
Section 4 : Paper Information Paper in FS-108BM Finisher (Option) (continued) FS-108BM Finisher Booklet Tray Folding mode: Paper Size : A3, B4, A4R, 8.5"x11"R Paper Weight : 60~90g/m paper (80g/m paper is recommended) Number of Folded Sheet : 3 sheets max. Booklet Tray Capacity : Approx.
Page 50: Paper In Punching Unit (Pu-108) (Option)
Punching Unit PU -108 60 ~ 90g/m Trimmer Unit TU-108 60 ~ 90g/m (200g/m one sheet only) NOTE: Reliability and copy quantity are not guaranteed for all Special papers. Use only paper that is recommended by Konica. 4 - 10...
Page 51: Section 5: Copier Management
Section 5: Copier Management Power Saver Mode Auto Low Power Manual Low Power Auto Shut-Off Manual Shut-Off Entering an EKC Password Weekly Timer Function Timer Interrupt Copier Management Power Saver Weekly Timer...
Page 52: Power Saver Mode
Section 5 : Copier Management Power Saver Mode There are two modes for the Power saver as described below. Low power mode enables you to conserve energy by maintaining a lower fixing temperature during periods of copier inactivity. Shut-off mode conserves even more energy by partially turning OFF the power supply. CAUTION During Power Saver mode the copier is still connected to the mains power supply and power is still applied to certain areas of machine.
Page 53: Manual Low Power
Section 5 : Copier Management Power Saver Mode (Continued) Manual Low Power Press [ POWER SAVER ON/OFF ]. The Low Power Setting Screen will be displayed. Touch YES to activate the Low power mode. Low Power Setting Screen Copier Management Power Saver NOTE: The Manual low power setting can be selected by Key operator.
Page 54: Auto Shut-Off
Section 5 : Copier Management Power Saver Mode (continued) Auto Shut-Off This function automatically shuts off the main power after a specified period of copier inactivity. The Auto shut-off can be set for 30 minutes/ 60 minutes/ 90 minutes/ 120 minutes/ 240 minutes.
Page 55: Entering An Ekc Password
Section 5 : Copier Management Entering an EKC Password An EKC password is required only when the Electronic Key Counter (EKC) feature is activated; a User Password is assigned; and “Enter E.K.C. password” is displayed on the touch screen. Basic Screen Copier Copier Management...
Page 56: Weekly Timer Function
Section 5 : Copier Management Weekly Timer Function When a copier is under control of the weekly timer function, the TIMER indicator on the right side of the control panel is lit. TIMER Important: When the TIMER indicator is lit, the copier will INTERRUPT automatically be turned off.
Page 57 Section 5 : Copier Management Weekly Timer Function (continued) Timer Interrupt (continued) 4 Enter a 1-digit hour (ex. 3 hour is 3) using the keypad on the control panel. (0 ~ 9) 5 Press the [ START PRINT ]. PRINT QUANTITY INTERRUPT Input copy time PROOF COPY...
Page 58: Section 6: Basic Operations
Section 6: Basic Operations How to Make a Basic Copy The Full-Automatic Mode The Basic Screen Copy Mode Copy Density Automatic Exposure (AE) Manual Mode (Lighter, Normal, Darker) Userset Density (USERSET 1, USERSET 2) Density Shift Lens Mode Automatic Paper Selection (APS) Automatic Magnification Selection (AMS) Basic Preset and User Set Ratios...
Page 59: How To Make A Basic Copy
Section 6 : Basic Operations How to Make a Basic Copy The Full-Automatic Mode The Full-Automatic Mode Screen displays only if the setting was made in the Initial Setting Screen of the Key Operator mode (see p. 12-8). The screen displays Full-Automatic setting when power is turned on;...
Page 60 Section 6 : Basic Operations How to Make a Basic Copy (continued) Procedure Set Copying Conditions 1 Close the document feeder securely. 2 Press [ STOP/CLEAR ] to return to the initial status. 3 As required, set the copying conditions. Basic Copy Settings on Basic Screen Copy mode : see p.
Page 61: How To Make A Basic Copy (Continued)
Section 6 : Basic Operations How to Make a Basic Copy (continued) Position Originals ... FACE UP in RADF FACE DOWN on Platen Glass Position original document FACE UP in the document feeder or FACE DOWN on the platen glass. Enter Print Quantity Press the Ten keys to set the desired print quantity.
Page 62: Copy Mode
Section 6 : Basic Operations Copy Mode The Copy Mode key is used to display a selection screen, from which all copy modes can be selected: 1s1, 1s2, 2s1, 2s2. Copy Mode Specifications: Incompatible functions 1s1: Folding/Stapling & Folding/Trimming with Booklet, Chapter; Booklet 1s2: OHP interleave;...
Page 63 Copy Mode (continued) Before selecting the Copy Mode shown on the screen below, read specifications on the previous page and see Section 4 for information on positioning originals. 2-2 Copying Double-sided original Duplex copy 7065 7065 1-2 Copying 7065 7065 7065...
Page 64 Section 6 : Basic Operations Copy Mode (continued) Position Originals ... FACE UP in RADF FACE DOWN on Platen Glass Position original(s) FACE DOWN on the platen glass or FACE UP in the document feeder, as required. Basic Operation Enter Print Quantity Press the Ten keys to set the desired print quantity.
Page 65: Copy Density
Section 6 : Basic Operations Copy Density Automatic Exposure (AE) AE operates with the initial settings. It detects the density of the original image and automatically selects the appropriate exposure for the copy. Manual Mode (Lighter, Normal, Darker) Select manual copy density to adjust exposure (density) when originals are too light or too dark.
Page 66: Userset Density (Userset 1, Userset 2)
Section 6 : Basic Operations Copy Density (continued) Userset Density (USERSET 1, USERSET 2) Output copying samples selected from 16 density levels from LIGHTER to NORMAL, then select the desired exposure and program it as USERSET 1. Similarly, output copying samples selected from 16 density levels from NORMAL to DARKER, then select the desired exposure and program it as USERSET 2.
Page 67 Section 6 : Basic Operations Copy Density (continued) Userset Density (USERSET 1, USERSET 2) (continued) 4 To output the sample sheet of USERSET 1, touch No. 1 1~4 , No. 2 5~8 , No. 3 9~12 , or No. 4 13~16 , then press [ START PRINT ]. If you do not want to change the Userset darker density level, touch Userset lighter and proceed to step 5.
Page 68: Density Shift
Section 6 : Basic Operations Copy Density (continued) Density Shift Density Shift allows the normal range of density settings to be adjusted more towards lighter settings, or more towards the darker settings. It is also possible to set different Density Shifts for each of the density modes (Text/photo, Text, Photo and Increase Contrast).
Page 69 Section 6 : Basic Operations Copy Density (continued) Density Shift (continued) 2 Press [ START PRINT ]. The following message will be displayed. PRINT QUANTITY In Text/Photo mode (P-mode : 5): INTERRUPT Density Shift (Text/Photo) PROOF COPY 3 (0 ~ 5) In Text mode (P-mode : 6): RECALL CLEAR QTY.
Page 70: Lens Mode
Section 6 : Basic Operations Lens Mode Automatic Paper Selection (APS) APS detects the size of originals placed on RADF or the platen glass, and automatically selects and feeds the copy paper of the same size as the original in 1:1 mode or of the appropriate size when magnification ratio is selected at that time.
Page 71: Automatic Magnification Selection (Ams)
Section 6 : Basic Operations Lens Mode (continued) Automatic Magnification Selection (AMS) AMS functions in the Initial setting when Paper Size is selected manually. Incompatible: APS, Change magnification, Program job, Dual page, Non-image area erase, Repeat, AUTO layout, Overlay An appropriate reduction or enlargement ratio will be selected automatically and applied to the image on the paper size.
Page 72: Preset And User Set Ratios
Section 6 : Basic Operations Lens Mode (continued) Preset and User Set Ratios Use the Preset and User Set ratios to increase or decrease magnification in fixed amounts. If required, the six initially set Preset ratios shown below can be adjusted in the Key Operator mode.
Page 73: Zoom Mode
Section 6 : Basic Operations Lens Mode (continued) Zoom Mode Use the Zoom mode to reduce or enlarge the copied original image in 1% increments. Zoom range: 0.33~4.00 Procedure 1 Touch LENS MODE to enter the Magnification Selection Screen. 2 Touch ZOOM to display the Zoom Screen. Full-Automatic Mode Screen Magnification Selection Screen Basic Screen...
Page 74: Vertical/Horizontal Zoom
Section 6 : Basic Operations Lens Mode (continued) Vertical/Horizontal Zoom Use the Vertical/Horizontal zoom mode to reduce or enlarge vertical and horizontal dimensions, independently. Vertical zoom range: 0.33~4.00 Horizontal zoom range: 0.33~4.00 Width Basic The figure shown below is the sample image using the Vertical/Horizontal zoom. Operation Lens Mode Length: 0.50, Width: 0.50...
Page 75 Section 6 : Basic Operations Lens Mode (continued) Vertical/Horizontal Zoom (continued) Procedure 1 Touch LENS MODE to enter the Magnification Selection Screen. 2 Touch Vert/Horiz Zoom to display the Vertical/Horizontal Zoom Screen. Full-Automatic Mode Screen Magnification Selection Screen Basic Screen Vertical/Horizontal Zoom Screen 3 Touch the Vertical arrow key to select a vertical ratio.
Page 76: Paper Size
Section 6 : Basic Operations Paper Size Paper size is used to display the Paper Tray Selection Screen, or reset APS, or select a specific paper tray. When a specific tray is selected, the paper size may require a ratio adjustment.
Page 77: Reserve
Section 6 : Basic Operations Reserve The Reserve function allows you to start printing the next job immediately after the present job is completed. While the first job is printing, you can set up the next job so that the copier reads in the original image(s) and waits until the first printing is completed.
Page 78 Section 6 : Basic Operations Reserve (continued) Set Reserve Job (continued) 2 Touch RESERVE to display the Reserve Setting Screen. 3 Set the desired copying conditions. When the Reserve Setting Screen is displayed, all keys on the LCD and control panel will function for the reserve setting job.
Page 79: Troubleshooting In Reserve Setting
Section 6 : Basic Operations Reserve (continued) Troubleshooting in Reserve Setting Mishandled Paper During the Reserve Setting If a misfeed occurs with the job in progress while you are setting a Reserve job, the SETTING indicator on the screen will change to JAM . Basic Screen If originals in the Reserve job are already scanned when the misfeed occurs, the Reserve job will be performed after the jam is cleared and the cleared job is completed.
Page 80 Section 6 : Basic Operations Reserve (continued) Troubleshooting in Reserve Setting (continued) When Paper is Depleted for the Job in Progress If the paper supply for a job in progress becomes depleted while you are setting a Reserve job, the SETTING indicator on the screen will change to ADD PAPER (blinking). Basic Screen Basic Operation...
Page 81: Status
Section 6 : Basic Operations Status Touch the STATUS key on the Basic Screen to display the Job Status Screen (see below). This screen allows you to confirm machine status for a variety of settings and conditions. Each field is explained in the next page. Touch respective keys on the Job Status Screen to display the following subsequent screens.
Page 82 Section 6 : Basic Operations Status (continued) JOB No. : Displays the No. (1-15) for each job assigned to the machine. During an interrupt copying job, the interrupt icon [ ] will be displayed in this field instead of the number. MODE: Displays the machine’s current mode of operation.
Page 83: Memory Copy
Section 6 : Basic Operations Memory Copy Memory copy allows you to scan multiple originals from the platen glass and/or RADF, then set the desired copy conditions and output the complete set. Platen Memory Copy Use Platen memory copy for originals that cannot be fed through the document feeder due to thickness, size or condition.
Page 84 Section 6 : Basic Operations Memory Copy (continued) Platen Memory Copy (continued) Place/Scan Originals on the Platen Glass ... FACE DOWN 1 Open the document feeder. 2 Place original FACE DOWN on the platen glass, then close the document feeder. IMPORTANT: PLACE AND SCAN THE ORIGINALS IN REGULAR ORDER OF PAGINATION.
Page 85: Radf Memory Copy
Section 6 : Basic Operations Memory Copy (continued) RADF Memory Copy Use this feature to scan more than 50 original into memory from the RADF. Use this function in conjunction with the Reserve function to increase efficiency of the copying job. Specifications for RADF Memory Copy Memory is available to store up to 1,500 pages (with maximum memory fitted) unless memory overflow occurs.
Page 86: Start Copying
Section 6 : Basic Operations Memory Copy (continued) RADF Memory Copy (continued) 2 Press [ STORE ] to scan and store the data into memory. 3 Load the next 50 originals FACE UP on the RADF. 4 Press [ STORE ] to scan and store the data into memory. SPECIAL ORIGINAL 5 Repeat steps 3 and 4 until all the originals are stored.
Page 87: Output Mode For Machine Without Finisher
Section 6 : Basic Operations Output Mode for Machine without Finisher This section describes three output modes for a copier without the Finisher. For the copier with Finisher installed, refer to Section 7: Output Modes. q Sort with normal exit (default) w Sort with alternate exit e Group with normal exit Specifications of Sort with Alternate Exit...
Page 88 Section 6 : Basic Operations Output Mode for Machine without Finisher (continued) Set Copying Conditions 1 Select desired Application functions and Basic copying settings. 2 Return to the Basic Screen. 3 To select Sort with alternate exit, press [ SORT ] to illuminate the LED next to the key.
Page 89 Section 6 : Basic Operations Output Mode for Machine without Finisher (continued) Position Originals ... FACE UP in RADF ... FACE DOWN on the Platen Glass Position originals FACE UP in the document feeder. When using the platen glass and Sort with alternate exit, activate Platen memory.
Page 90: Rotation
Section 6 : Basic Operations Rotation This function allows you to utilize APS or AMS and copy the original size documents described below onto size A4 or B5, irrespective of the copy paper loading direction. By default, Rotation requires APS or AMS to function; however, the key operator may set the function to always function or when APS, AMS or reduce magnification functions.
Page 91: Rotation And Ams
Section 6 : Basic Operations Rotation (continued) Rotation and AMS For example, when size A4 copy paper is loaded landscape in the tray and copier detects that the original is placed portrait, Rotation (if required) rotates the original image by 90 and the copy is made with the appropriate AMS ratio to fit the portrait style of the copy paper.
Page 92: To Release Automatic Rotation
Section 6 : Basic Operations Rotation (continued) To Release Automatic Rotation The copier is initially set to activate the Rotation function automatically. To release automatic Rotation: Press [ ROTATION OFF ] to light the [ ROTATION OFF ] LED. The Rotation function will be cancelled. SPECIAL ORIGINAL APPLICATION CHECK...
Page 93: Check Mode And Proof Copy
Section 6 : Basic Operations Check Mode and Proof Copy Use the Check mode to confirm copying selections before pressing the [ START PRINT ] key. The Check Screen allows you not only to view the current settings but to change or release them directly from the Check mode.
Page 94 Section 6 : Basic Operations Check Mode and Proof Copy (continued) Make a Proof Copy 1 If necessary, press [ PROOF COPY ] on the control panel or touch PROOF COPY on the Check Screen to output a set of sample copy. If only one copied set is needed and the sample set will do for it, press [ STOP/ CLEAR ] to delete the stored data.
Page 95 Section 6 : Basic Operations Check Mode and Proof Copy (continued) Change/Release Settings If you want to change or release any settings, follow the procedure below. To change the settings: 1 Touch the desired copying condition key on the Check Screen to highlight it. The dimmed CHANGE SETTING key will be clear.
Page 96 Section 6 : Basic Operations Check Mode and Proof Copy (continued) To release the settings: 1 Touch the desired original scanning condition key or application function key on the Check Screen to highlight it. The dimmed RELEASE SETTING key will be clear. 2 Touch RELEASE SETTING .
Page 97: Interrupt Mode
Section 6 : Basic Operations Interrupt Mode Use the Interrupt mode to interrupt copying in progress to perform a simple job. When interrupt copying is completed, the settings for the initial job restore automatically and the Basic Screen displays. Press the [ INTERRUPT ] key when the copier is in the following conditions: •...
Page 98 Section 6 : Basic Operations Interrupt Mode (continued) Replace Originals/Set Copying Conditions 1 Remove any document from the platen glass or from the document feeder, if present. 2 Place new original(s) on the platen glass or in the document feeder. 3 The copying settings in Interrupt mode are as follows.
Page 99: Help Mode
Section 6 : Basic Operations Help Mode Use the [ HELP ] key to access information about the current screen mode and to learn about setting procedures. The [ HELP ] key can be pressed from any screen except Job Memory and Key Operator Screens.
Page 100: Using The Multi-Sheet Bypass Tray
Section 6 : Basic Operations Using the Multi-Sheet Bypass Tray The Multi-sheet bypass tray can be used to stack regular 60 ~ 90g/m paper, or it can be used in the single-sheet mode to copy 50g/m thin stock or 170g/m thick stock.
Page 101 Section 6 : Basic Operations Using the Multi-Sheet Bypass Tray (continued) Select Multi-Sheet Bypass Tray Touch PAPER SIZE to display the Paper Tray Selection Screen, and touch the Bypass key to highlight it. Paper Tray Selection Screen Full-Automatic Mode Screen Position Originals ...
Page 102: Section 7: Output Modes
Section 7: Output Modes FS-106 Finisher Specifications FS-108BM Finisher Specifications Non-Sort Mode Using Primary (Main) Tray Sort Mode Using Primary (Main) Tray Staple-Sort Mode Using Primary (Main) Tray Group Mode Using Primary (Main) Tray Output Modes Using Secondary (Sub) Tray Folding, Stapling &...
Page 103: Fs-106 Finisher Specifications
Section 7 : Output Modes FS-106 Finisher Specifications Use only paper that is recommended by Konica and stored under the environmental conditions stated for copy quantity. Special stock is not guaranteed for reliability or copy quality. Multi-sheet bypass tray, Interrupt, and OHP interleaving are incompatible with finisher use.
Page 104: Fs-108Bm Finisher Specifications
Section 7 : Output Modes FS-108BM Finisher Specifications Use only paper that is recommended by Konica and stored under the environmental conditions stated for copy quantity. Special stock is not guaranteed for reliability or copy quality. Multi-sheet bypass tray, Interrupt, and OHP interleaving are incompatible with finisher use.
Page 105 Section 7 : Output Modes FS-108BM Finisher Specifications (continued) Booklet Tray • Folding Mode Paper size: A3, B4, A4R, 8.5"x11"R Paper weight: 60~90g/m ; Special stock (80g/m paper is recommended) Number of Folding sheet: 3 sheets max. Booklet tray capacity: Approx. 100 sheets max. 33 sets max.
Page 106: Non-Sort Mode Using Primary (Main) Tray
Section 7 : Output Modes Non-Sort Mode Using Primary (Main) Tray The Non-sort mode simply means that the offset-stacker finisher modes are not selected. Copies will be stacked upon exit without being offset by sorted sets. With the Primary (main) tray initially selected on the Output Mode Screen, FS-106/FS- 108BM outputs the printed sheets FACE DOWN in the proper order.
Page 107: Sort Mode Using Primary (Main) Tray
Section 7 : Output Modes Sort Mode Using Primary (Main) Tray Use this mode when you want to output multiple copies of the original set, and have each sorted set offset upon exit. The staple mode can be selected with the sort mode. With the Primary (main) tray initially selected on the Output Mode Screen, FS-106/FS- 108BM outputs the printed sheets FACE DOWN in the proper order.
Page 108: Staple-Sort Mode Using Primary (Main) Tray
Section 7 : Output Modes Staple-Sort Mode Using Primary (Main) Tray Use this mode when you want to offset and staple each copied set. Stapling position and number of staples (1 or 2) can be designated on the Staple Position Selection Screen, which is a subsequent screen of the Output Mode Screen.
Page 109 Section 7 : Output Modes Staple-Sort Mode Using Primary (Main) Tray (continued) Procedure 1 Press [ STAPLE SORT ] to select and illuminate the Staple- sort mode. The Staple Position icon will be displayed on the Basic Screen. OUTPUT When not changing the staple position, proceed to step STAPLE SORT SORT Output Mode Screen (FS-106)
Page 110 Section 7 : Output Modes Staple-Sort Mode Using Primary (Main) Tray (continued) Output Mode Screen (FS-108BM) Staple Position Selection Screen (FS-108BM) Output Modes Staple-Sort 2 Press [ OUTPUT ] to display the Output Mode Screen. 3 Touch STAPLE POSITION . The Staple Position Selection Screen will be displayed. 4 Touch the desired key among the eight keys on the screen to select the staple position.
Page 111 Section 7 : Output Modes Staple-Sort Mode Using Primary (Main) Tray (continued) 7 Select additional copying features, as required. 8 Enter desired print quantity. 9 Position originals in the document feeder. When using Memory copy, position original(s) in the document feeder or on the platen glass, and press [ STORE ] to scan. See p.
Page 112: Group Mode Using Primary (Main) Tray
Section 7 : Output Modes Group Mode Using Primary (Main) Tray Use this mode when you want to group together multiple copies of each original, and offset the sets upon exit. Grouped sets cannot be stapled. Paper size: A3, B4, F4, A4R, A4, B5R, B5, A5*, 8.5"x11"R, 8.5"x11" Paper capacity for 80g/m : 500 sheets A5* 2,000 sheets A4R, A4, B5R, B5, 8.5"x11"R, 8.5"x11"...
Page 113: Output Modes Using Secondary (Sub) Tray
Section 7 : Output Modes Output Modes Using Secondary (Sub) Tray In addition to the Primary (main) tray, Finisher FS-106/FS-108BM is equipped with a Secondary (sub) tray that can be selected on the Output Mode Screen. The Secondary (sub) tray provides 4 types of output mode as specified below, also to be specified on the Output Mode Screen.
Page 114 Section 7 : Output Modes Output Modes Using Scondary (Sub) Tray (continued) Procedure 1 Press [ OUTPUT ] to display the Output Mode Screen. 2 Touch SUB TRAY , then touch the desired key(s) on the screen to specify one of the four output modes.
Page 115: Folding, Stapling & Folding And Trimming Modes (Fs-108Bm/Tu-108)
Section 7 : Output Modes Folding, Stapling & Folding and Trimming Modes (FS-108BM/TU-108) The Folding and Stapling & Folding modes are available only when the FS-108BM Finisher option is installed. The Trimming (Folding and Trimming/Stapling & Folding and Trimming) modes are available only when the TU-108 Trimmer unit option is installed on the FS- 108BM Finisher.
Page 116 Section 7 : Output Modes Folding, Stapling & Folding and Trimming Modes (FS-108BM/TU-108) (continued) Incompatible Basic Copying Conditions with Booklet selected: APS, Sort, Staple-sort, Group, Cover sheet feeding, 1s1, 2s1, Alternate exit, Punching Incompatible Original Scanning Conditions with Booklet selected: Resolution (Very high), Mixed Original, Non STD size Incompatible Applications with Booklet selected: Sheet/Cover Insertion, Combination, OHP Interleave, Program Job, Non-image Area Erase, Repeat, Frame/Fold Erasure,...
Page 117 Section 7 : Output Modes Folding, Stapling & Folding and Trimming Modes (FS-108BM/TU-108) (continued) 4 Touch OK on the Output Mode Screen. The Basic Screen will be restored and the Output indicator will light. 5 Select additional copying features, as required. NO COVER SHEET of Booklet is automatically selected.
Page 118: Cover Sheet Feeder (Fs-108Bm With Pi-108)
Section 7 : Output Modes Cover Sheet Feeder (FS-108BM with PI-108) The Cover Sheet Feeder (PI-108) is available as an option on the FS-108BM finisher. Load cover sheet paper into this device and use the sheets as front covers for copied sets output to the Main tray;...
Page 119 Section 7 : Output Modes Cover Sheet Feeder (FS-108BM with PI-108) (continued) Cover Sheet Insert Selection Screen Output Mode Screen 3 Touch MAIN TRAY to highlight it, and then touch COVER SHEET to display the Cover Sheet Insert Selection Screen. 4 Touch FRONT , FRONT+BACK , or BACK to highlight it.
Page 120: Punching Mode (Fs-108Bm/Fs-106 With Pu-108)
Section 7 : Output Modes Punching Mode (FS-108BM/FS-106 with PU-108) The Punching mode is available only when the PU-108 Punching unit option is installed on the FS-108BM/FS-106 finisher. When the Punching mode is selected in combination with any of the Primary (Main) tray output modes, each copied sheet is punched and output to the Primary tray according to the selected output mode.
Page 121 Section 7 : Output Modes Punching Mode (FS-108BM/FS-106 with PU-108) (continued) Output Mode Screen (FS-108BM) Output Mode Screen (FS-106) Punch Position Selection Screen 3 Touch MAIN TRAY to highlight it, and then touch PUNCH to display the Punch Position Selection Screen. 4 Touch the desired punch position key on the screen to highlight it.
Page 122: Manual Stapling (Fs-108Bm)
Section 7 : Output Modes Manual Stapling (FS-108BM) The Manual Stapling function is available only with the Cover Sheet Feeder option (PI- 108) installed on the FS-108BM Finisher. To use this convenient function, simply place a set of paper to be stapled into the cover sheet feeder of the finisher, select the desired staple mode from the manual stapling control panel located on the top of the finisher, then press the Staple Start/Stop button.
Page 123 Section 7 : Output Modes Manual Stapling (FS-108BM) (continued) Procedure 1 Place a set of paper to be stapled into the cover sheet feeder, then align the guide plate. The indicator light of Staple Start/Stop button will turn green. NOTE: Refer to the specifications on previous page for available paper size in each mode.
Page 124: Output Modes
Section 7 : Output Modes Manual Stapling (FS-108BM) (continued) CAUTION When the Booklet tray / Trimmer unit tray capacity is exceeded, the finisher will cease operating. To avoid such trouble, select an appropriate print quantity from the specifications on p. 7-14. CAUTION: When the finisher capacity is exceeded due to the print quantity selected, remove the copied sets as they exit;...
Page 125: Section 8: Original Scanning Condition
Section 8: Original Scanning Condition Original Scanning Condition Menu Resolution (High Quality) High Mode Very High Mode S600 Text/Photo Enhance Original Variety Original Scanning Condition Menu Mixed Original Z-Folded Original Resolution Text/Photo Original Form Enhance Mixed Original Z-Folded Original Original Form Scanning Condition...
Page 126: Original Scanning Condition Menu
Section 8 : Original Scanning Condition Original Scanning Condition Menu When the [ SPECIAL ORIGINAL ] key is pressed, the Original Scanning Condition Screen displays on the touch panel. If one function on the menu is incompatible with another, it will appear dimmed.
Page 127: Resolution (High Quality)
Fewer originals can be copied at one time. Specifications for High Mode Original Scanning Incompatible Basic Copying Conditions: The copying conditions may not function with Condition Menu some combination of copying conditions. Ask your Konica service centre. Incompatible Original Scanning Conditions: None Resolution Incompatible Applications: None Procedure Set Copying Conditions 1 Press [ SPECIAL ORIGINAL ] to display the Original Scanning Condition Screen.
Page 128 Section 8 : Original Scanning Condition Resolution (High Quality) (continued) High Mode (continued) Place Originals ... FACE UP in RADF FACE DOWN on Platen Glass Position original(s) in the document feeder or on the platen glass. Hint: When using the Platen memory copy, press [STORE] to illuminate the Memory copy mode. Position original on the platen glass, and start scanning.
Page 129: Very High Mode
Section 8 : Original Scanning Condition Resolution (High Quality) (continued) Very High Mode Very High resolution is used for high quality photo output, and uses no memory. Specifications for Very High Mode Incompatible Basic Copying Conditions: Using RADF, Alternate exit, Sort, Staple-sort, Folding/Stapling &...
Page 130 Section 8 : Original Scanning Condition Resolution (High Quality) (continued) Very High Mode (continued) Place Originals ... FACE DOWN on Platen Glass Position original(s) on the platen glass. Start Copying Press [ START PRINT ]. To delete the scanned data without printing, press [ STOP/ PRINT QUANTITY INTERRUPT CLEAR ].
Page 131: S600
Section 8 : Original Scanning Condition Resolution (High Quality) (continued) S600 Select S600 to improve the copy image. This mode uses more memory than the normal default mode, so that some copying condition that uses memory might be incompatible or restricted in use.
Page 132 Section 8 : Original Scanning Condition Resolution (High Quality) (continued) S600 (continued) Place Originals ... FACE UP in RADF FACE DOWN on Platen Glass Position original(s) in the document feeder or on the platen glass. Hint: When using the Platen memory copy, press [STORE] to illuminate the Memory copy mode. Position original on the platen glass, and start scanning.
Page 133: Text/Photo Enhance
In cases where the image is light and background is dark, the background will not be changed. Resolution Text/Photo Enhance Original Auto mode Photo mode Konica Corporation Konica Corporation Konica Corporation Konica Corporation Konica Corporation Konica Corporation Konica Corporation Konica Corporation...
Page 134 Section 8 : Original Scanning Condition Text/Photo Enhance (continued) Procedure Set Copying Conditions 1 Press [ SPECIAL ORIGINAL ] to display the Original Scanning Condition Screen. 2 Touch TEXT , PHOTO , or INCREASE CONTRAST , as required. Original Scanning Condition Screen Control Panel SPECIAL ORIGINAL APPLICATION...
Page 135 Section 8 : Original Scanning Condition Text/Photo Enhance (continued) Hint: When using Platen memory copy, position original(s) on the platen glass and press [STORE] to scan. See p. 6-26 ~ p. 6-27. When using RADF memory copy, position original(s) in the document feeder and press [STORE] to scan.
Page 136: Original Variety
Section 8 : Original Scanning Condition Original Variety Mixed Original Use the Mixed original mode with the document feeder or with Memory copy to copy [A3, B4, A4R, A4, B5 and A5* originals mixed], [B4, A4R, B5R, B5 and A5* originals mixed], [A4R, B5R and A5* originals mixed], or [B5R and A5*...
Page 137 Section 8 : Original Scanning Condition Original Variety (continued) Mixed Original (continued) Procedure Set Copying Conditions 1 Press [ SPECIAL ORIGINAL ] to display the Original Scanning Condition Screen. 2 Touch MIXED ORIGINAL . Original Scanning Condition Screen Control Panel SPECIAL ORIGINAL APPLICATION CHECK...
Page 138 Section 8 : Original Scanning Condition Original Variety (continued) Mixed Original (continued) Enter Print Quantity Enter the desired print quantity. To change the print quantity, press [ CLEAR QTY. ] and enter the correct quantity. PRINT QUANTITY NDEM INTER PROOF HELP MORY ESET...
Page 139: Z-Folded Original
Section 8 : Original Scanning Condition Original Variety (continued) Z-Folded Original Use the Z-folded original mode with the document feeder to copy Z-folded originals so as not to cause paper misfeed. Z-folded original Mixed Original Z-Folded Original Specifications for Z-Folded Original Use RADF.
Page 140 Section 8 : Original Scanning Condition Original Variety (continued) Z-Folded Original (continued) Enter Print Quantity Enter the desired print quantity. To change the print quantity, press [ CLEAR QTY. ] and enter the correct quantity. PRINT QUANTITY NDEM INTER PROOF HELP MORY ESET...
Page 141: Original Form
Section 8 : Original Scanning Condition Original Form The copier usually detects the standard size of originals fed through RADF or positioned on the platen glass (STD size mode). Use Non STD size mode to specify the scanning area manually for copying or printing special size originals.
Page 142 Section 8 : Original Scanning Condition Original Form (continued) Place Originals ... FACE UP in RADF FACE DOWN on Platen Glass Position original(s) FACE UP in the document feeder, or FACE DOWN on the platen glass. Start Copying Press [ START PRINT ]. To delete the scanned data without printing, press [ STOP/ PRINT QUANTITY INTERRUPT...
Page 143: Section 9 : Applications
Application Function Menu Sheet/Cover Insertion Section 9 : Applications Chapter Combination Application Function Menu Booklet Sheet/Cover Insertion Interleave Chapter Image Insert Dual Page Combination Program Job Booklet Non-Image Area Erase OHP Interleave Reverse Image Repeat Image Insert Image Frame/Fold Erasure Dual Page AUTO Layout Program Job...
Page 144: Application Function Menu
Section 9 : Applications Application Function Menu When the [ APPLICATION ] key is pressed, the Application Selection Screen displays on the touch panel. If one function on the menu is incompatible with another, it will appear dimmed. When a function is touched, it becomes highlighted. If you touch OK key when a function is highlighted, another screen or two will display to enable you to enter the appropriate settings.
Page 145: Sheet/Cover Insertion
Section 9 : Applications Application Function Menu Sheet/Cover Insertion Sheet/Cover Insertion Use Sheet/Cover Insertion in copy mode or blank mode to insert chapter sheets or separator sheets into the finished set, as well as front and back covers. The default tray for Sheet Insertion is tray 1 .
Page 146 Section 9 : Applications Sheet/Cover Insertion (continued) Insertion Mode This mode is classified as Copy insertion and Blank insertion. The Copy insertion mode copies and inserts plain or coloured sheets from tray 1 at locations designated in the Page Setting Screen. The Blank insertion mode inserts non copied (plain or coloured) sheets from tray 1 at locations designated in the Page Setting Screen (see insertion tray on p.
Page 147 Section 9 : Applications Sheet/Cover Insertion Sheet/Cover Insertion (continued) Basic Functions Combination samples 9 10 9 10 8 9 10 SURVEYOR’S SURVEYOR’S REPORT REPORT SURVEYOR’S SURVEYOR’S REPORT REPORT Originals Copies Originals Copies FRONT COVER COPIED FRONT & BACK COVERS COPIED 9 10 9 10 9 10...
Page 148 Section 9 : Applications Sheet/Cover Insertion (continued) Procedure Load Paper for Insertions and Covers 1 First, load insert sheets into tray 1, and load regular sheets of the same size as those in tray 1 into any of the trays 2 to 5. 2 If covers are required, load 80g/m cover sheets in the Multi-sheet bypass tray.
Page 149 Section 9 : Applications Sheet/Cover Insertion Sheet/Cover Insertion (continued) 5 Select Back Cover Insertion. Touch BACK COPY to insert a copied back cover, or BACK BLANK to insert a blank back cover. To insert a thick paper for the back cover, touch Thick paper . Return to step 4 to select Front Cover Insertion, if desired.
Page 150 Section 9 : Applications Sheet/Cover Insertion (continued) Enter Print Quantity Enter Print Quantity, using keypad. To change the print quantity, press [ CLEAR QTY. ] and enter PRINT QUANTITY NDEM the correct quantity. INTER PROOF HELP MORY ESET START RECALL CLEAR QTY. Position Originals ...
Page 151 Section 9 : Applications Sheet/Cover Insertion Chapter Chapter Chapter is used with RADF in 1s2 or 2s2 mode for the purpose of locating title pages on the right side, rather than reverse side, of a duplex copy. To effectively locate the title page on the right, a blank sheet will be automatically created on the reverse side of a sheet, if required.
Page 152 Section 9 : Applications Chapter (continued) Chapter Insertion Setting No. Screen Control Panel PRINT QUANTITY RECALL CLEAR QTY. 3 Use the keypad on the control panel to enter the page number of each title page. 4 Touch SET . To clear an incorrect entry, touch DELETE or press [ C ] ( CLEAR QTY. ). The insertion location will be deleted.
Page 153 Section 9 : Applications Chapter (continued) Chapter Position Originals ... FACE UP Position originals FACE UP on the document feeder. 50 originals can be set. Hint: When using Platen memory copy, position original(s) on the platen glass and press [STORE] to scan.
Page 154: Combination
Section 9 : Applications Combination Use this function to lay out and copy a fixed number (2, 4, or 8) of pages onto one sheet of copy paper (2 in 1, 4 in 1, or 8 in 1). Specifications for Combination Scan and store originals into memory.
Page 155 Section 9 : Applications Combination (continued) Combination Layout Original 2 in 1 4 in 1 8 in 1 2 in 1 4 in 1 8 in 1 Portrait type Landscape type 4 Touch OK to return to the Application Selection Screen. 5 Select additional copying features, as desired.
Page 156 Section 9 : Applications Combination (continued) Position Originals ... FACE UP Place original(s) FACE UP in the document feeder. Hint: When using Platen memory copy, position original(s) on the platen glass and press [STORE] to scan. See p. 6-26 ~ p. 6-27. When using the RADF memory copy, position original(s) in the document feeder and press [STORE] to scan.
Page 157: Booklet
Section 9 : Applications Booklet Use the Booklet to make a multiple page signature booklet on both sides of A3, B4, A4R, Combination B5R, or 8.5"x11"R paper from tray 1, 2, 3, 4, or 5. Original images are scanned into memory and automatically arranged in booklet format in correct order.
Page 158 Section 9 : Applications Booklet (continued) Procedure Load Copy Paper Load A3, B4, A4R, B5R, or 8.5"x11"R copy paper in a tray. When selecting cover sheet mode ( COVER WITH COPY SHEET or COVER WITH BLANK SHEET ), load the same size paper in Tray 1. NOTE: Do not load thick paper in Tray 1;...
Page 159 Section 9 : Applications Booklet (continued) 7 Select the copy mode. (1) Touch COPY MODE to display the Copy Mode Screen. (2) Select 1-2 or 2-2 . Booklet (3) Touch OK to return to the Basic Screen. 8 AMS is selected automatically. When selecting any tray other than the tray that is set and displayed on the Basic Screen, touch PAPER SIZE .
Page 160 Section 9 : Applications Booklet (continued) Enter Print Quantity Enter Print Quantity, using keypad. To change the print quantity, press [ CLEAR QTY. ] and enter PRINT QUANTITY NDEM INTER the correct quantity. PROOF HELP MORY ESET RECALL CLEAR QTY. START Position Originals ...
Page 161 Section 9 : Applications Booklet (continued) Start Copying Press [ START PRINT ]. Booklet NOTE: PRINT QUANTITY CLOSE THE TRIMMER STACKER COVER; otherwise the INTERRUPT machine cannot print/copy. DO NOT OPEN THE TRIMMER STACKER COVER DURING PROOF COPY PRINTING/COPYING; otherwise the machine is stopped and paper misfeed occurs.
Page 162: Ohp Interleave
Section 9 : Applications OHP Interleave Use the OHP interleave function in 1s1 or 2s1 mode to copy onto overhead projection transparencies, and output a blank or copied interleaf sheet with each copied transparency. In the blank mode, a blank interleaf sheet is output with each transparency to keep the film material from sticking together.
Page 163 Section 9 : Applications OHP Interleave (continued) Set Copying Conditions 1 Press [ APPLICATION ] to display the Application Selection Screen. 2 Touch OHP Interleave to display the OHP Interleave Screen. Application Selection Screen OHP Interleave Screen Interleave 3 Touch Blank sheet Interleaving or Copy sheet Interleaving , unless it is already highlighted.
Page 164 Section 9 : Applications OHP Interleave (continued) Start Copying Press [ START PRINT ]. PRINT QUANTITY After copying is completed, touch OHP Interleave on the INTERRUPT Application Selection Screen or press [ AUTO RESET ] to release the mode and reset the machine. PROOF COPY RECALL CLEAR QTY.
Page 165: Image Insert
Section 9 : Applications Image Insert Use the Image insert mode to combine images scanned from the platen glass, such as photos, paste-ups, newspaper articles, graphs, etc., with images scanned from the document feeder. Then, output the combined images as a finished set. The selected copy paper size is determined by the size of originals loaded in the document feeder.
Page 166 Section 9 : Applications Image Insert (continued) Set Copying Conditions 1 Press [ APPLICATION ] to display the Application Selection Screen. 2 Touch Image Insert to display the Image Insertion No. Setting Screen. Application Selection Screen Image Insertion No. Setting Screen 3 Use the keypad to enter the page numbers for up to 15 insertion locations, touching SET after each entry.
Page 167 Section 9 : Applications Image Insert (continued) RADF: Place/Scan Originals ... FACE UP Scan the document feeder images. (1) Position originals FACE UP in the document feeder. (2) Press [ STORE ] to scan originals. Image Insert SPECIAL ORIGINAL APPLICATION CHECK ROTATION OFF JOB ME...
Page 168 Section 9 : Applications Image Insert (continued) Start Copying Press [START PRINT ]. To delete the scanned data without printing, press [ STOP/ PRINT QUANTITY CLEAR ]. INTERRUPT To reset the copying conditions to the initial setting, press [ STOP/CLEAR ] then [ AUTO RESET ]. PROOF COPY After copying is completed, touch Image Insert on the Application Selection Screen or press [ AUTO RESET ] to...
Page 169: Dual Page
Section 9 : Applications Dual Page The Dual Page mode performs image division on the original image. Use Dual Page in 1s1 or 1s2 mode to copy an open book or a A3/B4 size sheet onto two A4/B5 sheets. If you select another paper size, image division will perform incorrectly. The following three modes can be selected from the Dual Page Screen.
Page 170 Section 9 : Applications Dual Page (continued) Procedure Set Copying Conditions 1 Press [ APPLICATION ] to access the Application Selection Screen. 2 Touch Dual Page to enter the Dual Page Screen. AUTO layout and Non-image area erase will be automatically selected. Dual Page Screen Application Selection Screen 3 Touch facing pages , front cover + facing pages , or front/back + facing pages , as...
Page 171 Section 9 : Applications Dual Page (continued) Place/Scan Originals on the Platen Glass ... FACE DOWN 1 Position the open book or sheet on the platen glass in the right rear corner, aligning the edge with the right measuring guide. To output the set in the same order as the originals, start scanning from the first page.
Page 172: Program Job
Program Job Specifications Scan and store originals into memory, then print all the pages collectively. NOTE: Should memory overflow occur frequently, it is recommended that you contact your Konica service centre to extend the memory capacity in your machine. Use Memory copy.
Page 173 Section 9 : Applications Program Job (continued) Position Originals ... FACE UP in RADF FACE DOWN on Platen Glass 1 Position the first set of original(s) to be scanned in the document feeder or on the platen glass, then press [ STORE ] to scan. 2 Touch PAPER SIZE on the Basic Screen to change the tray source, if desired.
Page 174: Non-Image Area Erase
Section 9 : Applications Non-Image Area Erase The Non-image area erase mode is used to copy non standard or special originals, such as books, magazines, paste-ups, graphs, thick or thin materials, etc. from the platen glass. The exposed glass area outside the borders of the original will not be copied. This mode helps to preserve the condition of originals;...
Page 175 Section 9 : Applications Non-Image Area Erase (continued) Procedure Set Copying Conditions 1 Press [ APPLICATION ] to display the Application Selection Screen. 2 Touch Non-Image Area Erase . The incompatible function keys will be dimmed to show inactivity. Application Selection Screen Non-Image Area Erase 3 Select additional copying features, as desired.
Page 176 Section 9 : Applications Non-Image Area Erase (continued) Start Copying Press [ START PRINT ]. To delete the scanned data without printing, press [ STOP/ PRINT QUANTITY CLEAR ]. INTERRUPT To reset the copying conditions to the initial setting, press PROOF COPY [ STOP/CLEAR ] then [ AUTO RESET ].
Page 177: Reverse Image
Section 9 : Applications Reverse Image Use Reverse image to reverse the image from black-on-white to white-on-black, and vice versa. Specifications for Reverse Image RADF APS detects size: A3, B4, F4, A4R, A4, B5R, B5, A5* , 8.5"x11" Platen APS detects size: A3, B4, F4, A4R, A4, B5R, B5, A5* , 8.5"x11"R, 8.5"x11"...
Page 178 Section 9 : Applications Reverse Image (continued) Enter Print Quantity Enter Print Quantity, using keypad. PRINT QUANTITY NDEM To change the print quantity, press [ CLEAR QTY. ] and enter INTER the correct quantity. PROOF HELP MORY ESET RECALL CLEAR QTY. START Position Originals ...
Page 179: Repeat Image
Section 9 : Applications Repeat Image Use Repeat image to create labels, business cards, tickets, etc., by repeating the selected image down the page. Manual Setting mode Repeat the selected image area of 10mm ~ 300mm in both vertical and horizontal widths measured from the rear right corner of the A3 original area indicated on the right edge of the platen glass.
Page 180 Section 9 : Applications Repeat Image (continued) Procedure Set Copying Conditions 1 Press [ APPLICATION ] to display the Application Selection Screen. 2 Touch Repeat to display the Repeat Mode Selection Screen. Application Selection Screen Repeat Mode Selection Screen 3 To select the Manual setting mode: (1) Touch Vertical/Horizontal .
Page 181 Section 9 : Applications Repeat Image (continued) Position Originals ... FACE DOWN Position original(s) FACE DOWN on the platen glass. IMPORTANT: DO NOT CLOSE THE DOCUMENT FEEDER. Manual setting mode Auto setting mode Verti. width Horiz. width Repeat Image Hint: When using Platen memory copy, 1-2 mode can be selected.
Page 182: Frame/Fold Erasure
Section 9 : Applications Frame/Fold Erasure Use Frame/Fold Erasure to eliminate black copy marks along borders. Specifications for Frame/Fold Erasure Frame erasure amount: 1~15 mm in 1 mm increments Initial frame erasure value: 10 mm Fold erasure amount: 1~30 mm in 1 mm increments Initial fold erasure value: 10 mm Frame erasure original size: A3, B4, F4, A4R, A4, B5R, A5* , 8.5"x11"R...
Page 183 Section 9 : Applications Frame/Fold Erasure (continued) Procedure Set Copying Conditions 1 Press [ APPLICATION ] to enter the Application Selection Screen. 2 Touch Frame/Fold Erasure to display the Frame/Fold Erasure Selection Screen. Application Selection Screen Frame/Fold Erasure Selection Screen Frame/Fold Erasure 3 Touch Frame Erasure , then use arrows to select the desired frame erasure amount,...
Page 184 Section 9 : Applications Frame/Fold Erasure (continued) Position Originals ... FACE UP in RADF FACE DOWN on Platen Glass Position original(s) FACE UP in the document feeder or FACE DOWN on the platen glass. Hint: When using Platen memory copy, position original(s) on the platen glass and press [STORE] to scan.
Page 185: Auto Layout
Section 9 : Applications AUTO Layout Use this function to detect the image area of the original on the platen glass and centre the whole image on the copy paper. Specifications for AUTO Layout Copy mode is automatically set to 1s1; 1s2 mode is also available, but only when using the Auto Layout function in combination with Memory copy.
Page 186 Section 9 : Applications AUTO Layout (continued) Procedure Set Copying Conditions 1 Press [ APPLICATION ] to display the Application Selection Screen. 2 Touch AUTO Layout . The incompatible function keys will be dimmed to show inactivity. Application Selection Screen 3 Select additional copying features, as desired.
Page 187 Section 9 : Applications AUTO Layout (continued) Start Copying Press [ START PRINT ]. To delete the scanned data without printing, press [ STOP/ PRINT QUANTITY CLEAR ]. INTERRUPT To reset the copying conditions to the initial setting, press [ STOP/CLEAR ] then [ AUTO RESET ]. PROOF COPY After copying is completed, touch AUTO Layout on the Application Selection Screen or press [ AUTO RESET ] to...
Page 188: Thin/Thick Paper
Section 9 : Applications Thin/Thick Paper Use this function to select the appropriate mode when the original paper is thin or thick. Specifications for Thin/Thick Paper Thin/Thick paper source: Multi-sheet bypass tray (single feed mode) RADF APS detects size: A3, B4, F4, A4R, A4, B5R, B5, A5* , 8.5"x11"...
Page 189 Section 9 : Applications Thin/Thick Paper (continued) Enter Print Quantity Enter Print Quantity, using keypad. To change the print quantity, press [ CLEAR QTY. ] and enter PRINT QUANTITY NDEM the correct quantity. INTER PROOF HELP MORY ESET START RECALL CLEAR QTY. Position Originals ...
Page 190: Image Shift
Section 9 : Applications Image Shift Use Image shift to create a new binding margin on originals copied in the 1-1 or 2-2 mode, or adjust existing margins on originals copied in the 1-2 or 2-1 mode. If image loss is likely, select the Reduce &...
Page 191 Section 9 : Applications Image Shift (continued) Procedure Set Copying Conditions 1 Select 1s1, 1s2, 2s2 or 2s1 copy mode from the Basic Screen, as required. 2 Press [ APPLICATION ] to enter the Application Selection Screen. 3 Touch Image Shift to display the Image Shift Selection Screen. Application Selection Screen when Application Selection Screen when selecting Reduce &...
Page 192 Section 9 : Applications Image Shift (continued) Enter Print Quantity Enter Print Quantity, using keypad. To change the print quantity, press [ CLEAR QTY. ] and enter PRINT QUANTITY NDEM the correct quantity. INTER PROOF HELP MORY ESET RECALL CLEAR QTY. START Position Originals ...
Page 193: Overlay
Section 9 : Applications Overlay Use this function to scan an image, then overlay the image onto each page copied in the job. Specifications for Overlay Scan and store originals into memory. Memory copy is available. APS and AMS are automatically released. Magnification is initially set 1:1, though changeable.
Page 194 Section 9 : Applications Overlay (continued) 3 Select additional copying features, as desired. 4 Touch OK to complete the setting and return to the Basic Screen. 5 APS and AMS will be released. Set the desired Copy mode, Copy density, Lens mode, and Paper size on the Basic Screen.
Page 195 Section 9 : Applications Overlay (continued) 3 The second and subsequent pages are to be overlaid in printing. Place them in the document feeder or on the platen glass, then press [ STORE ]. IMPORTANT: PLACE AND SCAN THE ORIGINALS IN REGULAR ORDER OF PAGINATION.
Page 196: Section 10: Job Memory
Section 10: Job Memory Job Store Job Recall Job Memory Form Job Store Job Recall Job Memory Form Memory...
Page 197: Job Store
Section 10 : Job Memory Job Store Use Job Store to store up to 15 frequently-used copying jobs, which can be recalled at any time. The stored jobs can be given alphabetical names. All copying functions can be selected Interrupt mode cannot be used while in Job Memory Procedure 1 Make job selections from the Basic Screen, Application Selection Screen, Original Scanning Condition Screen and/or Output Selection Screen.
Page 198 Section 10 : Job Memory Job Store (continued) 5 When the Job No. Selection Screen is displayed, touch one of the keys numbered from 1~15 to store the job under that number. Arrow keys can be used to scroll through the 15 job numbers. The selected number key will be highlighted. If you wish to cancel this selection, touch CANCEL to restore the Basic Screen, which displays the settings for the job.
Page 199: Job Recall
Section 10 : Job Memory Job Recall Use Job Recall to recall jobs that are already stored in Job Memory. Interrupt mode cannot be used while in Job Memory Procedure 1 Place original(s) as required for the job you are about to recall. 2 Press [ JOB MEMORY ] to display the Job Store/Recall Selection Screen.
Page 200 Section 10 : Job Memory Job Recall (continued) 5 Touch JOB CHECK . The Job Recall Check Screen displays to enable you to review the settings. Touching CANCEL on the Job Recall Check Screen returns to the Job No. Selection Screen. Job Recall Check Screen Job No.
Page 201: Job Memory Form
Section 10 : Job Memory Job Memory Form Make a copy of this form to record frequently-used copy jobs stored in Job Memory. Update the information when changes are made. Make additional copies, as needed. JOB NUMBER/NAME JOB DESCRIPTION 10 - 6...
Page 202: Section 11: Tandem Mode
Section 11: Tandem Mode Operation in Tandem Mode To Stop Scanning/Printing Troubleshooting T andem Mode...
Page 203 The copier with [MODE] pressed will be the primary (master) copier. Select the copying conditions and scan originals on the primary copier. The 7065 is provided with an Allocation recovery mode, which functions when trouble occurs in either the primary or secondary copier. This allows the trouble-free copier to complete the job.
Page 204 Section 11 : Tandem Mode Operation in Tandem Mode (continued) 2 When [ MODE ] is pressed, the following icons display on the Basic Screen of both copiers to indicate that the two units are ready to work in tandem mode. Basic Screen (secondary copier) Basic Screen (primary copier) NOTE:...
Page 205 Section 11 : Tandem Mode Operation in Tandem Mode (continued) Position Originals ... FACE UP in RADF FACE DOWN on Platen Glass Position original(s) FACE UP in the document feeder or FACE DOWN on the platen glass of the primary copier. Hint: In Tandem mode copying, Platen memory copy or RADF memory copy is also available.
Page 206: To Stop Scanning/Printing
Section 11 : Tandem Mode To Stop Scanning/Printing To stop scanning: Press [ STOP/CLEAR ] on the control panel of the primary TIMER copier. The scanning job will stop and the tandem mode NTITY INTERRUPT will be released. POWER SAV ON / OFF PROOF COPY To stop printing:...
Page 207: Key Operator Mode
Section 12 : Key Operator Mode To the Key Operator How to Access the Key Operator Mode Function Menu Map Initial Setting Mode [1] How to Access the Initial Setting Mode To the Key Copy Mode [1] Operator Copy Density [2] Function Lens Mode [3] Menu Map...
Page 208 Section 12 : Key Operator Mode To the Key Operator The key operator is trained to handle all special key operator functions that are not accessible to the general user, such as monitoring overall copier activity, machine performance, and service information; modifying machine settings; and controlling user activity, for billing purposes.
Page 209: How To Access The Key Operator Mode
Section 12 : Key Operator Mode To the Key Operator (continued) How to Access the Key Operator Mode Procedure 1 First, be sure the copier power switch is OFF. 2 Then, turn power back ON whilst pressing [ HELP ]. The Key Operator Password Entry Screen displays when the 4-digit key operator password is set by service.
Page 210: Function Menu Map
Section 12 : Key Operator Mode Function Menu Map FUNCTION MENU SUB FUNCTION MENU AND SETTING OPTIONS [1] Initial setting [1] Copy mode: [RADF; 1s1; 1s2; 2s2; 2s1] [2] Copy density: [AE; manual] [3] Lens mode: [AMS; ratio 0.33~4.00] [4] Paper tray: [APS; trays 1, 2, 3, 4, 5, or Multi-sheet bypass tray] [5] Output: [sort;...
Page 211 Section 12 : Key Operator Mode Function Menu Map (continued) FUNCTION MENU SUB FUNCTION MENU AND SETTING OPTIONS [9] Memory switch [1] Auto reset timer [2] AUTO RESET key function [3] RADF-Original effect [4] Erasure outside area of original [5] RADF frame erasure selection [6] Automatic tray switching Function [7] Platen APS...
Page 212: Initial Setting Mode [1]
Section 12 : Key Operator Mode Initial Setting Mode [1] Initial settings are the settings that display automatically when the copier is powered on, when Auto/Reset timer is operated, or when [AUTO RESET] key is pressed. These settings can be changed by the key operator, as shown in this section. Initially, i.e., at installation, the Basic Screen displays the following condition to meet Energy Star requirements: Initial Setting...
Page 213: How To Access The Initial Setting Mode
Section 12 : Key Operator Mode Initial Setting Mode [1] (continued) How to Access the Initial Setting Mode Key Operator Mode Screen Initial Setting Menu Screen Initial Setting Mode Procedure 1 From power off condition: Turn the copier power switch ON, while pressing [ HELP ]. If a 4-digit key operator password is set by service, the Key Operator Password Entry Screen is displayed.
Page 214: Copy Mode [1]
Section 12 : Key Operator Mode Initial Setting Mode [1] (continued) Copy Mode [1] Set Copy mode to occur after power on or after Auto/Reset occurs. Setting options: RADF; 1s1; 1s2; 2s2; 2s1 Initial Setting Menu Screen Copy Mode Initial Setting Screen Procedure 1 While pressing [ HELP ], turn power ON.
Page 215: Copy Density [2]
Section 12 : Key Operator Mode Initial Setting Mode [1] (continued) Copy Density [2] Set Copy density to be effective after power on or after Auto/Reset occurs. Setting options: AE; manual Increase Contrast cannot be set as an initial condition Initial Setting Menu Screen Copy Density Initial Setting Screen Initial...
Page 216: Lens Mode [3]
Section 12 : Key Operator Mode Initial Setting Mode [1] (continued) Lens Mode [3] Set the Lens mode ratio you initially want to display after the user turns the power on or after Auto/Reset restores the Initial settings. NOTICE: This setting should not conflict with the Initial setting for Paper Tray. For example, if APS is selected for the initial paper tray setting, a ratio setting other than AMS will be ignored.
Page 217: Paper Tray [4]
Section 12 : Key Operator Mode Initial Setting Mode [1] (continued) Paper Tray [4] Set paper tray priority to be in effect after power is turned on or after Auto/Reset occurs. This function sets tray priority, not paper size priority. Therefore, if paper size is changed in the tray, the tray will still remain the priority tray.
Page 218: Output [5]
Section 12 : Key Operator Mode Initial Setting Mode [1] (continued) Output [5] Set initial Output mode of the Finisher to be effective after power is turned on or after Auto/ Reset occurs. Setting options: Sort; group; staple-sort Initial Setting Menu Screen Output Mode Initial Setting Screen Procedure 1 While pressing [ HELP ], turn power ON.
Page 219: Staple [6]
Section 12 : Key Operator Mode Initial Setting Mode [1] (continued) Staple [6] Set the stapling position in the Staple-sort mode of the Finisher, to be effective after power is turned on or after Auto/Reset occurs. The Finish setting is available even if the copier is not mounted with a Finisher, or the Staple-sort mode is not selected as an initial setting of the Output mode.
Page 220: Image Scan [7]
Section 12 : Key Operator Mode Initial Setting Mode [1] (continued) Image Scan [7] Set one of the three Image scan mode after power is turned on or after Auto/Reset occurs. NOTICE: Selecting Very high mode as initial setting will drastically affect many other copying functions that can be selected after power is turned on or after Auto/Reset occurs.
Page 221: Lens Mode Ratio [2]
Section 12 : Key Operator Mode Lens Mode Ratio [2] USERSET ratios are used to reduce and enlarge the original image to accommodate copy paper size, and are available when Lens Mode is selected from the Basic Screen. These ratios may be changed by the key operator as shown below. Setting options: User Set Key Operator Mode Screen Lens Mode Ratio Setting Screen...
Page 222: Ekc (Electronic Key Counter) [3]
Section 12 : Key Operator Mode EKC (Electronic Key Counter) [3] This function can only be accessed by the key operator after a 8-digit EKC master key code is entered. The Electronic Key Counter allows you to monitor all copying activity by controlling EKC password accounts.
Page 223: How To Access The Ekc Setting Mode
Section 12 : Key Operator Mode EKC (Electronic Key Counter) [3] (continued) How to Access the EKC Setting Mode Key Operator Mode Screen EKC Master Key Code Screen EKC Setting Menu Screen Procedure 1 While pressing [ HELP ], turn power ON. Enter a 4-digit key operator password, then touch OK to display the Key Operator Mode Screen.
Page 224: Entering And Amending Passwords/User Name [1]
Section 12 : Key Operator Mode EKC (Electronic Key Counter) [3] (continued) Entering and Amending Passwords/User Name [1] Create up to 256 individual EKC passwords, from 00000~99999. Use the following procedure to create new or change existing EKC passwords. EKC Password No.: Password No. from 000~255, designated by key operator. EKC Password: Unique 5-digit numeric code programmed by key operator for user.
Page 225 Section 12 : Key Operator Mode EKC (Electronic Key Counter) [3] (continued) Entering and Amending Passwords/User Name [1] (continued) 4 Touch [1] Entering and amending Passwords/User name to display the Input Password Screen. 5 Set No. key will be highlighted, enabling you to immediately enter an EKC password 6 Enter a 3-digit EKC password No.
Page 226: Entering Account Limits [2]
Section 12 : Key Operator Mode EKC (Electronic Key Counter) [3] (continued) Entering Account Limits [2] Use this setting to limit copy count to a maximum of 999,999 copies for each EKC password. EKC Setting Menu Screen Set No. Screen Procedure 1 While pressing [ HELP ], turn power ON.
Page 227: Resetting The Accounts [3]
Section 12 : Key Operator Mode EKC (Electronic Key Counter) [3] (continued) Resetting the Accounts [3] Reset EKC count of individual EKC password Nos. or reset the count for all EKC password Nos. Setting options: Reset Individual Counters or Reset All Counters EKC Setting Menu Screen Reset EKC Count Screen Reset Individual Counters Screen...
Page 228 Section 12 : Key Operator Mode EKC (Electronic Key Counter) [3] (continued) Resetting the Accounts [3] (continued) 5 Options: Touch Reset individual or Reset all counters . To reset individual counters; (1) Touch Reset individual to display the Reset Individual Counters Screen. (2) Use keypad or arrows to enter the desired EKC password No.
Page 229: Switching The Ekc On Or Off [4]
Section 12 : Key Operator Mode EKC (Electronic Key Counter) [3] (continued) Switching the EKC On or Off [4] Use this function to turn EKC On or Off. EKC Setting Menu Screen EKC On/Off Setting Screen Procedure 1 While pressing [ HELP ], turn power ON. Enter a 4-digit key operator password, then touch OK to display the Key Operator Mode Screen.
Page 230: Select Effect Of Reaching The Copy Limit [5]
Section 12 : Key Operator Mode EKC (Electronic Key Counter) [3] (continued) Select Effect of Reaching the Copy Limit [5] Use this function to select whether the copier will stop when the count limit is reached, or if the copier will complete the copy job before stopping when reaching maximum copy count.
Page 231: Data Printing Mode
Section 12 : Key Operator Mode EKC (Electronic Key Counter) [3] (continued) Data Printing Mode Use this function to print the following three types of data for confirmation. Data options: copy quantity for each password, copy limit for each password, copy quantity for each paper size Procedure 1 While pressing [P] and [9].
Page 232: Lock/Delete Job Memory [4]
Section 12 : Key Operator Mode Lock/Delete Job Memory [4] Use this function to lock or delete a Job that has been programmed. A locked Job is indicated by a lock icon on the job number of the Job Memory Lock Screen.
Page 233 Section 12 : Key Operator Mode Lock/Delete Job Memory [4] (continued) Procedure 1 While pressing [ HELP ], turn power ON. Enter a 4-digit key operator password, then touch OK to display the Key Operator Mode Screen. (See note.) 2 Touch [4] Lock/delete Job memory to display the Job Memory Menu Screen. To lock a job memory;...
Page 234: Paper Type [5]
Section 12 : Key Operator Mode Paper Type [5] Use this function to indicate a specific paper type in the Paper Tray Selection Screen and the lower message area on the Basic Screen . This is especially useful when special paper is used on a regular basis and is always placed in a specific paper tray.
Page 235: Control Panel Contrast [6]
Section 12 : Key Operator Mode Control Panel Contrast [6] Use this feature to adjust the level of brightness of the touch screen portion of the control panel. Select Dimmer to make the touch screen contrast dimmer than currently displayed. Select Brighter to make the touch screen contrast brighter than currently displayed.
Page 236: Key Operator Telephone Number [7]
Section 12 : Key Operator Mode Key Operator Telephone Number [7] Use this screen to enter the extension number of the key operator which is indicated on the Basic Help Screen. Setting options: 5-digit key operator telephone extension Key Operator Mode Screen Key Operator Tel.
Page 237: Weekly Timer [8]
Section 12 : Key Operator Mode Weekly Timer [8] This function can be accessed only by the key operator after a unique 4-digit Weekly timer master key code is entered. The Weekly Timer is a copier management function that shuts down power to the machine on a daily or hourly basis, and can be programmed specifically for lunch breaks, weekends and holidays, or any time the copier is not required.
Page 238: How To Access The Weekly Timer Setting Mode
Section 12 : Key Operator Mode Weekly Timer [8] (continued) How to Access the Weekly Timer Setting Mode Key Operator Mode Screen Weekly Timer Master Key Code Screen Weekly Timer Setting Menu Screen Procedure 1 While pressing [ HELP ], turn power ON. Enter a 4-digit key operator password and touch OK to display the Key Operator Mode Screen.
Page 239: Weekly Timer On/Off Setting [1]
Section 12 : Key Operator Mode Weekly Timer [8] (continued) Weekly Timer On/Off Setting [1] Weekly Timer Setting Menu Screen Weekly Timer ON/OFF Setting Screen Procedure 1 While pressing [ HELP ], turn power ON. Enter a 4-digit key operator password and touch OK to display the Key Operator Mode Screen.
Page 240: Summer Time Setting [2]
Section 12 : Key Operator Mode Weekly Timer [8] (continued) Summer Time Setting [2] Weekly Timer Setting Menu Screen Summer Time Setting Screen Procedure 1 While pressing [ HELP ], turn power ON. Enter a 4-digit key operator password and touch OK to display the Key Operator Mode Screen.
Page 241: Date & Time Setting [3]
Section 12 : Key Operator Mode Weekly Timer [8] (continued) Date & Time Setting [3] Weekly Timer Setting Menu Screen Date & Time Setting Screen Date & Time Input Screen Weekly Timer Procedure 1 While pressing [ HELP ], turn power ON. Enter a 4-digit key operator password and touch OK to display the Key Operator Mode Screen.
Page 242: Timer Setting [4]
Section 12 : Key Operator Mode Weekly Timer [8] (continued) Timer Setting [4] Use the Timer Setting to set the On/Off times in hours and minutes for each day of the week or set the Block time for the entire week, i.e., the same On/Off time for each day. Weekly Timer Setting Menu Screen Timer Setting Screen Block Timer Setting Screen...
Page 243 Section 12 : Key Operator Mode Weekly Timer [8] (continued) Timer Setting [4] (continued) 4 When the screen is displayed, the hour section of ON-hour of Monday is highlighted. Input the hour using touch screen keypad, and touch SET . (Setting example: 6 p.m. is 18.) Touching SET repeatedly will shift the input section from Monday ON-hour, Monday ON-minute, Monday OFF-hour, Monday OFF-minute, Tuesday ON-hour e.g.
Page 244: Timer Action On/Off Setting [5]
Section 12 : Key Operator Mode Weekly Timer [8] (continued) Timer Action On/Off Setting [5] Use the Timer action to set the On/Off condition of the copier for a given month. Set the On-Off condition for specific days; or Block, for all Mondays through Sundays of the given month.
Page 245 Section 12 : Key Operator Mode Weekly Timer [8] (continued) Timer Action On/Off Setting [5] (continued) 5 To Blockly set the on/off data for the entire month by the day of the week, touch Block setting by day of the week to display the Block Timer Action On/Off Setting Screen.
Page 246: Lunch Hour Off Setting [6]
Section 12 : Key Operator Mode Weekly Timer [8] (continued) Lunch Hour Off Setting [6] Weekly Timer Setting Menu Screen Lunch Hour Off Setting Screen Procedure 1 While pressing [ HELP ], turn power ON. Enter a 4-digit key operator password and touch OK to display the Key Operator Mode Screen.
Page 247: Timer Interrupt Password Setting [7]
Section 12 : Key Operator Mode Weekly Timer [8] (continued) Timer Interrupt Password Setting [7] Use the Timer Interrupt Password Setting mode to establish a 4-digit password requirement for using Timer Interrupt. The default password of 0000 allows the timer function to be interrupted without the requirement for password entry.
Page 248: Memory Switch [9]
Section 12 : Key Operator Mode Memory Switch [9] This function allows you to change the Memory Settings listed below. Underlined settings indicate factory settings. See pp. 12-44~12-46 for details on Memory Settings. SW No. Item Setting (default is underlined) No.01: Auto reset timer OFF/ 30sec./ 60 sec./ 90 sec./ 120 sec./150 sec./ 180 sec./ 210 sec./ 240 sec./ 270 sec./...
Page 249 Section 12 : Key Operator Mode Memory Switch [9] (continued) Key Operator Mode Screen Memory Switch Screen Procedure 1 While pressing [ HELP ], turn power ON. Enter a 4-digit key operator password and touch OK to display the Key Operator Mode Screen. (See note.) 2 Touch [9] Memory switch .
Page 250 Section 12 : Key Operator Mode Memory Switch [9] (continued) The following functions can be provided by the Memory switch settings. [1] Auto reset timer Set the reset interval starting from the completion of a copying job until the machine returns to the initial condition.
Page 251 Section 12 : Key Operator Mode Memory Switch [9] (continued) [11] ATS/APS switch (Tray 3) When this function is OFF, the machine will not switch to Tray 3 even if ATS is ON. Likewise, when this function is OFF, Tray 3 is not automatically selected even if Platen APS or RADF-APS (Memory Switch 7 or 8) is ON.
Page 252 Section 12 : Key Operator Mode Memory Switch [9] (continued) [23] Rotation Select to activate, activate only when the APS/AMS functions, or activate the Rotation only when the APS/AMS/reduce functions. [24] 1 SHOT indication time Select the SHOT indication time function. [25] Power save screen Select the screen to display when pressing the [ POWER SAVER ON/OFF ] key.
Page 253: Control Panel Adjustment [10]
6 If the coordinates fall out of the range of the standard value in step 4, or the buzzer tone does not sound in step 5, please contact Konica service centre. 7 Turn power OFF.
Page 254: Auto Low Power/Auto Shut Off [11]
Section 12 : Key Operator Mode Auto Low Power/Auto Shut Off [11] Select the interval of time that must elapse before Auto Low Power and Auto Shut Off become activated. Or, select the Auto Shut Off function to On or Off. Setting options: See list below Key Operator Mode Screen 1 Key Operator Mode Screen 2...
Page 255 Section 12 : Key Operator Mode Auto Low Power/Auto Shut Off [11] (continued) 5 Touch the Timer Key displayed under the “Auto Shut off” indicator on the Timer Setting Screen, to select the period of time to wait before activating Auto Shut Off. The default setting is 90min.
Page 256: Call Remote Service Centre [12]
Section 12 : Key Operator Mode Call Remote Service Centre [12] When activated, the Remote Diagnostics option is automatically monitored by your service centre. In case of machine trouble, select the Call Remote Service Centre option. Your service centre will contact you to determine the appropriate means for resolving the problem. Setting options: Call for JAM concerns;...
Page 257: Save Ekc Data To Memory Card [13]
Section 12 : Key Operator Mode Save EKC Data to Memory Card [13] The copier with the memory card mounted can store the EKC data entered in the copier to the memory card. Setting options: YES, NO Key Operator Mode Screen 1 Key Operator Mode Screen 2 Save EKC Data Screen Procedure...
Page 258: Key Operator Ekc Form
Section 12 : Key Operator Mode Key Operator Mode Key Operator EKC Form ACCT No. PASSWORD COUNT/LIMIT 12 - 52...
Page 259: Section 13: Maintenance & Supplies
Section 13: Maintenance & Supplies Loading Paper Add Paper Indicator Paper Level Indicator (Tray 5) Using the HELP Key Tray Error Indicator (!) Loading Paper in Tray 1 Loading Paper in Tray 2 Loading Paper in Tray 3 Loading Paper in Tray 4 Loading Paper in Tray 5 Adding Toner Inserting a New Staple Cartridge into FS-106 Finisher...
Page 260: Add Paper Indicator
Section 13 : Maintenance & Supplies Loading Paper Add Paper Indicator ( The Add paper indicator light goes on when a tray is empty and flashes when the key for that tray is touched. Add paper to a tray when the Add paper indicator light is on or flashing.
Page 261 Section 13 : Maintenance & Supplies Loading Paper (continued) Loading Paper in Tray 1 Procedure 1 Withdraw tray 1, and place paper on the tray with the curl side turning up. Load size A3, B4, F4, A4R, A4, B5R, B5, A5* or B6* Do not stack paper above the tray hook level.
Page 262 Section 13 : Maintenance & Supplies Loading Paper (continued) Loading Paper in Tray 3 Procedure 1 Withdraw tray 3. 2 Insert paper into the tray with the paper curl turning upward. Paper size is fixed to size: A4, B5 or 8.5"x11". Do not load paper above the red line.
Page 263 Section 13 : Maintenance & Supplies Loading Paper (continued) Loading Paper in Tray 5 Procedure 1 Open the LCT upper door. 2 Press the paper loading button to lower the bottom plate of the LCT. 3 Load the fixed size paper into the LCT with the paper curl turning downward. Paper size is fixed to size: A4 or 8.5"x11".
Page 264 Section 13 : Maintenance & Supplies Adding Toner CAUTION Keep the toner cartridge away from children. The toner is nontoxic; however if you inhale or contact with eyes by accident, flush with water and seek medical advice. • When toner supply is low, “Please add toner” message displays on the touch screen. •...
Page 265 Section 13 : Maintenance & Supplies Adding Toner (continued) 7 Slide the lever back and forth a few times while alternating with Step 8. 8 Tap the cartridge firmly several times, alternating with Step 7, until toner is completely poured from the cartridge. 9 Slide the lever back and remove the empty toner cartridge.
Page 266 Follow the procedure below to remove the empty cartridge from the finisher cartridge housing and set the new cartridge . Use only the staples supplied by Konica. Contact your service centre to reorder. Procedure 1 Open the Finisher door.
Page 267 Section 13 : Maintenance & Supplies Inserting a New Staple Cartridge into FS-106 Finisher (continued) 5 Remove cardboard stopper. 6 Insert the cartridge housing into the stapler unit, pressing down to secure it in place. Inserting New Staple Cartridge Maintenance &...
Page 268: Inserting A New Staple Cartridge Into Fs-108Bm Finisher
Follow the procedure below to remove the empty cartridge from the finisher cartridge housing and set the new cartridge . Use only the staples supplied by Konica. Contact your service centre to reorder. Procedure 1 Open the Finisher door.
Page 269 Section 13 : Maintenance & Supplies Inserting a New Staple Cartridge into FS-108BM Finisher (continued) 5 Insert the new cartridge into the housing. NOTE: Do not remove the remaining staples inside the housing; otherwise, a blank will be stapled after the replenishment. 6 Insert the cartridge housing while sliding it along the stapler rail, then push in and...
Page 270: Empty Waste Basket Of Tu-108 Trimmer Unit
Section 13 : Maintenance & Supplies Empty Waste Basket of TU-108 Trimmer Unit When the waste basket of the Trimmer unit becomes full, “Waste basket of Trimmer is full/ Please empty waste basket” message displays on the touch screen. Follow the procedure below to empty the waste basket. Procedure 1 Open the trimmer front door.
Page 271: Empty Waste Basket Of Pu-108 Punching Unit
Section 13 : Maintenance & Supplies Empty Waste Basket of PU-108 Punching Unit When the waste basket of the Punching unit becomes full, “Please empty waste basket of Punching unit” message displays on the touch screen. Follow the procedure below to empty the waste basket. Procedure 1 Open the Finisher/Punching unit front door.
Page 272: Preventive Maintenance
Section 13 : Maintenance & Supplies Preventive Maintenance After a set number of copies have been made on your copier, Preventive Maintenance (PM) will be required for maintaining optimal performance. When preventive maintenance is due, a message will prompt you to contact your service centre for maintenance.
Page 273: Cleaning The Left Partition Glass
Section 13 : Maintenance & Supplies Cleaning the Left Partition Glass The glass partition at the far left of the platen glass is designed for real-time scanning from the RADF. Keep this glass clean; otherwise soil marks may be copied, resulting in dark lines on the copies.
Page 274: Section 14: Troubleshooting
Section 14: Troubleshooting Call for Service Limited Use of the Copier in Trouble Memory Overflow Copy Conditions Using Memory Action 1 Action 2 Power OFF/ON Screen Clearing Mishandled Paper Copying Hints Call for Service Memory Overflow Power OFF/ON Screen Clearing Mishandled Paper Copying Hints...
Page 275 1 Immediately make note of the Report code No. indicated in the upper portion of the screen. 2 Turn OFF the main power switch. 3 Unplug the machine. 4 Contact your Konica service centre and report the condition and code No. 14 - 2...
Page 276: Limited Use Of The Copier In Trouble
ADU that are not affected by the trouble. To obtain this limited functionality of the copier, consult your Konica service centre. Be sure to utilize the limited function only temporarily, and arrange for machine repair immediately.
Page 277: Copy Conditions Using Memory
Section 14 : Troubleshooting Memory Overflow In certain copy modes, the 7065 uses memory to make operations convenient and smooth flowing. Occasional memory overflow may occur if the installed memory is inadequate for the copy conditions selected. Should memory overflow occur frequently, it is recommended that you contact your Konica service centre to extend the memory capacity in your machine.
Page 278: Action 1
Section 14 : Troubleshooting Memory Overflow (continued) Action 1 Action 1 is required when a job prematurely stops after the machine produces one copied set, and the Memory overflow messages display alternately. Action 1 enables you to continue the job (see procedure below) or suspend the job (see procedure at the bottom of the page).
Page 279: Action 2
Section 14 : Troubleshooting Memory Overflow (continued) Action 2 Action 2 is required when a job ceases with no copies produced, and Memory overflow messages display alternately. Action 2 enables you to continue the job (see procedure below) or suspend the job (see procedure at the bottom of the page). To continue the job: 1 Press [ START PRINT ] to allow the machine to prepare the scanned data for job completion in the amount remaining in the print quantity setting.
Page 280: Power Off/On Screen
Section 14 : Troubleshooting Power OFF/ON Screen When any trouble affects the electric signal of the copier, the Power OFF/ON Screen will be displayed. Turn OFF then ON the power switch. Power OFF/ON Screen Memory Overflow Power OFF/ON Screen T rouble- T rouble- shooting shooting...
Page 281: Clearing Mishandled Paper
Section 14 : Troubleshooting Clearing Mishandled Paper CAUTION When removing mishandled paper, be sure to leave no torn paper inside the machine, avoid touching the drum or scratching it in any way, and keep all metal and magnetic objects, e.g., watches, jewelry, etc. away from the drum area. When a paper misfeed occurs, the copier stops making copies and mishandled paper codes display on the screen to indicate misfeed area(s).
Page 282 Section 14 : Troubleshooting Clearing Mishandled Paper (continued) CAUTION: The fixing unit is internally very hot. To avoid getting burned DO NOT TOUCH the area. Use care when withdrawing the fixing unit. CAUTION: The paper exit unit of the main body (outlet of fixing unit) is very hot. To avoid getting burned DO NOT TOUCH the area.
Page 283: Copying Hints
Section 14 : Troubleshooting Copying Hints COPIER DOES NOT OPERATE WHEN POWER SWITCH IS ON Fully insert paper trays. Close RADF. Check to be sure power plug is firmly inserted in electrical socket. COPY IMAGE IS TOO LIGHT Manually adjust copy density to darker density. Check toner indicator and add toner, if required.
Page 284 Section 14 : Troubleshooting Copying Hints (continued) COPYING DOES NOT RESUME AFTER MISHANDLED PAPER IS REMOVED Check copier diagram on touch screen for additional indications of mishandled paper. COPY QUALITY IS POOR Check paper for dampness, and replace if necessary. THE ORIGINAL PAPER IS MISHANDLED OR SKEWED IN THE DOCUMENT FEEDER Originals should conform to the recommended size and weight.
Page 285 If this message continues to display after selecting paper size, select 1.00 magnification, even if it is already indicated, then press [START PRINT]. If desired, ask your Konica service centre to enable the machine to default to 1.00 magnification in this situation.
Page 286: Section 15: Machine Specifications
Section 15: Machine Specifications Main Body Specifications Main Body RADF (DF-312) Option Specifications FS-106 In-Bin Stapler Finisher FS-108BM In-Bin Stapler Finisher Cover Sheet Feeder (PI-108) Trimmer Unit (TU-108) Punching Unit (PU-108) Large Capacity Tray (LT-352) Memory Unit Key Counter Tandem Kit (TD-101) Copy Materials Maintenance Kit (150,000 copies) (except for the United Kingdom) M achine...
Page 287: Main Body Specifications
Section 15 : Machine Specifications Main Body Specifications Main Body Name: Konica 7065 Type: Console type Transfer method: Indirect electrostatic method Platen glass: Fixed Light-sensitive unit: Light source: Xenon lamp Developing method: Dry, 2-component magnetic brush developing Fixing method: Heat roller...
Page 288: Radf (Df-312)
Section 15 : Machine Specifications Main Body Specifications (continued) Main Body (continued) Effective size: 1091(W) x 710(D) mm (main body + RADF) 2238(W) x 710(D) mm (main body + RADF + PU-108 + FS-106 + LCT) 2319(W) x 710(D) mm (main body + RADF + PU-108 + FS-108BM + LCT) 3117(W) x 710(D)mm (main body + RADF + PU-108 + FS-108BM + TU-108 + LCT)
Page 289: Option Specifications
Section 15 : Machine Specifications Option Specifications FS-106 In-Bin Stapler Finisher Type: Offset catch tray Sorting system: Sorting by shifting (30 2 mm) (copies are delivered face down) Types of paper: A3, B4, F4, A4R, A4, B5R, B5, A5 (60 to 90g/m paper) Primary (Main) tray in non-sort mode or Secondary (Sub) tray;...
Page 290: Trimmer Unit (Tu-108)
Section 15 : Machine Specifications Option Specifications (continued) Trimmer Unit (TU-108) Function: Trimming the end of booklet Types of paper: 60 to 90g/m paper One cover paper only (91 to 200g/m paper) Paper sizes: A3, B4, A4R, 8.5"x11"R Number of trimmed sheet: 3 sheets max. in Folding mode 16 sheets max.
Page 291: Copy Materials
Section 15 : Machine Specifications Copy Materials Maintenance Kit (150,000 copies) (except for the United Kingdom) Developer Cleaning blade Collection roller ass’y Cleaner idler gear Fixing cleaning roller Fixing roller (D) Pad ass’y Filter (K) Dustproof filter ass’y Charging cleaning block/A ass’y Charging cleaning block/B ass’y Charging control plate Charging wire...
Page 292: Index
Index...
Page 293 Index Index SYMBOL Control panel contrast key 6-42 COPY DENSITY key 6-8 [ ! ] symbol 14-10 Copying Hints 14-10 NUMBER COPY INSERTION key 9-7 COPY MODE key 6-6 2 in 1 key 9-12 Copy sheet interleaving 9-20 4 in 1 key 9-12 Cover Sheet Feeder 7-17 8 in 1 key 9-12 COVER SHEET key 7-18...
Page 294 Index Index MEMORY key 6-26 Memory Copy 6-26 HELP key 6-42 Memory Overflow 14-4 HELP MENU key 6-42 Memory Switch 12-42 Help Mode 6-42 Mixed Original 8-12 High Mode 8-3 MODE indicator 3-7 HIGH QUALITY 8-3 MODE key 3-7 Multi-sheet bypass tray 6-43 Image Insert 9-23 Image Shift 9-48 NO COVER SHEET key 9-16...
Page 295 Index Index Total PM count 13-14 Touch screen 3-8 RADF (Reversing Automatic Document Feeder) 3-3 Tray Error Indicator ( ! ) 13-2 RADF AMS 12-45 Trimmer stacker 3-5 RADF APS 12-44 Trimmer unit 3-5 RADF frame erasure selection 12-44 Trimming mode 7-14 RADF key 6-42 RADF Memory Copy 6-28 RECALL [0] key 3-7...
Page 296 Recycled paper is used for the inside pages of this manual. MANUFACTURER • ONICA CORPORATION • TOKYO JAPAN 2001. 01 n Printed in Japan...

Konica Minolta 7065 Instruction Manual

Operation

Output Modes

Scanning

Condition

Key Operator Mode

Quick Links

Troubleshooting

Related Manuals for Konica Minolta 7065

Summary of Contents for Konica Minolta 7065
