FIXING UNIT

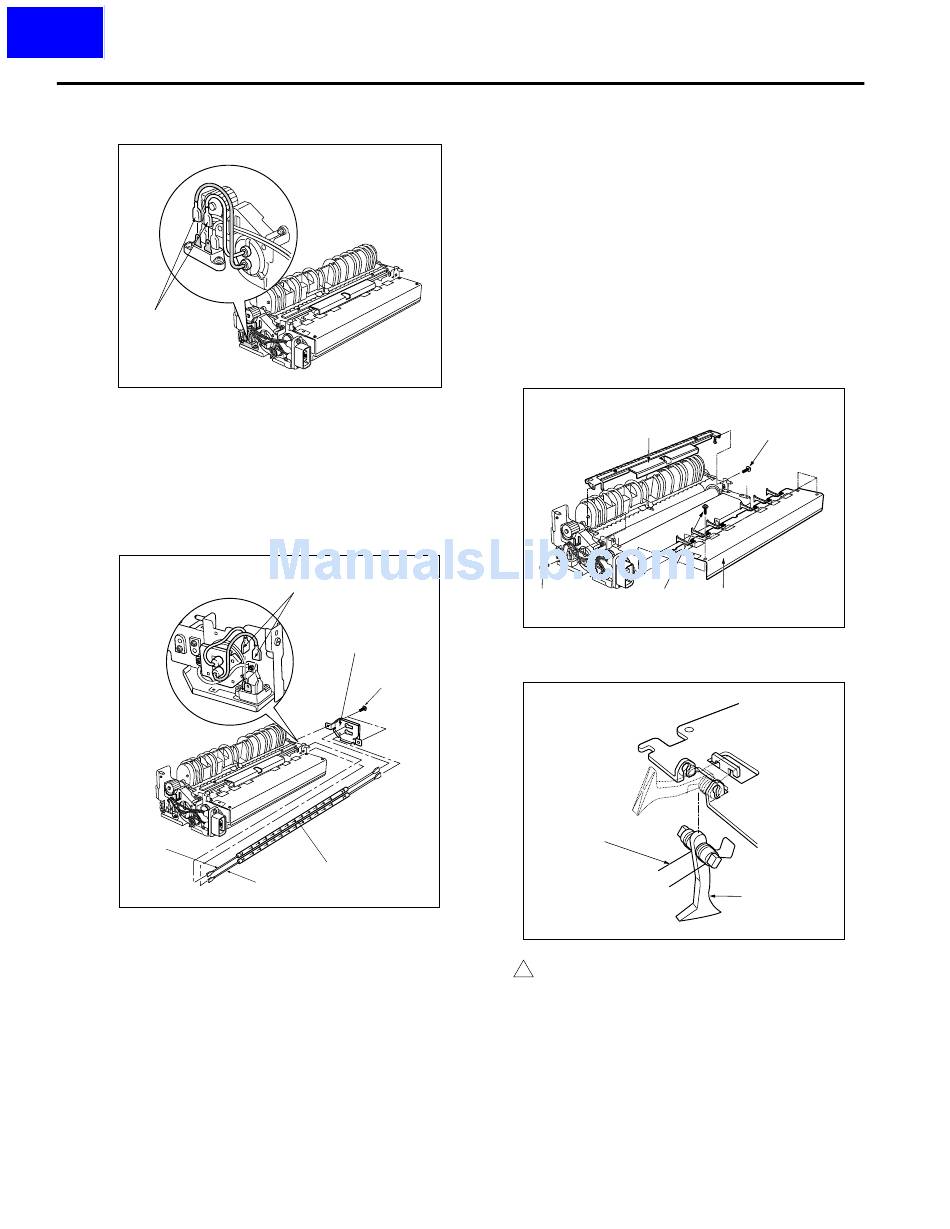

(3) Detach the faston terminal at the rear of each
lamp.
Fasten
terminals
(4) Remove the 2 set screws, and remove the lamp
support piece (front).
(5) Detach the faston terminal at the front of each
lamp.
(6) Keeping all cord faston terminal wiring straight, pull
each fixing heater lamp toward you to remove.
Main
(7) Reinstall in the opposite sequence to removal.
Fasten terminals
Lamp support piece
(front)
Set screws
Fixing heater lamps
Sub
[3] Removing and Reinstalling the
Fixing Claw
Caution 1: When installing the fixing claw, be
sure that it is oriented correctly.
Caution 2: Be sure that the claw is securely
attached to the claw spring.
a. Procedure
(1) Remove the fixing unit from the main body.
(2) Remove the 2 set screws, and remove the fixing
exit plate.
(3) Remove the 4 set screws, and remove the fixing
claw unit.
Fixing exit plate
Set screw
Set screws
(4) Unhook the spring, and remove the fixing claw.
Spring
Caution: The number of fixing claws installed
4
differs according to the particular
model.
7020/25/30/35
7022/7130/7135 : 4 claws
(5) Reinstall in the opposite sequence to removal.
3-K-2
Set screw
Fixing claw unit
Fixing claw
: 6 claws
