Chapter 1 Setup and Installation
1
Plan Scanning System
Before installing the industrial scanner you should sketch out a diagram of
your scanning system, showing equipment, connector and cable types, and
cable lengths.
Figure 1-1 shows a possible scanning system setup. There are three cable
connectors on the scanner: the 28-pin host connector (see
page 1-9) the 9-pin trigger connector (see
9-pin power connector (see
Bar-coded
item flow
1-2
MS-7100/7180 Industrial Scanner User's Manual
figure 1-7 on page
figure 1-9 on page 1-12).
O bject
Detector
9-pin
28-pin
M S -7100/7100
Scanner
9-pin

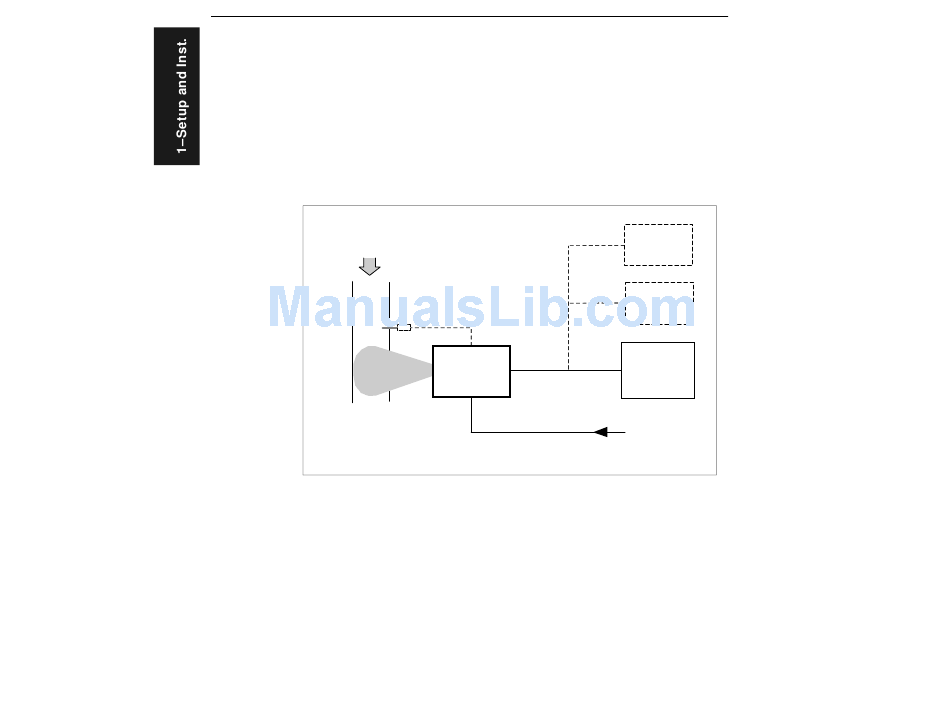

Figure 1-1 System Diagram

figure 1-5 on
1-11) and the
O ptional
M onitor
M S-5000
M ultidrop
Concentrator
Host
Unregulated
10 to 28 V DC
pow er supply
