Chapter 2 Menu Configuration

Entering the Menu Configuration Program

To see the Main menu
to the scanner, enter the operational command <D> (enter the < > brackets
as well as the upper case D).

Using the Menu Configuration Program

The bottom line on the screen is called the command line. The command
line identifies your place in the menu program, shows current status and
allows you to review and change options. Use the designated keys
to and select the parameter you wish to change; press SP (space bar key)
to scroll ahead, B to scroll back, CR (carriage return key) to select, and M to
return to the previous higher level menu. To return to the Main menu at any
time, press ESC (escape key) and M.
1. Command start character by default is a left angle bracket, <. It may be redefined by menu or
serial command. However, the end character, a right angle bracket > cannot be changed.
2. Item 5, Raster Setup, applies only to the MS-7180.
3. The menu navigational keys are displayed in each menu.
2-2
MS-7100/7180 Industrial Scanner User's Manual
(figure 2-1) from an ASCII terminal that is connected
1
XX

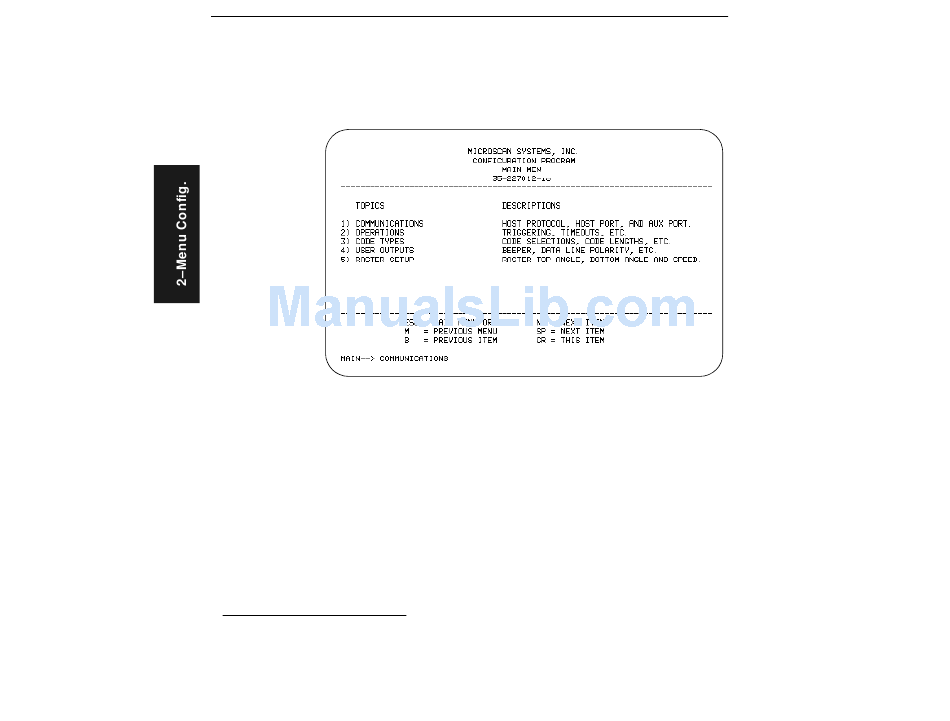

Figure 2-1 Configuration Program - Main Menu

2
3
to scroll
