Field Service Ver. 3.0 Jan. 2008
7.4

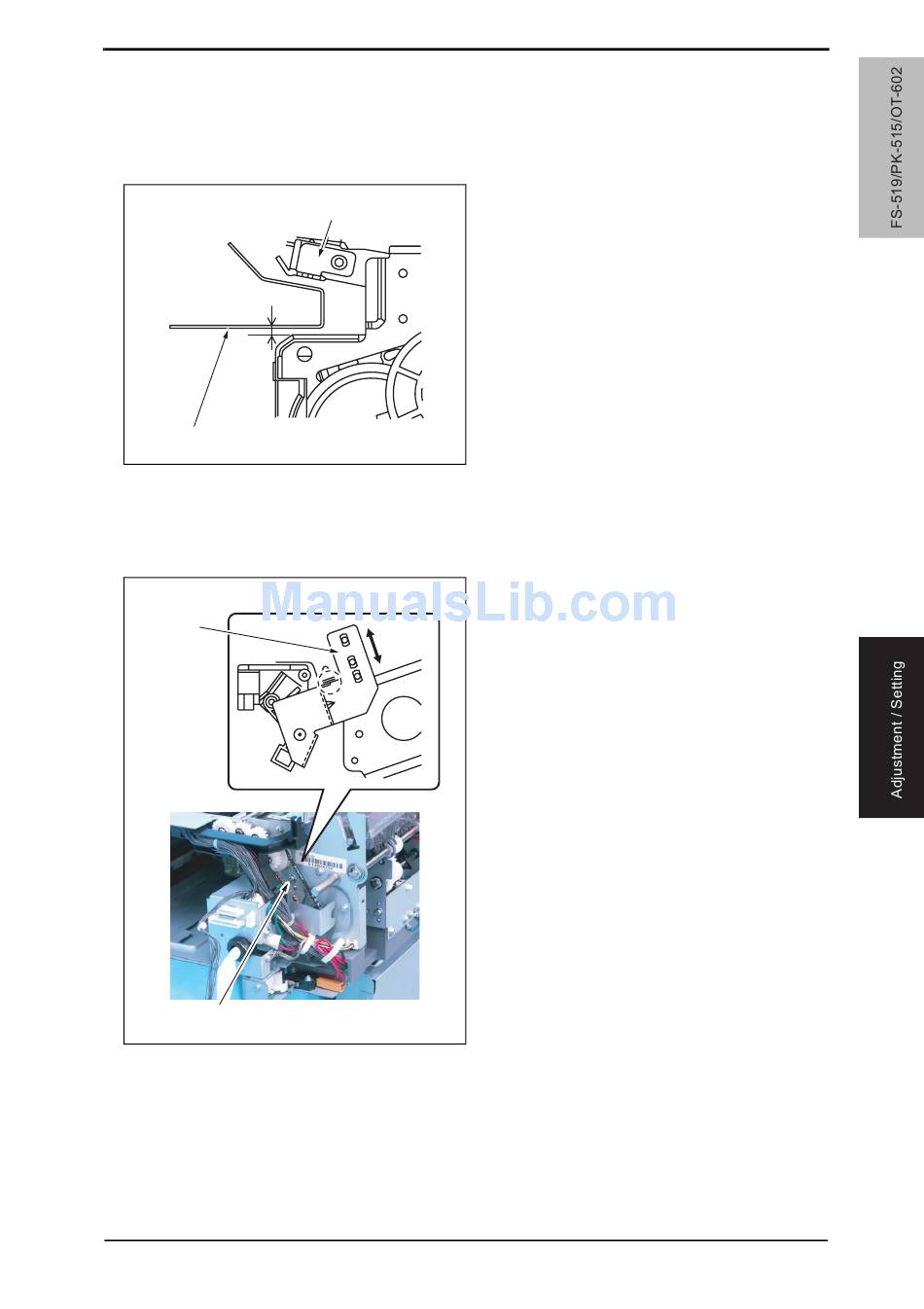

Adjustment of clearance between stapler and FD stopper

NOTE
Make this adjustment after any of the following procedures has been performed.
• When stapler fails to move appropriately.
A
[2]
3. Remove the finisher unit.
See P.28
4. Remove the finisher unit rear cover.
See P.20
[2]
[1]
[1]
9J08F3C506DA
9J08F3C507DA
7. Mechanical adjustment
1. Check the clearance between the
stapler unit [1] and the FD stopper
[2] is within the specified range.
Specification A: 2.0 mm ± 0.5 mm
2. If the value does not fall within the
specified range, make the adjust-
ment as shown below.
5. Loosen the screw [1] and move the
mounting plate [2] to adjust.
71
