STERNDRIVE (MCM) MODELS
6. Align rear engine mounts with inner transom plate mounts while simultaneously aligning
exhaust system. DO NOT relieve hoist tension.
IMPORTANT: Engine attaching hardware must be installed in sequence shown.
7. Install both rear engine mounting bolts and hardware as shown. Torque to 47-54 Nm
(35-40 lb-ft).
Page 2A-8
d
e
a
b

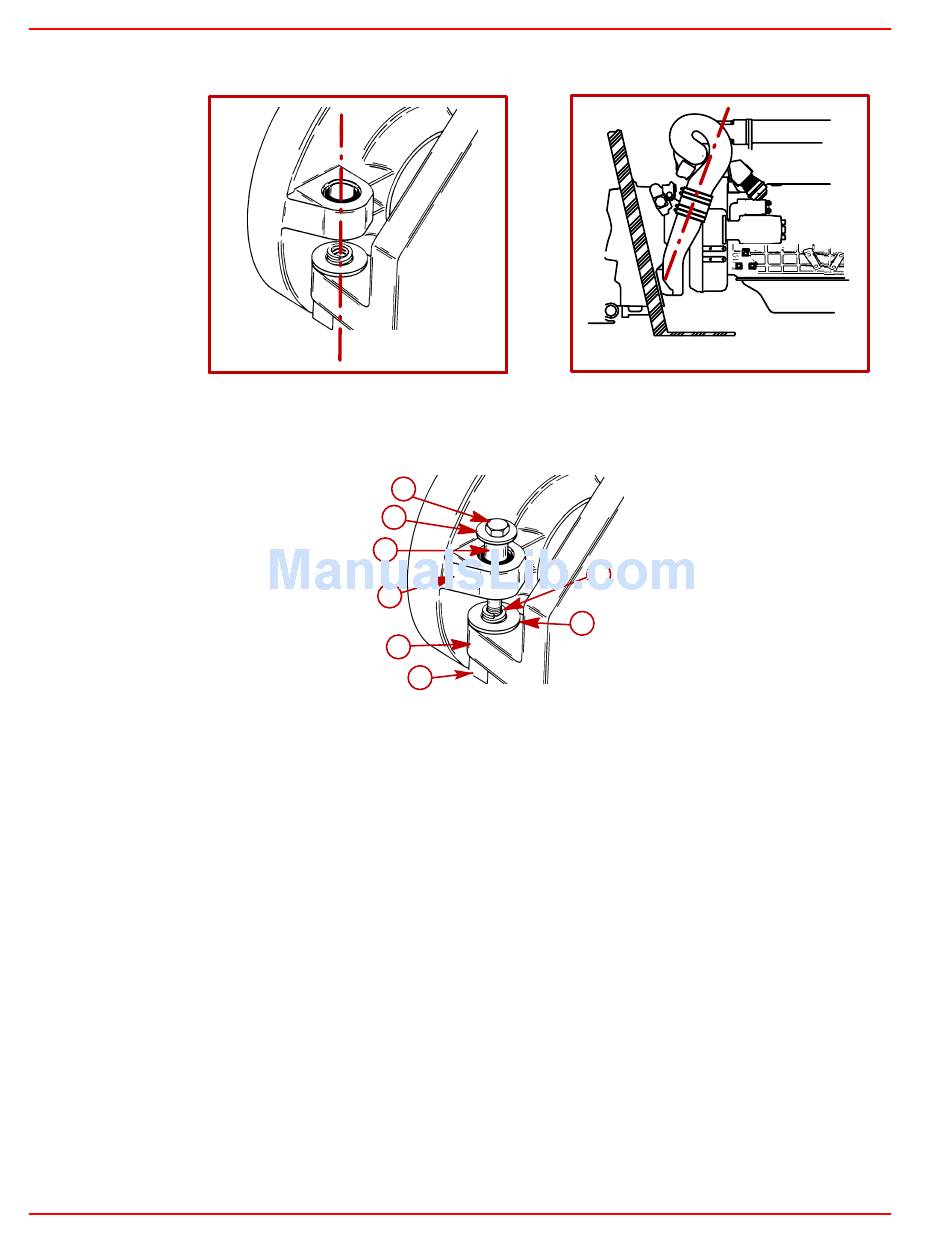

a - Rear Engine Mount
b - Inner Transom Plate Mount
c - Bolt
d - Washer
e - Spacer
f - Fiber Washer
g - Double-Wound Lockwasher
h - Locknut (Not Shown)
22032
c
h
SERVICE MANUAL NUMBER 22
g
f
90-860074--1 FEBRUARY 2002
74298
22032
