Mercury Zeus 3000 Series User Manual

Cmd pod drive models
Hide thumbs
Table of Contents

Advertisement

Quick Links

Identification Record
Please record the following information:
The serial numbers are the manufacturer's keys to numerous engineering details
that apply to your Cummins MerCruiser Diesel product. When contacting Cummins
MerCruiser Diesel (CMD) about service, always specify model and serial numbers.
Refer to the engine operation and maintenance manual available from the engine
manufacturer for the location of the engine data tag, which contains the engine serial
number and model number.
Engine Model and Horsepower
The description and specifications contained herein were in effect at the time this
guide was approved for printing. CMD, whose policies are based on continuous
improvement, reserves the right to discontinue models at any time or to change
specifications or designs without notice and without incurring obligation.
Mercury Marine, Fond du Lac, Wisconsin, U.S.A. Printed in U.S.A.
©2009, Mercury Marine
a

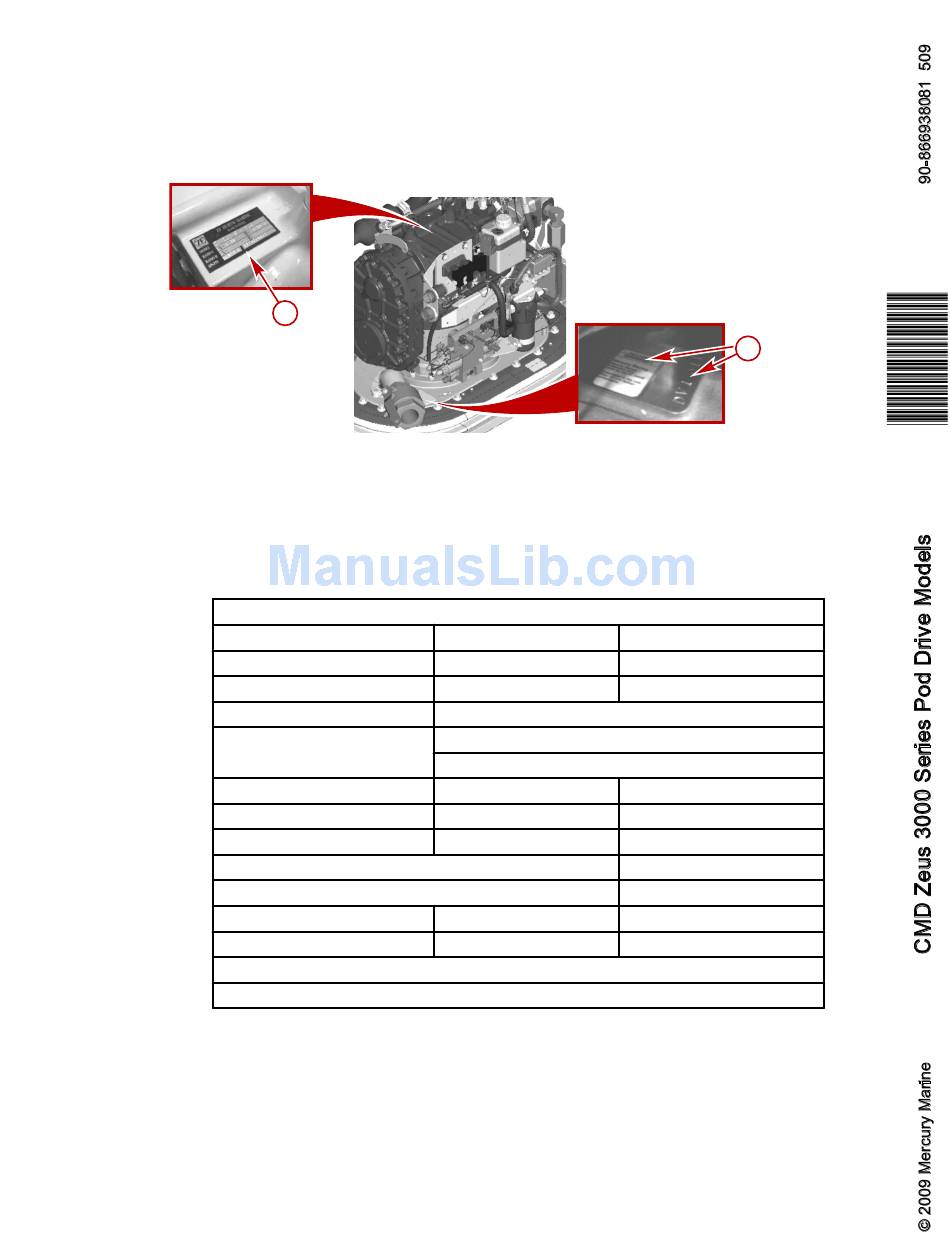

Drive serial number locations
a -
Transmission serial number plate
Please record the following information:
Drive Serial Numbers
Port
Starboard
/
Propeller Information
Front
Rear
Boat Hull Identification Number (HIN)
Boat Manufacturer
.
Exhaust Gas Emissions Certificate Number (Europe Only)
b -
Drive serial number decal and
stamping
Zeus Drive Serial Number Transmission Serial Number
Engine Serial Number
Port
Starboard
Propeller Part Number
‑
‑
Boat Model
/
b
41269
Pitch
Purchase Date
/
Boat Length
