Adjusting the picture

The picture adjustments allow you to fine tune the image quality of the selected
input. When you press one of the Picture Adjustment buttons (Color/Tint,
Brightness/Contrast, Size, Position, or Detail) once, the corresponding image
adjustment menu for the preview image appears on the LCD screen. Press the
button again, and the corresponding image adjustment menu for the program
image appears. In either screen, adjustments can then be made by rotating the
Adjust [ knob or the Adjust { knob. Picture adjustment settings are stored in
nonvolatile memory; when the switcher is powered down and then powered up,
the settings are restored.
Adjust an image for sizing, brightness, contrast, detail filtering, centering (position),
color, tint, or zoom as follows (figure 3-29).
Power
BRIGHT/
SIZE
CONT
Cont Prev Bright
Preview Size
063
H=1024 V=0768
BRIGHT/
SIZE
CONT
Cont Prog Bright
Program Size
H=1024 V=0768 063
N The Adjust [ knob and the Adjust { knob are used to adjust the
image settings on the left and right sides of the LCD screen, respectively.

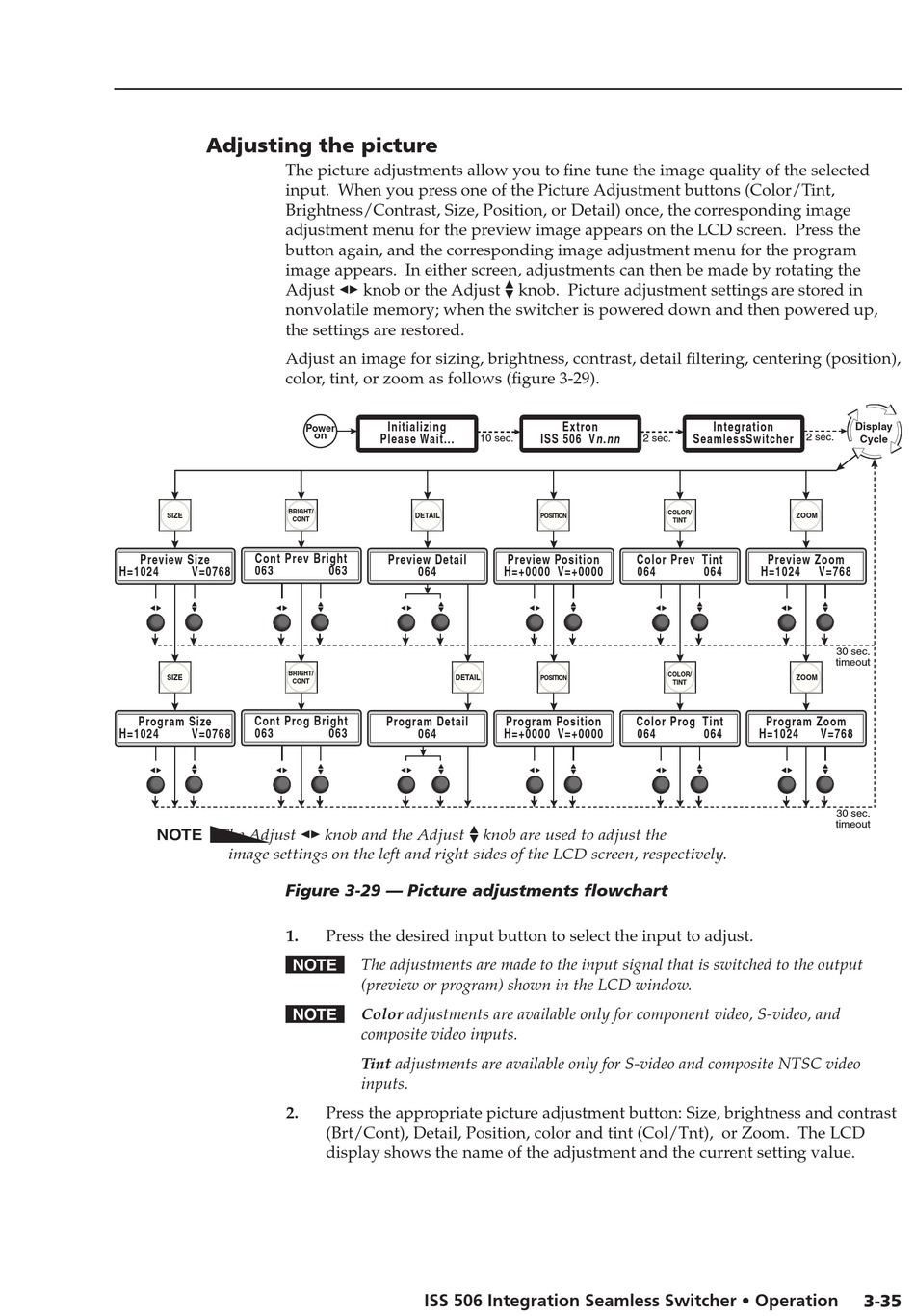

Figure 3-29 — Picture adjustments flowchart
1.
N The adjustments are made to the input signal that is switched to the output
N Color adjustments are available only for component video, S-video, and
2.
Initializing
on
Please Wait...
10 sec.
DETAIL
Preview Detail
063
064 H=+0000 V=+0000
DETAIL
Program Detail
063 064 H=+0000 V=+0000
Press the desired input button to select the input to adjust.
(preview or program) shown in the LCD window.
composite video inputs.
Tint adjustments are available only for S-video and composite NTSC video
inputs.
Press the appropriate picture adjustment button: Size, brightness and contrast
(Brt/Cont), Detail, Position, color and tint (Col/Tnt), or Zoom. The LCD
display shows the name of the adjustment and the current setting value.
ISS 506 Integration Seamless Switcher • Operation
Extron
ISS 506 Vn.nn SeamlessSwitcher
2 sec.
COLOR/
POSITION
TINT
Preview Position Color Prev Tint
064
COLOR/
POSITION
TINT
Program Position Color Prog Tint
064
Integration
Display
2 sec.
Cycle
ZOOM
Preview Zoom
064 H=1024 V=768
30 sec.
timeout
ZOOM
Program Zoom
064 H=1024 V=768
30 sec.
timeout
3-35
