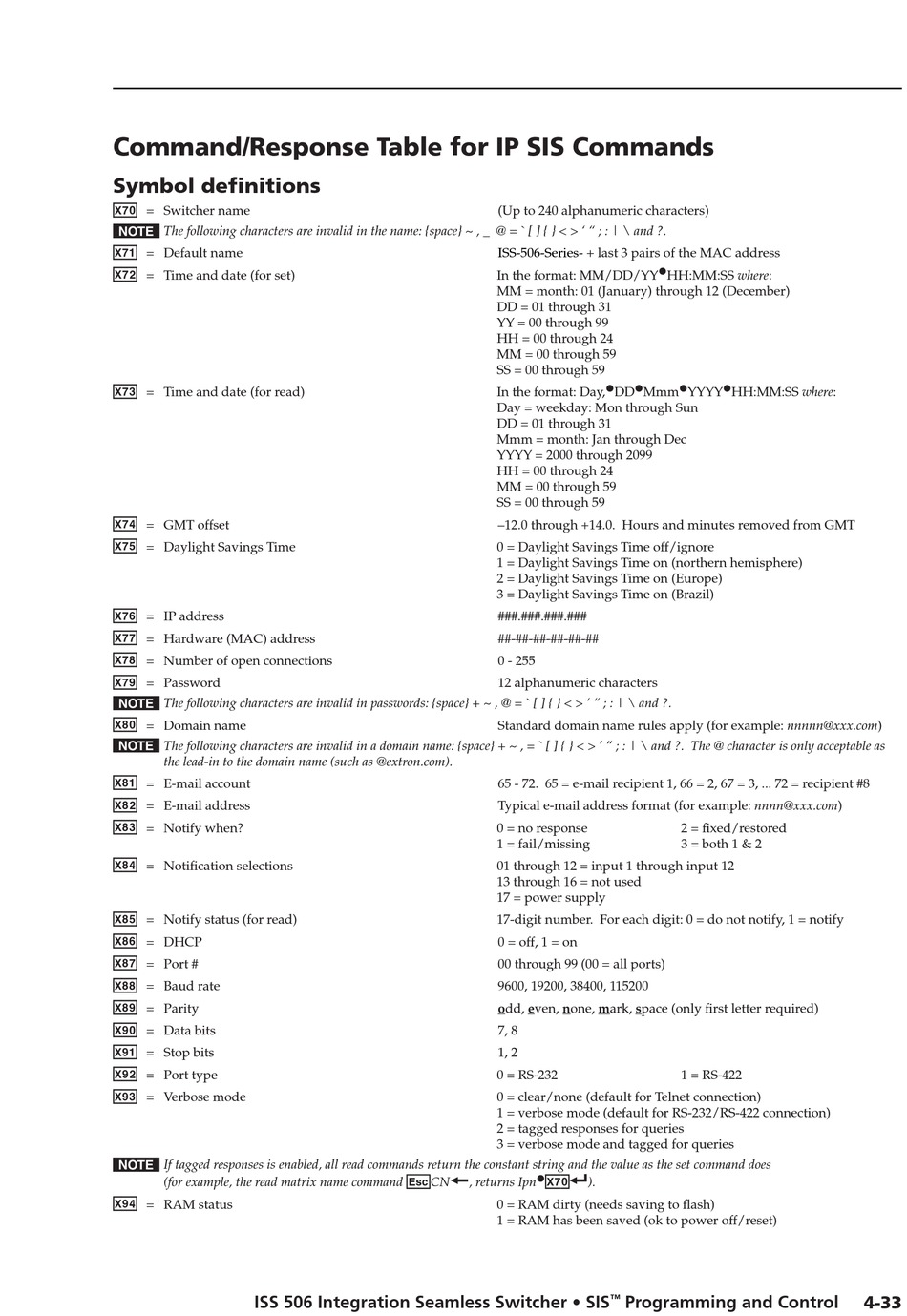

Command/Response Table for IP SIS Commands

Symbol definitions
X7)
= Switcher name
N The following characters are invalid in the name: {space} ~ , _ @ = ` [ ] { } < > ' " ; : | \ and ?.
X7!
= Default name
X7@
= Time and date (for set)
X7#
= Time and date (for read)
X7$
= GMT offset
X7%
= Daylight Savings Time
X7^
= IP address
X7&
= Hardware (MAC) address
X7*
= Number of open connections
X7(
= Password
N The following characters are invalid in passwords: {space} + ~ , @ = ` [ ] { } < > ' " ; : | \ and ?.
X8)
= Domain name
N The following characters are invalid in a domain name: {space} + ~ , = ` [ ] { } < > ' " ; : | \ and ?. The @ character is only acceptable as
the lead-in to the domain name (such as @extron.com).
X8!
= E-mail account
X8@
= E-mail address
X8#
= Notify when?
X8$
= Notification selections
X8%
= Notify status (for read)
X8^
= DHCP
X8&
= Port #
X8*
= Baud rate
X8(
= Parity
X9)
= Data bits
X9!
= Stop bits
X9@
= Port type
X9#
= Verbose mode
N If tagged responses is enabled, all read commands return the constant string and the value as the set command does
(for example, the read matrix name command
X9$
= RAM status
ISS 506 Integration Seamless Switcher • SIS
(Up to 240 alphanumeric characters)
ISS-506-Series- + last 3 pairs of the MAC address
In the format: MM/DD/YY
MM = month: 01 (January) through 12 (December)
DD = 01 through 31
YY = 00 through 99
HH = 00 through 24
MM = 00 through 59
SS = 00 through 59
In the format: Day,
Day = weekday: Mon through Sun
DD = 01 through 31
Mmm = month: Jan through Dec
YYYY = 2000 through 2099
HH = 00 through 24
MM = 00 through 59
SS = 00 through 59
–12.0 through +14.0. Hours and minutes removed from GMT
0 = Daylight Savings Time off/ignore
1 = Daylight Savings Time on (northern hemisphere)
2 = Daylight Savings Time on (Europe)
3 = Daylight Savings Time on (Brazil)
###.###.###.###
##-##-##-##-##-##
0 - 255
12 alphanumeric characters
Standard domain name rules apply (for example: nnnnn@xxx.com)
65 - 72. 65 = e-mail recipient 1, 66 = 2, 67 = 3, ... 72 = recipient #8
Typical e-mail address format (for example: nnnn@xxx.com)
0 = no response
1 = fail/missing
01 through 12 = input 1 through input 12
13 through 16 = not used
17 = power supply
17-digit number. For each digit: 0 = do not notify, 1 = notify
0 = off, 1 = on
00 through 99 (00 = all ports)
9600, 19200, 38400, 115200
odd, even, none, mark, space (only first letter required)
7, 8
1, 2
0 = RS-232
0 = clear/none (default for Telnet connection)
1 = verbose mode (default for RS-232/RS-422 connection)
2 = tagged responses for queries
3 = verbose mode and tagged for queries
E } •X7)]
CN , returns Ipn ).
0 = RAM dirty (needs saving to flash)
1 = RAM has been saved (ok to power off/reset)
•
HH:MM:SS where:
• • • •
DD Mmm YYYY HH:MM:SS where:
2 = fixed/restored
3 = both 1 & 2
1 = RS-422
