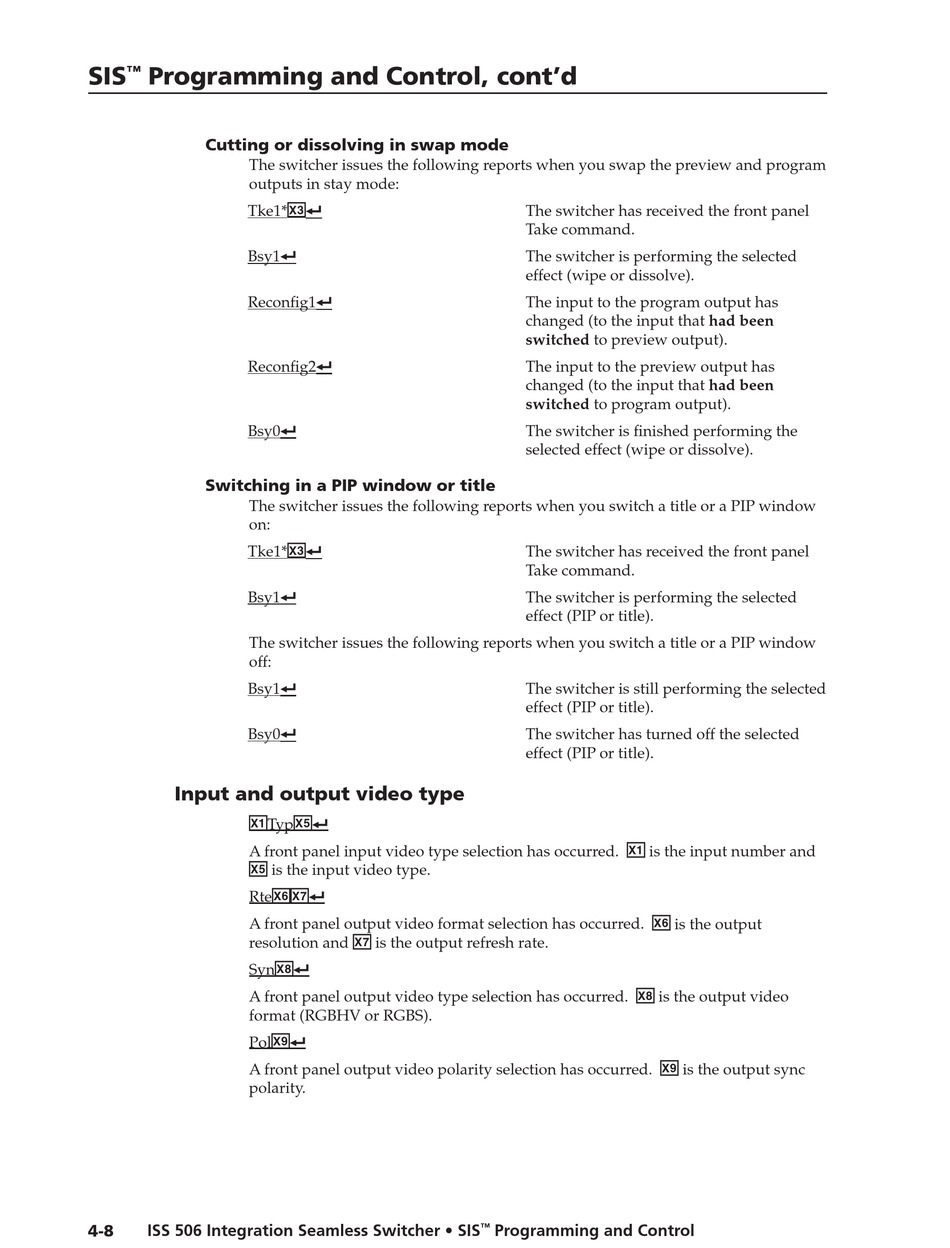

SIS Programming and Control, cont'd
™

Cutting or dissolving in swap mode

The switcher issues the following reports when you swap the preview and program
outputs in stay mode:
Tke1*
Bsy1]
Reconfig1]
Reconfig2]
Bsy0]

Switching in a PIP window or title

The switcher issues the following reports when you switch a title or a PIP window
on:
Tke1*
Bsy1]
The switcher issues the following reports when you switch a title or a PIP window
off:
Bsy1]
Bsy0]
Input and output video type
X!
A front panel input video type selection has occurred.
X%
Rte
A front panel output video format selection has occurred.
resolution and
Syn
A front panel output video type selection has occurred.
format (RGBHV or RGBS).
Pol
A front panel output video polarity selection has occurred.
polarity.
4-8 ISS 506 Integration Seamless Switcher • SIS
X#
]
X#
]
X%
Typ ]
is the input video type.
X^X&
]
X&
is the output refresh rate.
X*
]
X(
]
The switcher has received the front panel
Take command.
The switcher is performing the selected
effect (wipe or dissolve).
The input to the program output has
changed (to the input that had been
switched to preview output).
The input to the preview output has
changed (to the input that had been
switched to program output).
The switcher is finished performing the
selected effect (wipe or dissolve).
The switcher has received the front panel
Take command.
The switcher is performing the selected
effect (PIP or title).
The switcher is still performing the selected
effect (PIP or title).
The switcher has turned off the selected
effect (PIP or title).
X!
is the input number and
X^
X*
is the output video
Programming and Control
™
is the output
X(
is the output sync
