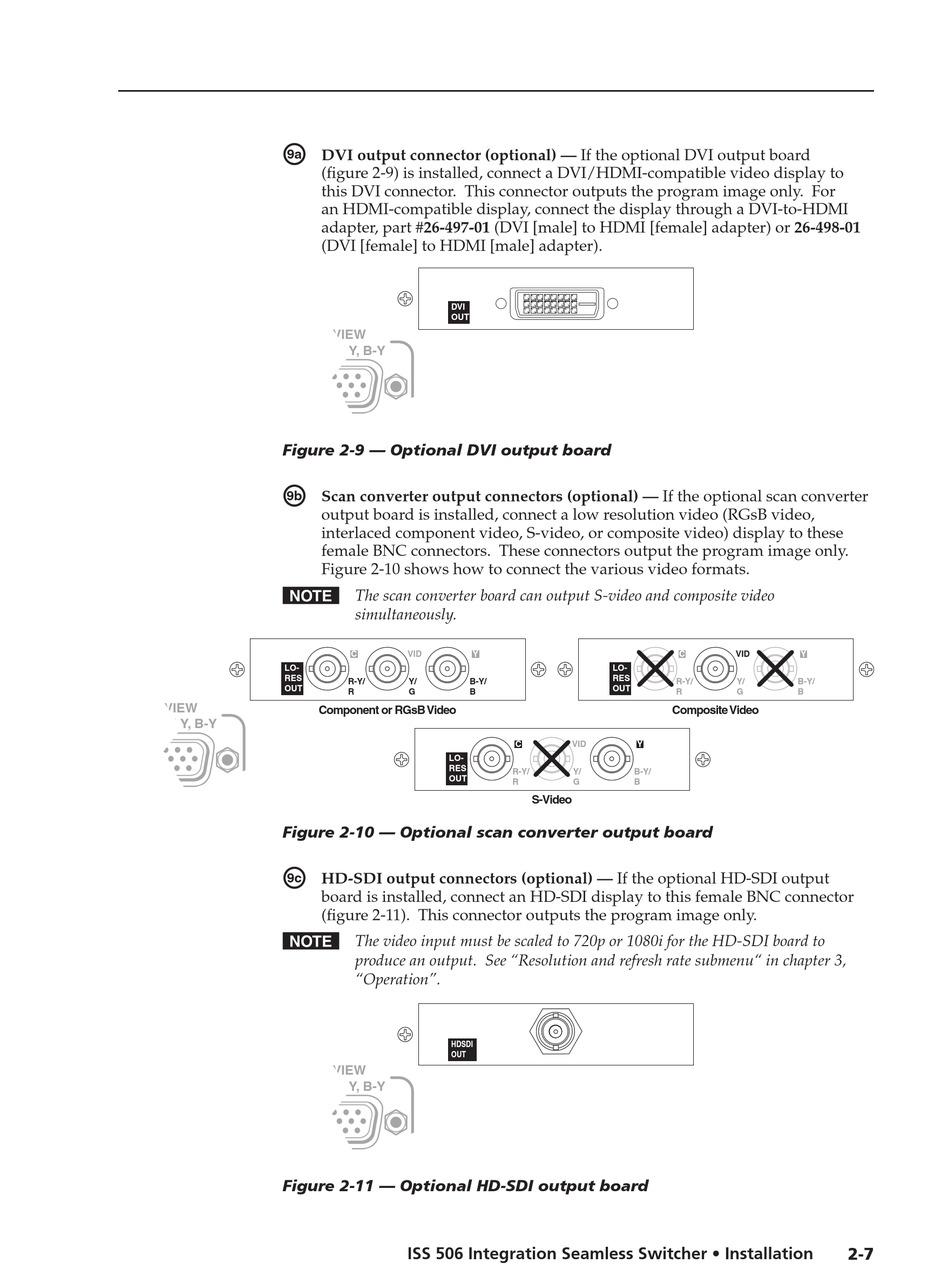

Extron electronics ISS 506 User Manual page 23

DVI output connector (optional) — If the optional DVI output board
9a
(figure 2-9) is installed, connect a DVI/HDMI-compatible video display to
this DVI connector. This connector outputs the program image only. For
an HDMI-compatible display, connect the display through a DVI-to-HDMI
adapter, part #26-497-01 (DVI [male] to HDMI [female] adapter) or 26-498-01
(DVI [female] to HDMI [male] adapter).
VIEW
Y, Y, B-Y
Figure 2-9 — Optional DVI output board
Scan converter output connectors (optional) — If the optional scan converter
9b
output board is installed, connect a low resolution video (RGsB video,
interlaced component video, S-video, or composite video) display to these
female BNC connectors. These connectors output the program image only.
Figure 2-10 shows how to connect the various video formats.
N The scan converter board can output S-video and composite video
LO-
RES
OUT
VIEW
Component or RGsB Video
Y, Y, B-Y
Figure 2-10 — Optional scan converter output board
9c HD-SDI output connectors (optional) — If the optional HD-SDI output
board is installed, connect an HD-SDI display to this female BNC connector
(figure 2-11). This connector outputs the program image only.
N The video input must be scaled to 720p or 1080i for the HD-SDI board to
VIEW
Y, Y, B-Y
Figure 2-11 — Optional HD-SDI output board
DVI
OUT
simultaneously.
C VID Y
R-Y/ Y/ B-Y/
R G B
C
LO-
RES
R-Y/
OUT
R
produce an output. See "Resolution and refresh rate submenu" in chapter 3,
"Operation".
HDSDI
OUT
ISS 506 Integration Seamless Switcher • Installation
C
LO-
RES
R-Y/
OUT
R
Composite Video
VID Y
Y/ B-Y/
G B
S-Video
VID Y
Y/ B-Y/
G B
2-7
