Use either Adjust knob to select the blanking period (RGB delay time) from
0 seconds to 5 seconds in 0.1 second steps. The default is 0.4 seconds.

Auto Memories submenu

The Auto Memories submenu provides a means to turn the auto presets features on
or off for all input selections.
The auto memories feature saves and recalls centering, sizing, and filtering
information, based on the input frequency. Auto memory settings may conflict
with user preset settings. When you use a control system to switch inputs and then
recall a user memory, the delay in recalling the auto memory settings could result
in the recalled auto memory settings overwriting the recalled user memory settings.
To prevent this conflict, turn auto memories off. Rotate either Adjust knob to toggle
auto memories on or off

Preview Switch Mode submenu

The Preview Switch Mode submenu lets you set the way the preview output
responds to the cut or take operation.
•
•
Use either Adjust knob to select Stay or Swap.
ISS
CUT
TAKE
Press Cut or
Take
Scaler A
Input 1
(program output)
Scaler B
Input 2
(preview output)
Stay Mode
Scaler A changes inputs.

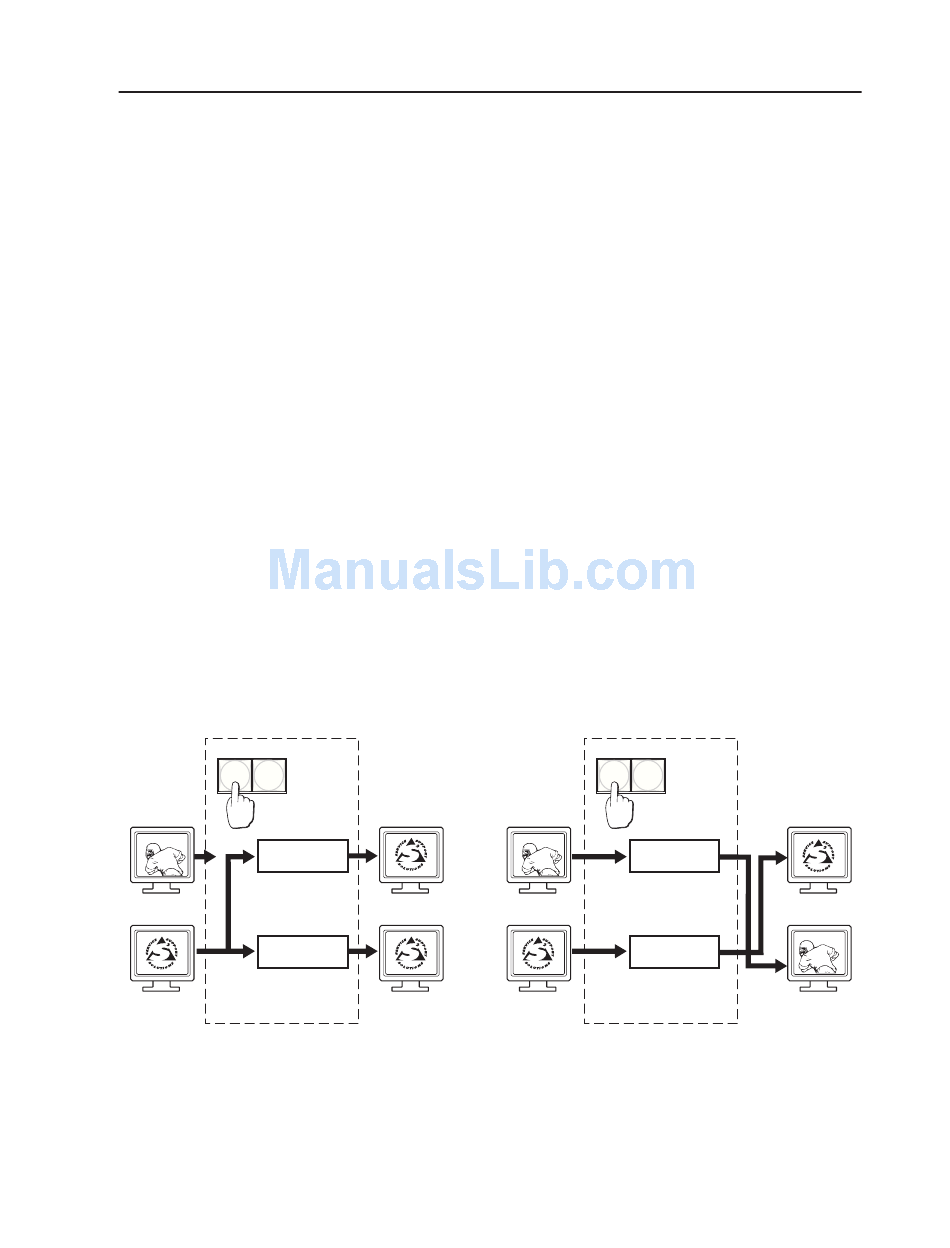

Figure 3-15 — Stay mode and swap mode
Stay mode — For either a cut or take operation, the video and audio signals
on the preview output are applied to the program output (figure 3-15) and
also continue on the preview output until another input is selected.
The video input switches between the switcher's two internal scalers.
Swap mode — For either a cut or a take operation, the preview and program
outputs are swapped (figure 3-15). The video and audio signals on the
preview output are applied to the program output. The video and audio
signals that had been applied to the program output are applied to the
preview output.
Each of the switcher's two internal scalers retains the same video inputs; only
the outputs are swapped.
Program Monitor
(input 2) (program output)
Preview Monitor
(input 2) (preview output)
ISS 506 Integration Seamless Switcher • Operation
ISS
CUT
TAKE
Press Cut or
Take
Scaler A
Input 1
Scaler B
Input 2
Swap Mode
Neither scaler changes inputs.
Program Monitor
(input 2)
Preview Monitor
(input 1)
3-21
