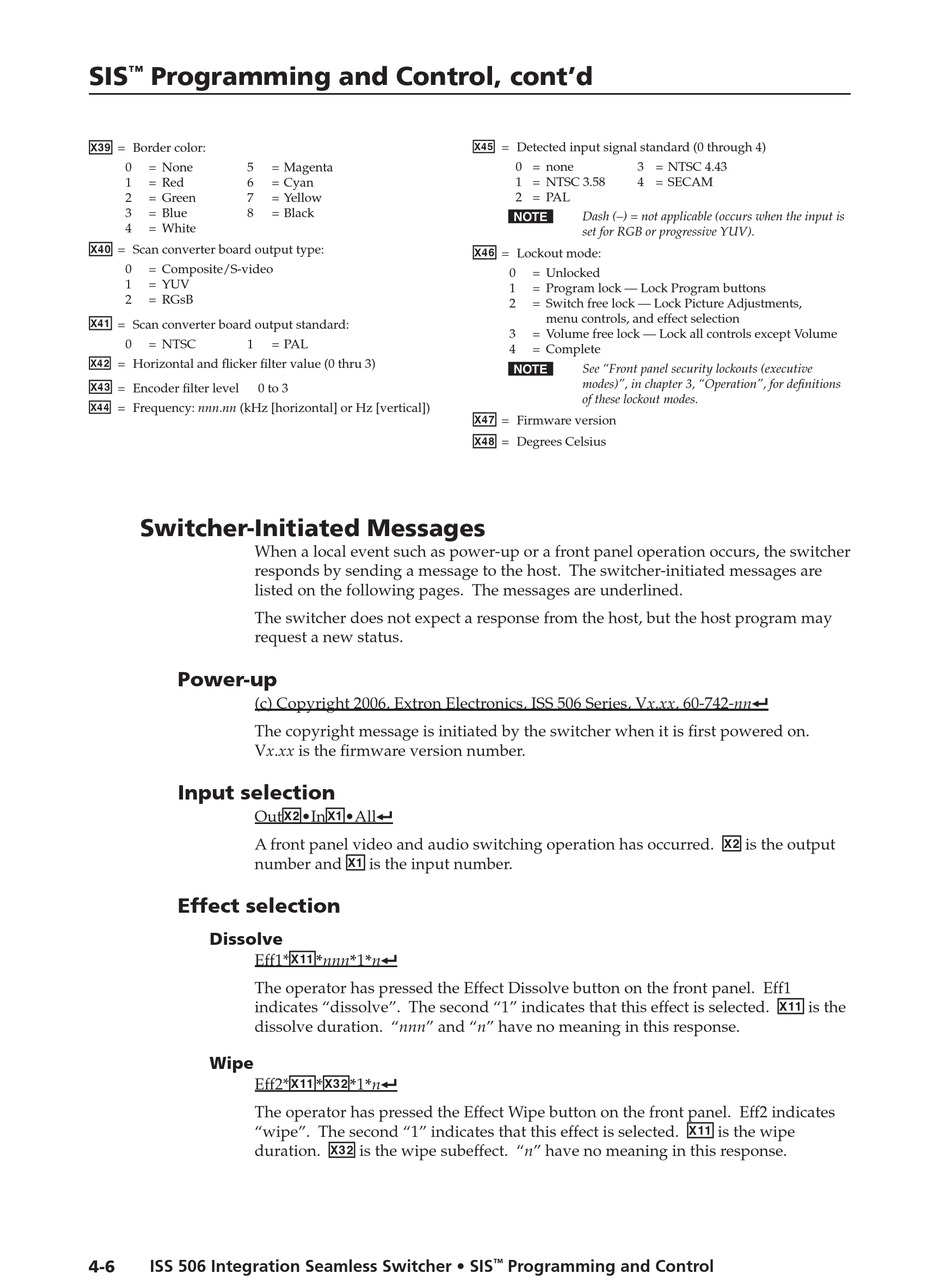

SIS Programming and Control, cont'd
™
X3(
= Border color:
0 = None 5 = Magenta
1 = Red 6 = Cyan
2 = Green 7 = Yellow
3 = Blue 8 = Black
4 = White
X4)
= Scan converter board output type:
0 = Composite/S-video
1 = YUV
2 = RGsB
X4!
= Scan converter board output standard:
0 = NTSC 1 = PAL
X4@
= Horizontal and flicker filter value (0 thru 3)
X4#
= Encoder filter level 0 to 3
X4$
= Frequency: nnn.nn (kHz [horizontal] or Hz [vertical])

Switcher-Initiated Messages

When a local event such as power-up or a front panel operation occurs, the switcher
responds by sending a message to the host. The switcher-initiated messages are
listed on the following pages. The messages are underlined.
The switcher does not expect a response from the host, but the host program may
request a new status.

Power-up

(c) Copyright 2006, Extron Electronics, ISS 506 Series, Vx.xx, 60-742-nn]
The copyright message is initiated by the switcher when it is first powered on.
Vx.xx is the firmware version number.

Input selection

Out
A front panel video and audio switching operation has occurred.
number and

Effect selection

Dissolve

Eff1*
The operator has pressed the Effect Dissolve button on the front panel. Eff1
indicates "dissolve". The second "1" indicates that this effect is selected.
dissolve duration. "nnn" and "n" have no meaning in this response.

Wipe

Eff2*
The operator has pressed the Effect Wipe button on the front panel. Eff2 indicates
"wipe". The second "1" indicates that this effect is selected.
duration.
4-6 ISS 506 Integration Seamless Switcher • SIS
X@ X!
•In •All]
X!
is the input number.
X1!
*nnn*1*n]
X1! X3@
* *1*n]
X3@
is the wipe subeffect. "n" have no meaning in this response.
X4%
= Detected input signal standard (0 through 4)
0 = none 3 = NTSC 4.43
1 = NTSC 3.58 4 = SECAM
2 = PAL
N Dash (–) = not applicable (occurs when the input is
set for RGB or progressive YUV).
X4^
= Lockout mode:
0 = Unlocked
1 = Program lock — Lock Program buttons
2 = Switch free lock — Lock Picture Adjustments,
menu controls, and effect selection
3 = Volume free lock — Lock all controls except Volume
4 = Complete
See "Front panel security lockouts (executive
N
modes)", in chapter 3, "Operation", for definitions
of these lockout modes.
X4&
= Firmware version
X4*
= Degrees Celsius
Programming and Control
™
X@
is the output
X1!
is the
X1!
is the wipe
