Adjust the Active Pixels variable to increase and decrease the number of active
pixels, shifting the starting period horizontally on the screen. Adjust the Active
Lines variable to increase and decrease the number of lines.
N Figure 3-7 shows an image whose active area is improperly set, as indicated by
the dashed lines. If the number of active image pixels that the scaler is set to
scale is less than the amount of actual active pixels that are input, the ISS scales
only the set active area and skips some of the input pixels. This early end to the
scaling process results in an output with fewer pixels than it should, and looks
as if the image is stretched horizontally.
Similarly, if the number of active image lines that the ISS is set to scale is less
than the amount of actual active lines that are input, the ISS scales only the
set active area and skips some of the input lines. This early end to the scaling
process results in an output that has fewer lines than it should, and looks as if
the image is stretched vertically.
Output Configuration menu

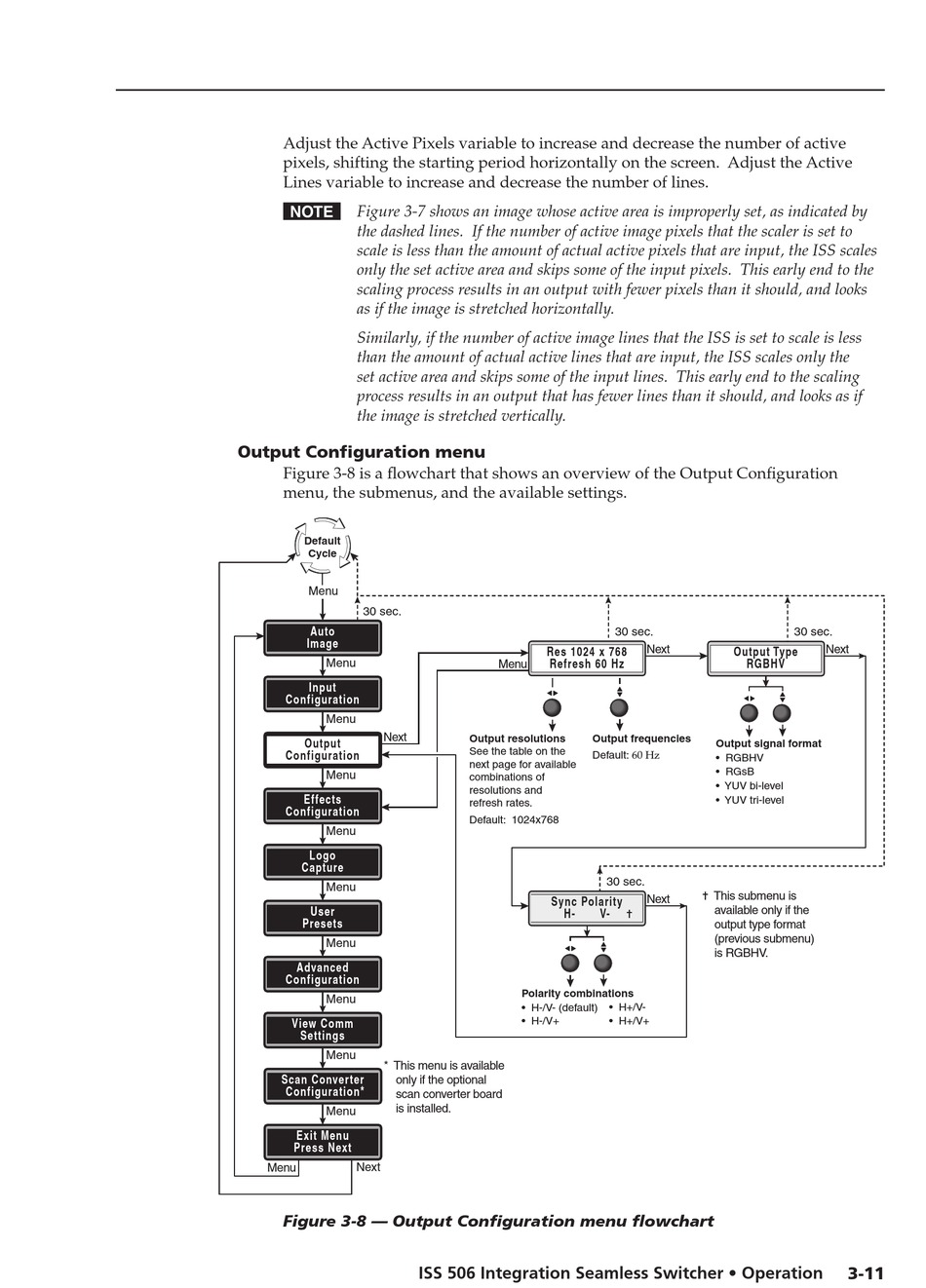

Figure 3-8 is a flowchart that shows an overview of the Output Configuration
menu, the submenus, and the available settings.
Default
Cycle
Menu
30 sec.
Auto
Menu
Input
Configuration
Menu
Next
Output
Configuration
Menu
Effects
Configuration
Menu
Logo
Capture
Menu
User
Presets
Menu
Advanced
Configuration
Menu
View Comm
Settings
Menu
* This menu is available
Scan Converter
only if the optional
*
Configuration
scan converter board
is installed.
Menu
Exit Menu
Press Next
Menu Next
Figure 3-8 — Output Configuration menu flowchart
ISS 506 Integration Seamless Switcher • Operation
30 sec.
Next
Res 1024 x 768
Refresh 60 Hz
Menu
Output resolutions Output frequencies
See the table on the
Default: 60 Hz
next page for available
combinations of
resolutions and
refresh rates.
Default: 1024x768
30 sec.
Next
Sync Polarity
H- V-
�
Polarity combinations
• H-/V- (default) • H+/V-
• H-/V+ • H+/V+
30 sec.
Next
Output Type
RGBHV
Output signal format
• RGBHV
• RGsB
• YUV bi-level
• YUV tri-level
� This submenu is
available only if the
output type format
(previous submenu)
is RGBHV.
3-11
