User Control Page

You can perform most of the front panel operations on the User Control page
(figure 6-11). Access the User Control page by clicking the Control tab.
The User Control page emulates the front panel of the ISS and displays the current
input selections and other settings available through the menu system. Additional
functions (audio breakaway and output mutes) are not available from the front
panel. See chapter 3, "Operation," for descriptions of most of the settings on this
page.
Refresh
Presets
PIP setup
Logos

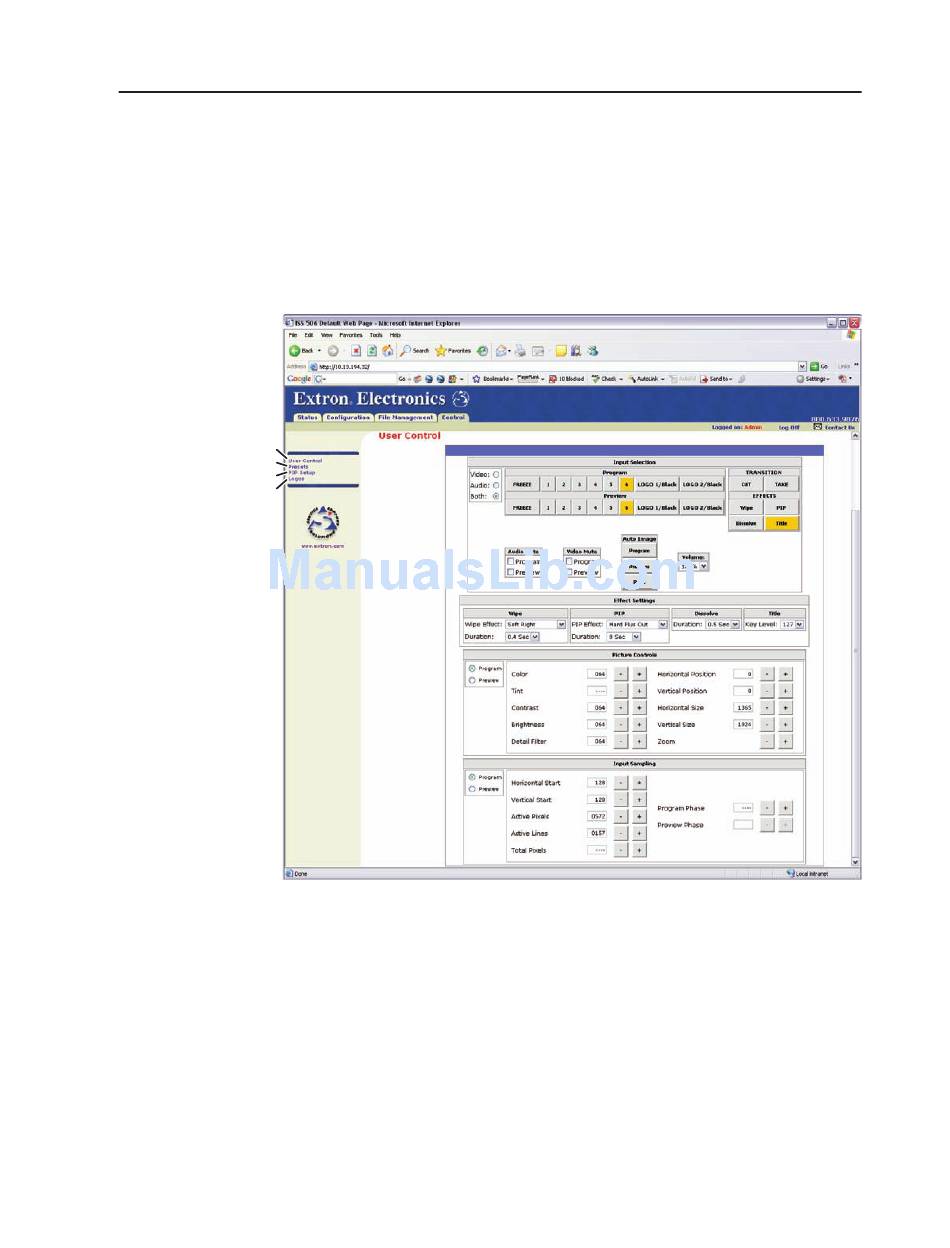

Figure 6-11 — User Control page
ISS 506 Integration Seamless Switcher • HTML Operation 6-13
