Operation, cont'd
Configuring a title
The ISS can display the input that is selected to be the preview output as a title.
N A title is preview output superimposed over the program output.
Remove (key out) unwanted portions of the title (such as backgrounds) as follows:
1.
2.

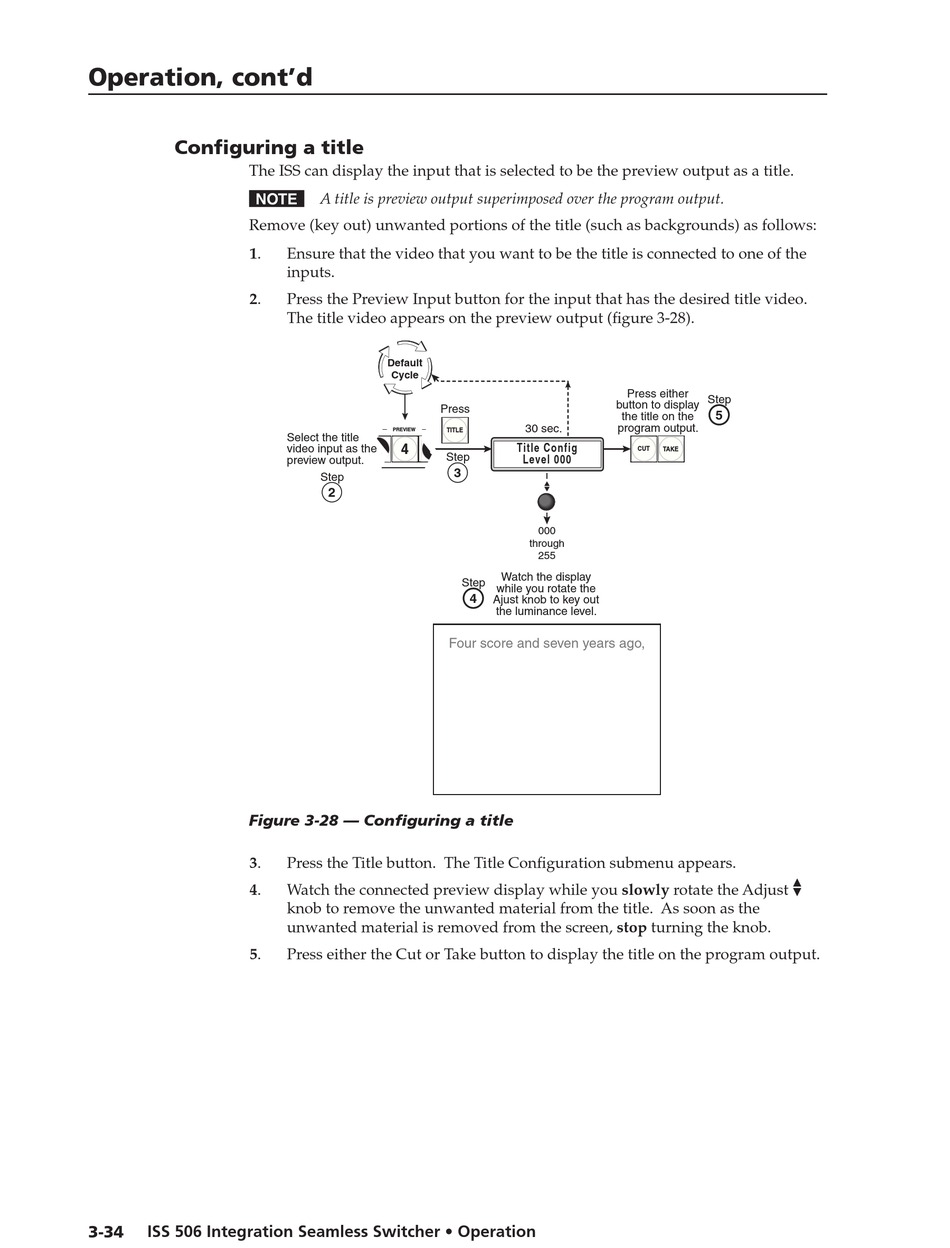

Figure 3-28 — Configuring a title
3.
4.
5.
3-34
ISS 506 Integration Seamless Switcher • Operation
Ensure that the video that you want to be the title is connected to one of the
inputs.
Press the Preview Input button for the input that has the desired title video.
The title video appears on the preview output (figure 3-28).
Default
Cycle
Press
TITLE
PREVIEW
Select the title
4 4
video input as the
Step
preview output.
3
Step
2
Step
Four score and seven years ago,
Press the Title button. The Title Configuration submenu appears.
Watch the connected preview display while you slowly rotate the Adjust
knob to remove the unwanted material from the title. As soon as the
unwanted material is removed from the screen, stop turning the knob.
Press either the Cut or Take button to display the title on the program output.
Press either
button to display
the title on the
program output.
30 sec.
Title Config
CUT
Level 000
000
through
255
Watch the display
while you rotate the
4
Ajust knob to key out
the luminance level.
Step
5
TAKE
{
