Switcher Software, cont'd

Time (local) field

The Time (local) field displays the current time in the local time zone. If necessary,
click on the Sync Date & Time to PC button to set the switcher to your computer's
internal time or else adjust the time manually as follows:
1.
2.
3.
4.

Daylight Savings check box

Click one of the Daylight Savings radio buttons to turn Daylight Savings Time on
or off. When Daylight Savings Time is on, the switcher automatically updates its
internal clock between Standard Time and Daylight Savings Time in the spring and
fall on the date that the time change occurs in the nation or region selected. When
Daylight Savings is turned off, the switcher does not adjust its time reference.

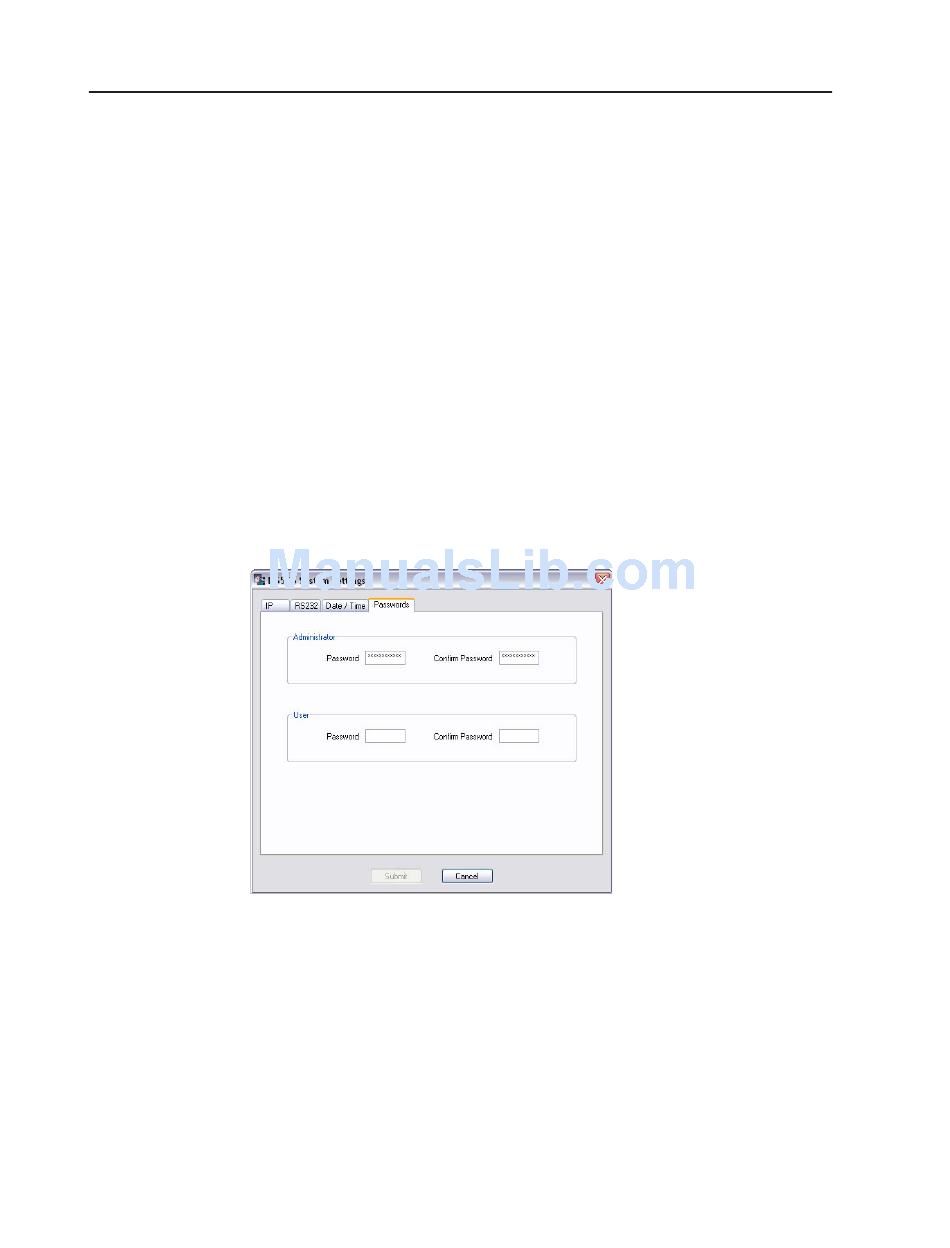

System Settings Passwords window

Figure 5-19 — System Settings Passwords window
The Password fields let you password-protect the ISS 506, so that a password
is required to log on via the LAN port and operate the switcher. Two levels of
password protection are available: administrator and user.
•
•
Passwords are case sensitive and are limited to 12 lowercase and lowercase
alphanumeric characters. These fields are masked with asterisks (****) as a security
measure.
5-18 ISS 506 Integration Seamless Switcher • Switcher Software
Click in the time field and highlight the desired portion (hours:minutes:
seconds [HH:MM:SS] (00:00:00 to 23:59:59). The graphic cursor becomes a text
cursor in the set time field.
Edit the field as desired to set the proper time. Remember to use 24-hour
time. Leading zeroes are optional.
Press the Tab key on the keyboard or click in another field to exit the set time
field.
Click the Take button to make the time change take affect.
The administrator level grants you the ability to see and edit most settings,
including sensitive system setup variables.
The user level grants you basic operational capabilities, without all of the
administrator's rights and privileges.
