Modifications, cont'd
5.

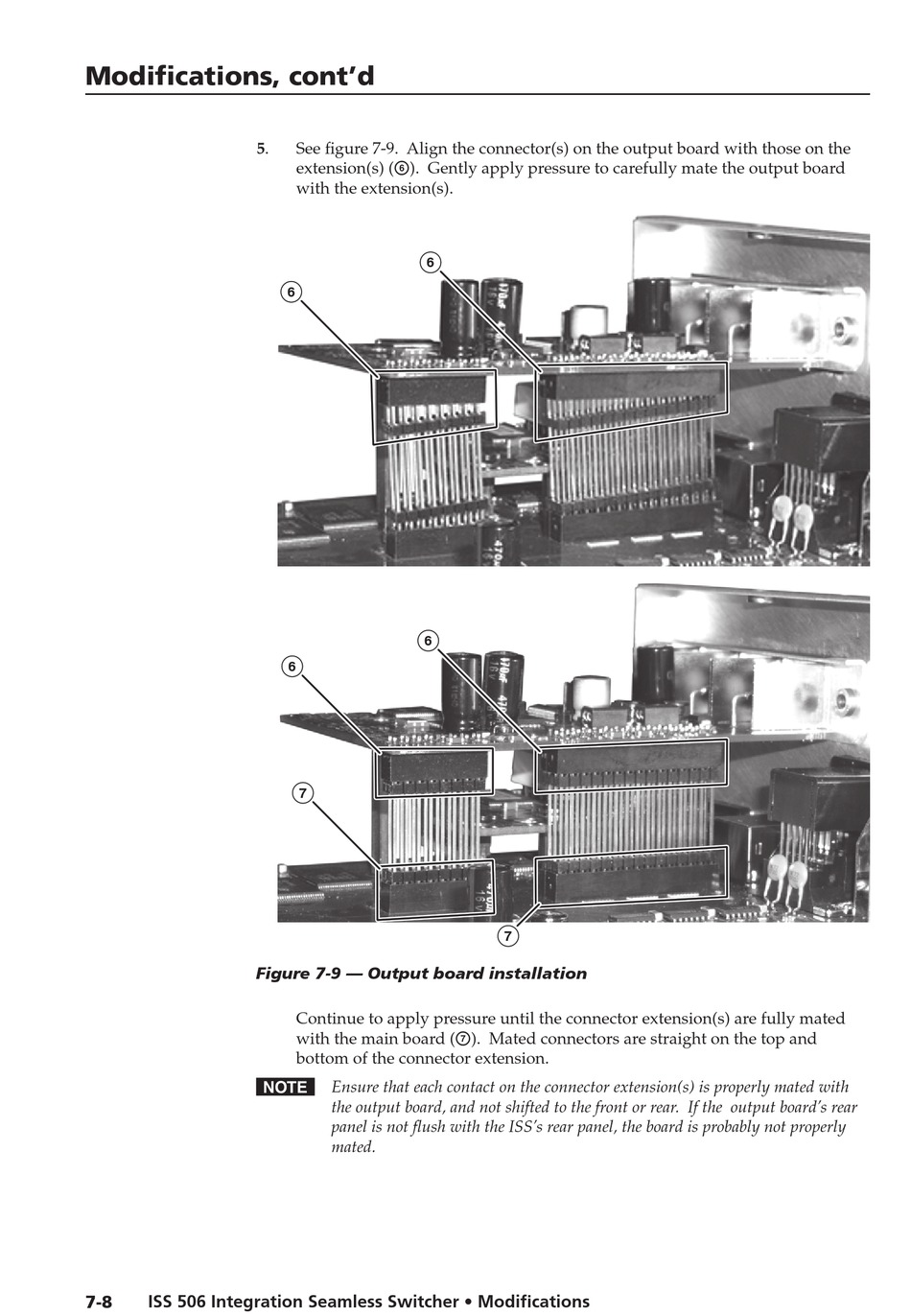

Figure 7-9 — Output board installation
N Ensure that each contact on the connector extension(s) is properly mated with
7-8 ISS 506 Integration Seamless Switcher • Modifications
See figure 7-9. Align the connector(s) on the output board with those on the
extension(s) ( f ). Gently apply pressure to carefully mate the output board
with the extension(s).
6
6
6
6
7
Continue to apply pressure until the connector extension(s) are fully mated
with the main board ( g ). Mated connectors are straight on the top and
bottom of the connector extension.
the output board, and not shifted to the front or rear. If the output board's rear
panel is not flush with the ISS's rear panel, the board is probably not properly
mated.
7
