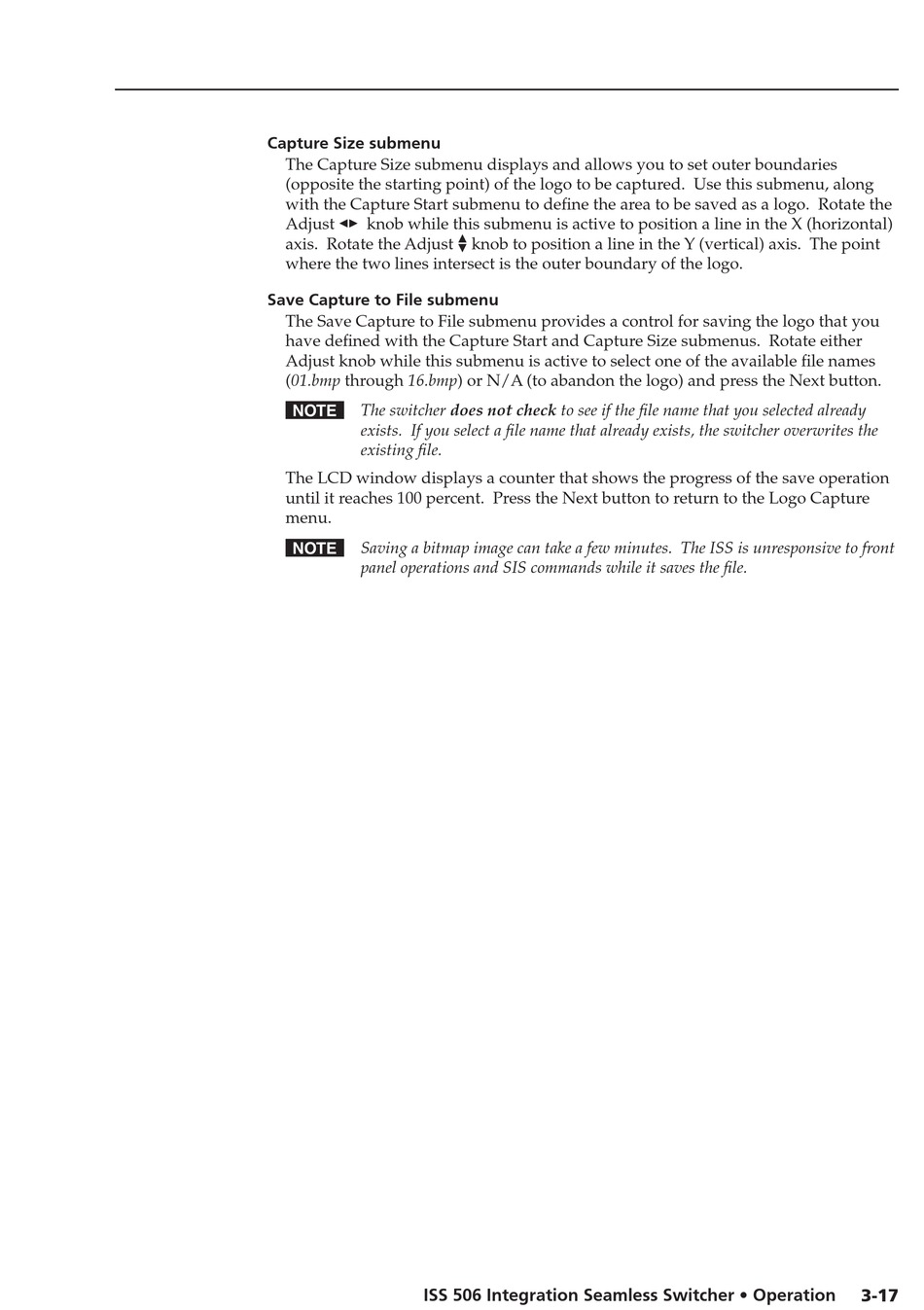

Capture Size submenu

The Capture Size submenu displays and allows you to set outer boundaries
(opposite the starting point) of the logo to be captured. Use this submenu, along
with the Capture Start submenu to define the area to be saved as a logo. Rotate the
Adjust [ knob while this submenu is active to position a line in the X (horizontal)
axis. Rotate the Adjust { knob to position a line in the Y (vertical) axis. The point
where the two lines intersect is the outer boundary of the logo.

Save Capture to File submenu

The Save Capture to File submenu provides a control for saving the logo that you
have defined with the Capture Start and Capture Size submenus. Rotate either
Adjust knob while this submenu is active to select one of the available file names
(01.bmp through 16.bmp) or N/A (to abandon the logo) and press the Next button.
N The switcher does not check to see if the file name that you selected already
exists. If you select a file name that already exists, the switcher overwrites the
existing file.
The LCD window displays a counter that shows the progress of the save operation
until it reaches 100 percent. Press the Next button to return to the Logo Capture
menu.
N Saving a bitmap image can take a few minutes. The ISS is unresponsive to front
panel operations and SIS commands while it saves the file.
ISS 506 Integration Seamless Switcher • Operation 3-17
