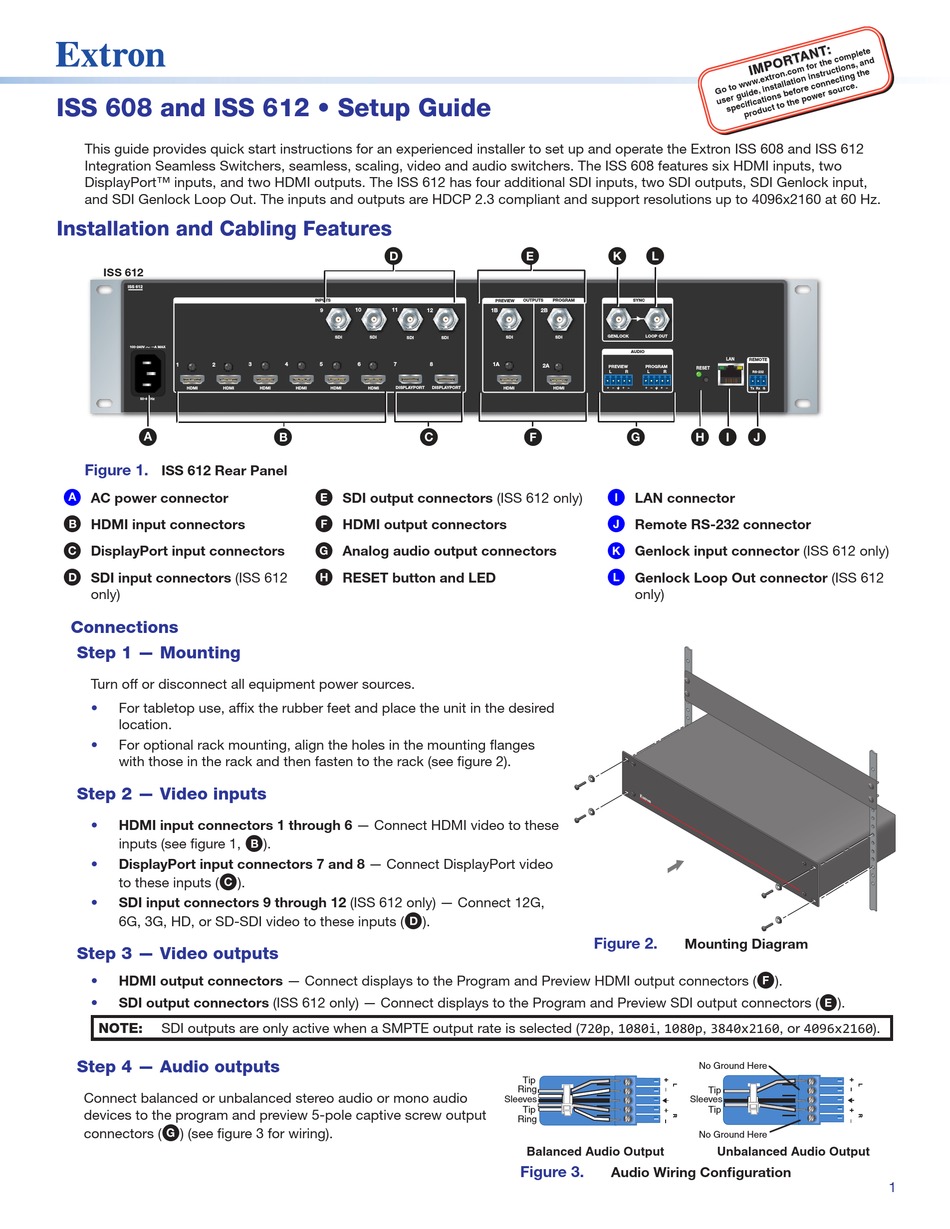

ISS 608 and ISS 612 • Setup Guide
This guide provides quick start instructions for an experienced installer to set up and operate the Extron ISS 608 and ISS 612
Integration Seamless Switchers, seamless, scaling, video and audio switchers. The ISS 608 features six HDMI inputs, two
DisplayPort™ inputs, and two HDMI outputs. The ISS 612 has four additional SDI inputs, two SDI outputs, SDI Genlock input,
and SDI Genlock Loop Out. The inputs and outputs are HDCP 2.3 compliant and support resolutions up to 4096x2160 at 60 Hz.
Installation and Cabling Features
ISS 612
ISS 612
100-240V --A MAX
1 2
HDMI
50-60 Hz
A A
Figure 1.
ISS 612 Rear Panel
A AC power connector
B
HDMI input connectors
C DisplayPort input connectors
D SDI input connectors (ISS 612
only)
Connections
Step 1 — Mounting
Turn off or disconnect all equipment power sources.
• For tabletop use, affix the rubber feet and place the unit in the desired
location.
• For optional rack mounting, align the holes in the mounting flanges
with those in the rack and then fasten to the rack (see figure 2).
Step 2 — Video inputs
HDMI input connectors 1 through 6 — Connect HDMI video to these
•
inputs (see figure 1,
DisplayPort input connectors 7 and 8 — Connect DisplayPort video
•
to these inputs ( C
• SDI input connectors 9 through 12 (ISS 612 only) — Connect 12G,
6G, 3G, HD, or SD-SDI video to these inputs (
Step 3 — Video outputs
HDMI output connectors — Connect displays to the Program and Preview HDMI output connectors (
•
• SDI output connectors (ISS 612 only) — Connect displays to the Program and Preview SDI output connectors (
SDI outputs are only active when a SMPTE output rate is selected (720p, 1080i, 1080p, 3840x2160, or 4096x2160).
NOTE:
Step 4 — Audio outputs
3/16" Max
Tip
(5mm)
Ring
Connect balanced or unbalanced stereo audio or mono audio
Sleeves
Tip
devices to the program and preview 5-pole captive screw output
Ring
connectors ( G ) (see figure 3 for wiring).
Do not tin the wires
Balanced Stereo Input
D D
INPUTS
9 10 11
SDI
SDI
3 4 5 6 7
HDMI HDMI DISPLAYPORT
HDMI HDMI HDMI
B B
E SDI output connectors (ISS 612 only)
F
HDMI output connectors
G Analog audio output connectors
H RESET button and LED
B ).
).
Tip
Sleeve
Tip
Sleeve
Unbalanced Stereo Input
E E
PREVIEW OUTPUTS PROGRAM
12 1B 2B
SDI SDI
SDI SDI
8 1A
2A
DISPLAYPORT
HDMI HDMI
C C F F
D
).
Tip
Ring
Sleeves
Tip
Ring
Balanced Audio Output
Figure 3.
K K L L
SYNC
GENLOCK LOOP OUT
AUDIO
LAN
REMOTE
PREVIEW PROGRAM
RESET
L R L R
RS-232
Tx Rx G
G G H H I I J J
I LAN connector
J
Remote RS-232 connector
K Genlock input connector (ISS 612 only)
L Genlock Loop Out connector (ISS 612
only)
Figure 2.
Mounting Diagram
F
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Unbalanced Audio Output
Audio Wiring Configuration
).
E ).
1
