Switcher Software, cont'd
7.

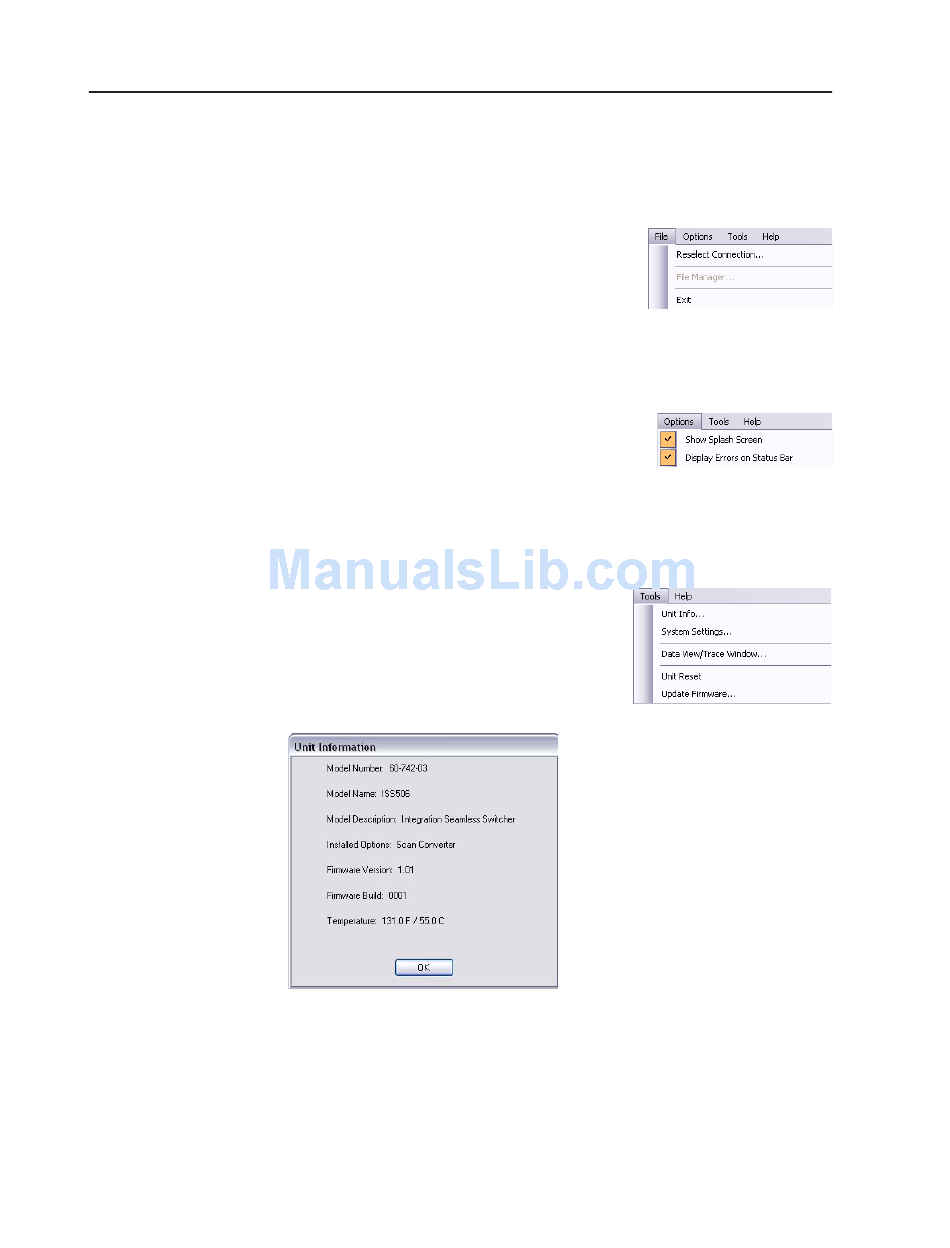

Windows menus

File menu
Reselect Connection ... — Disconnects computer
File Manager — Calls the IPL File Manager program, with which you can upload
Exit — Closes the ISS 506 Control Program.

Options menu

Show Splash Screen — Allows you to select (check) or
Display Errors on Status Bar — Allows you to select (check) or deselect (uncheck)

Tools menu

Unit Info — Pops up a window (figure 5-25) that
Figure 5-25 — Unit Information window
System Settings — Pops up the System Settings IP Settings window. See "System
Data View/Trace Window — Calls the trace log window (figure 5-26), which shows
5-24 ISS 506 Integration Seamless Switcher • Switcher Software
Delete images from the ISS by clicking on them, pressing the PC's Delete key,
and clicking Yes in the advisory box that appears.
from the ISS without closing the ISS 506 Control
Program. The Communication Type Selection
windows (figure 5-3) reappears.
or delete image files. See "Uploading images", on page 5-22.
deselect (uncheck) whether the ISS 506 Control
Program displays the startup picture when you
launch the program.
whether the ISS 506 Control Program shows errors on the status bar on the
bottom of the window.
provides basic information about the status
of the ISS, including the model name and
number, the installed daughterboards, the
firmware version and build, and the internal
temperature.
Settings windows", on page 5-13.
the serial communications, in ASCII and Hex, between the controller and the
ISS. Reference to this window can be helpful when writing your own control
scripts.
