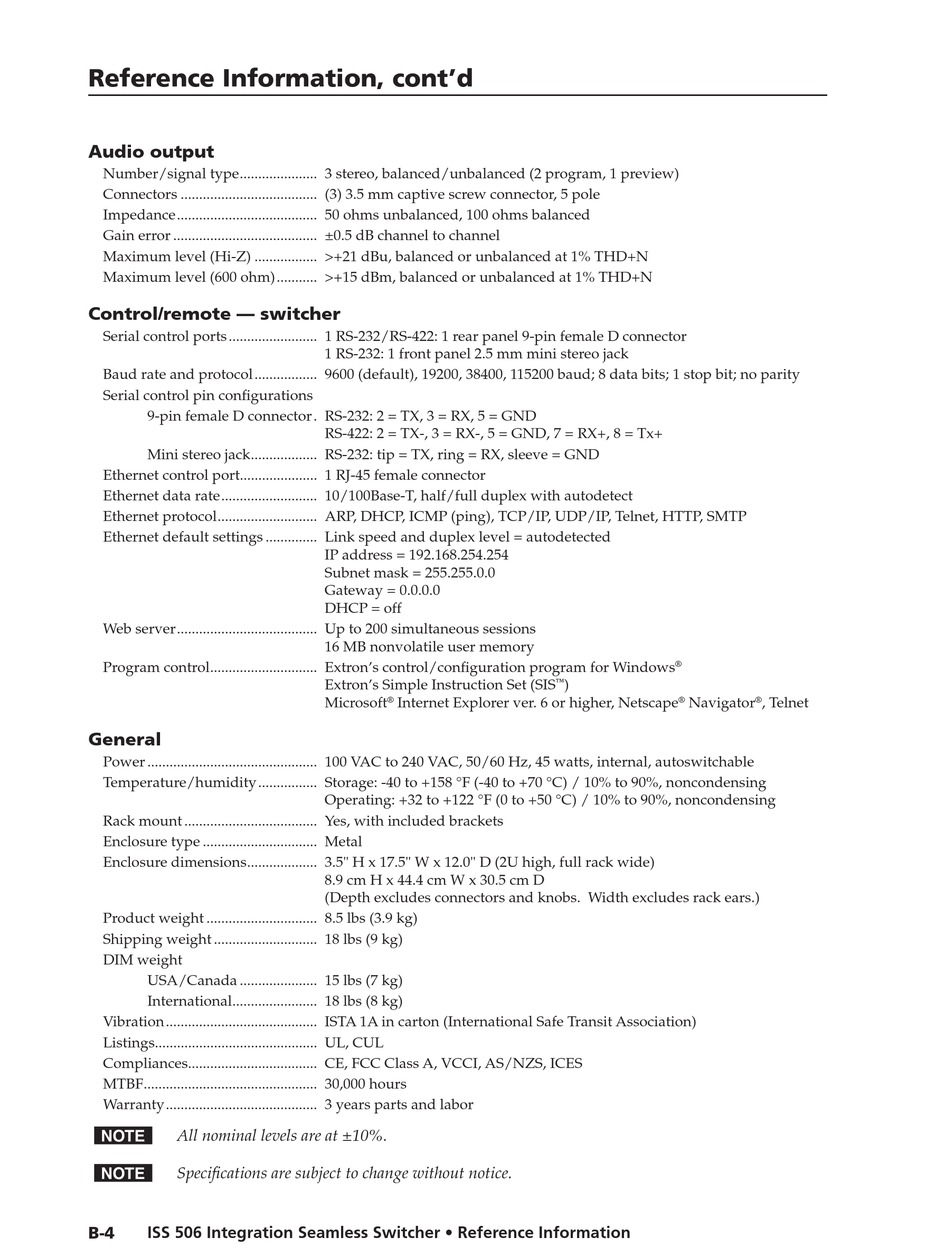

Reference Information, cont'd

Audio output

Number/signal type ..................... 3 stereo, balanced/unbalanced (2 program, 1 preview)
Connectors ..................................... (3) 3.5 mm captive screw connector, 5 pole
Impedance ...................................... 50 ohms unbalanced, 100 ohms balanced
Gain error ....................................... ±0.5 dB channel to channel
Maximum level (Hi-Z) ................. >+21 dBu, balanced or unbalanced at 1% THD+N
Maximum level (600 ohm) ........... >+15 dBm, balanced or unbalanced at 1% THD+N
Control/remote — switcher
Serial control ports ........................ 1 RS-232/RS-422: 1 rear panel 9-pin female D connector
Baud rate and protocol ................. 9600 (default), 19200, 38400, 115200 baud; 8 data bits; 1 stop bit; no parity
Serial control pin configurations
9-pin female D connector . RS-232: 2 = TX, 3 = RX, 5 = GND
Mini stereo jack .................. RS-232: tip = TX, ring = RX, sleeve = GND
Ethernet control port..................... 1 RJ-45 female connector
Ethernet data rate .......................... 10/100Base-T, half/full duplex with autodetect
Ethernet protocol ........................... ARP, DHCP, ICMP (ping), TCP/IP, UDP/IP, Telnet, HTTP, SMTP
Ethernet default settings .............. Link speed and duplex level = autodetected
Web server ...................................... Up to 200 simultaneous sessions
Program control ............................. Extron's control/configuration program for Windows
General
Power .............................................. 100 VAC to 240 VAC, 50/60 Hz, 45 watts, internal, autoswitchable
Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Rack mount .................................... Yes, with included brackets
Enclosure type ............................... Metal
Enclosure dimensions ................... 3.5" H x 17.5" W x 12.0" D (2U high, full rack wide)
Product weight .............................. 8.5 lbs (3.9 kg)
Shipping weight ............................ 18 lbs (9 kg)
DIM weight
USA/Canada ..................... 15 lbs (7 kg)
International ....................... 18 lbs (8 kg)
Vibration ......................................... ISTA 1A in carton (International Safe Transit Association)
Listings............................................ UL, CUL
Compliances ................................... CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF ............................................... 30,000 hours
Warranty ......................................... 3 years parts and labor
N All nominal levels are at ±10%.
Specifications are subject to change without notice.
N
B-4 ISS 506 Integration Seamless Switcher • Reference Information
1 RS-232: 1 front panel 2.5 mm mini stereo jack
RS-422: 2 = TX-, 3 = RX-, 5 = GND, 7 = RX+, 8 = Tx+
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Gateway = 0.0.0.0
DHCP = off
16 MB nonvolatile user memory
Extron's Simple Instruction Set (SIS
Microsoft Internet Explorer ver. 6 or higher, Netscape
®
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
8.9 cm H x 44.4 cm W x 30.5 cm D
(Depth excludes connectors and knobs. Width excludes rack ears.)
®
)
™
Navigator
®
, Telnet
®
