Programming and Control

™

Serial Links

The switcher has two serial ports that can be connected to a host device such as a
computer running the HyperTerminal utility, an RS-232 capable PDA, or a control
system. These ports make serial control of the switcher possible. The serial ports
are:
•
•
The default protocol for all ports is as follows:
•
•
The ports can be configured to operate at the 9600, 19200, 38400, or 115200 baud
rate.
N
Rear panel RS-232/RS-422 port

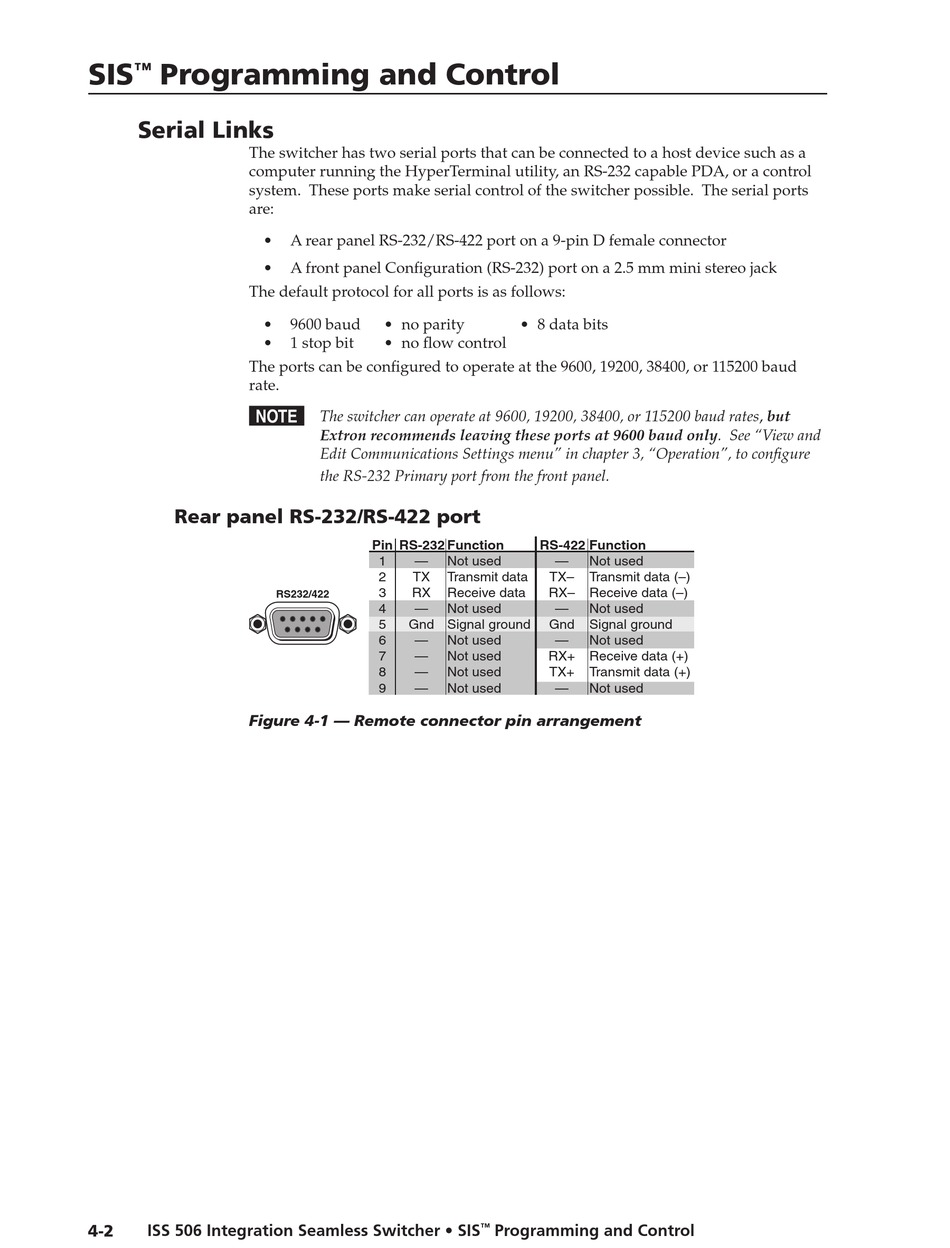

Figure 4-1 — Remote connector pin arrangement
4-2 ISS 506 Integration Seamless Switcher • SIS
A rear panel RS-232/RS-422 port on a 9-pin D female connector
A front panel Configuration (RS-232) port on a 2.5 mm mini stereo jack
9600 baud • no parity
1 stop bit • no flow control
The switcher can operate at 9600, 19200, 38400, or 115200 baud rates, but
Extron recommends leaving these ports at 9600 baud only. See "View and
Edit Communications Settings menu" in chapter 3, "Operation", to configure
the RS-232 Primary port from the front panel.
Pin RS-232 Function
1 — Not used
2 TX Transmit data
3 RX Receive data
RS232/422
4 — Not used
5 Gnd Signal ground
6 — Not used
7 — Not used
8 — Not used
9 — Not used
• 8 data bits
RS-422 Function
— Not used
TX– Transmit data (–)
RX– Receive data (–)
— Not used
Gnd Signal ground
— Not used
RX+ Receive data (+)
TX+ Transmit data (+)
— Not used
