HTML Operation, cont'd
Use the
shift; horizontal and vertical size; and the flicker, horizontal, and encoder filters (or
use the dropboxes for the filters).

Passwords page

Access the Passwords page (figure 6-7) by clicking the Passwords link on the
System Settings page.
System Settings
Refresh
Scan Converter Board*
Passwords
Email Alerts
Firmware Upgrade
* The Scan Converter Board link is available only if the optional scan converter output board is

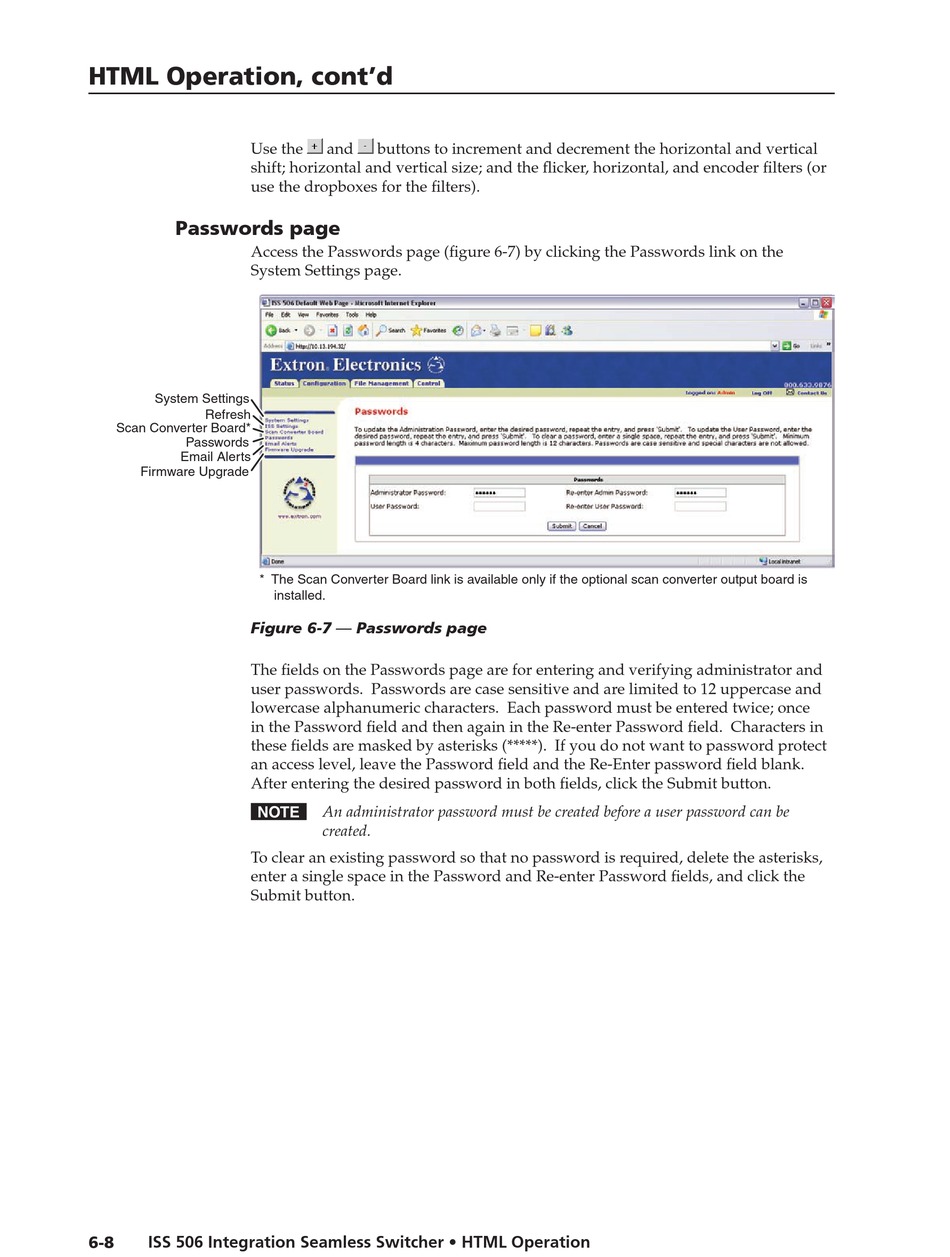

Figure 6-7 — Passwords page
The fields on the Passwords page are for entering and verifying administrator and
user passwords. Passwords are case sensitive and are limited to 12 uppercase and
lowercase alphanumeric characters. Each password must be entered twice; once
in the Password field and then again in the Re-enter Password field. Characters in
these fields are masked by asterisks (*****). If you do not want to password protect
an access level, leave the Password field and the Re-Enter password field blank.
After entering the desired password in both fields, click the Submit button.
N An administrator password must be created before a user password can be
To clear an existing password so that no password is required, delete the asterisks,
enter a single space in the Password and Re-enter Password fields, and click the
Submit button.
6-8 ISS 506 Integration Seamless Switcher • HTML Operation
and buttons to increment and decrement the horizontal and vertical
installed.
created.
