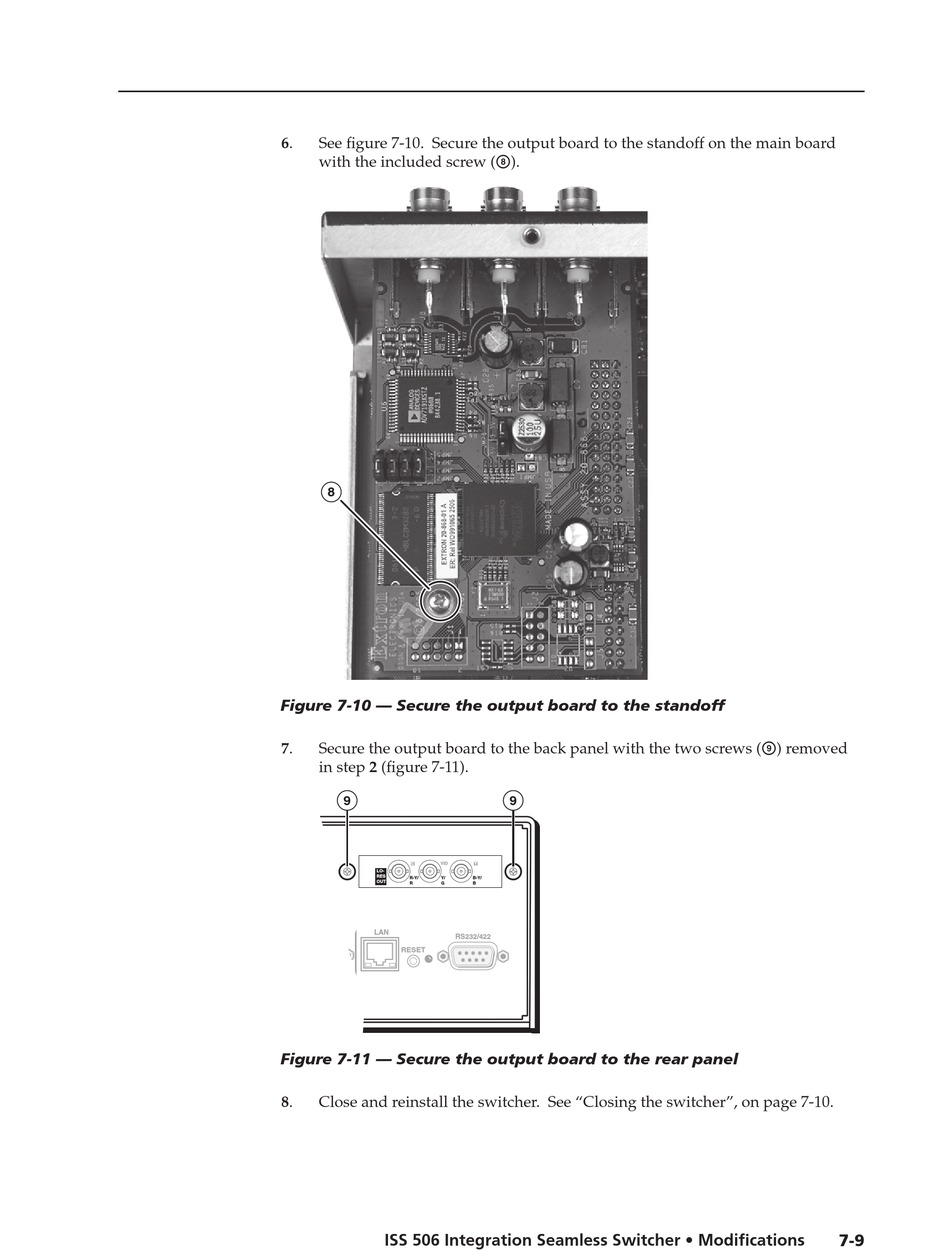

6.
See figure 7-10. Secure the output board to the standoff on the main board
with the included screw (
8
Figure 7-10 — Secure the output board to the standoff
7.
Secure the output board to the back panel with the two screws (
in step 2 (figure 7-11).
9
C
VID
LO-
RES
R-Y/
Y/
OUT
R
G
LAN
RS232/422
RESET
Figure 7-11 — Secure the output board to the rear panel
8.
Close and reinstall the switcher. See "Closing the switcher", on page 7-10.
ISS 506 Integration Seamless Switcher • Modifications
h
).
9
Y
B-Y/
B
i
) removed
7-9
