Switcher Software, cont'd
6.
7.

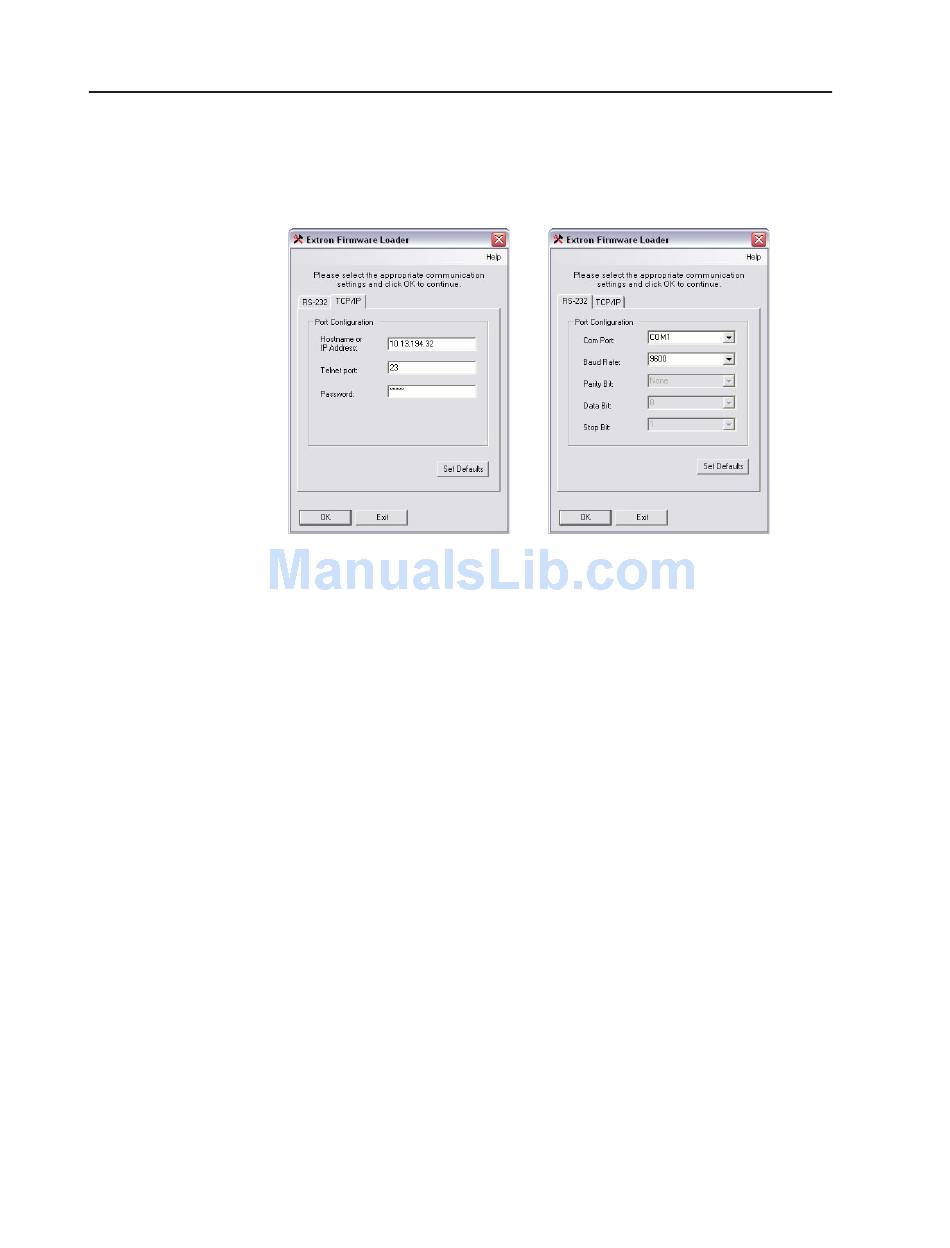

Figure 5-21 — Firmware Loader port selection and configuration
8.
9.
5-20 ISS 506 Integration Seamless Switcher • Switcher Software
Start the ISS 506 Control Program. See "Using the software", steps 1 through
4, starting on page 5-4.
Click Tools > Update firmware. The Extron Firmware Loader port
configuration window appears (figure 5-21).
If necessary, click either the RS-232 or TCP/IP tab to select the type of
interface you are using.
Enter the appropriate parameters for the type of interface that you are using.
• For an RS-232 port connection, select the Comm port to which the ISS is
connected and the baud rate.
• For an Ethernet (TCP/IP) connection, enter the ISS's IP address and (if
the switcher is protected) the administrator password.
