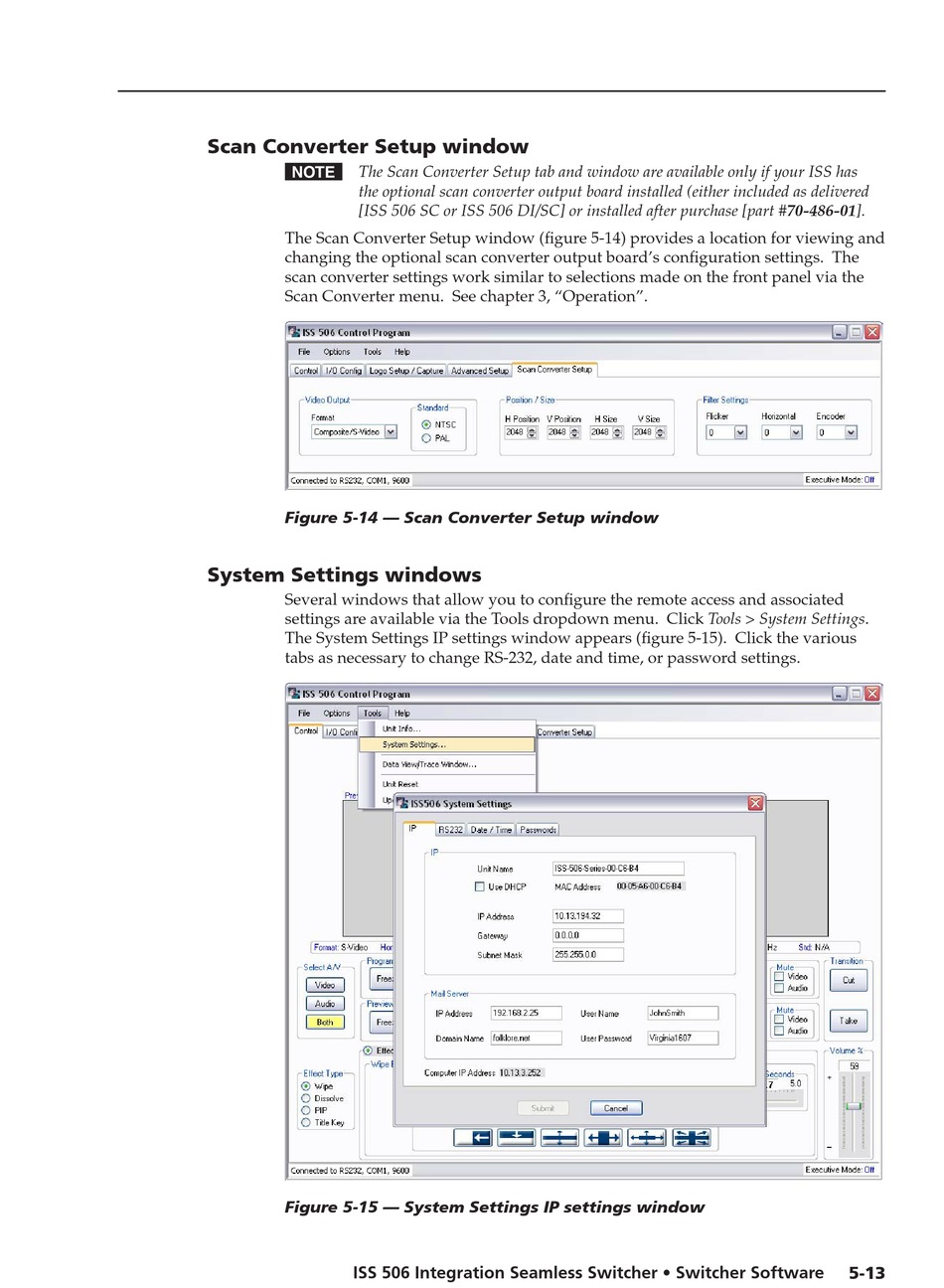

Scan Converter Setup window
N The Scan Converter Setup tab and window are available only if your ISS has
the optional scan converter output board installed (either included as delivered
[ISS 506 SC or ISS 506 DI/SC] or installed after purchase [part #70-486-01].
The Scan Converter Setup window (figure 5-14) provides a location for viewing and
changing the optional scan converter output board's configuration settings. The
scan converter settings work similar to selections made on the front panel via the
Scan Converter menu. See chapter 3, "Operation".
Figure 5-14 — Scan Converter Setup window

System Settings windows

Several windows that allow you to configure the remote access and associated
settings are available via the Tools dropdown menu. Click Tools > System Settings.
The System Settings IP settings window appears (figure 5-15). Click the various
tabs as necessary to change RS-232, date and time, or password settings.
Figure 5-15 — System Settings IP settings window
ISS 506 Integration Seamless Switcher • Switcher Software 5-13
