Mounting instructions

For optional rack mounting, do not install the rubber feet. Mount the ISS 506 in a
rack as follows:
1. Attach the included MBD 249 rack/through-desk mounting brackets
(part #70-155-01) to the unit, using eight machine screws supplied with the
mounting kit (figure 2-1). Use the lower screw holes in the brackets.
MBD 249
2-U Rack Mount
Bracket (use four
lower holes)

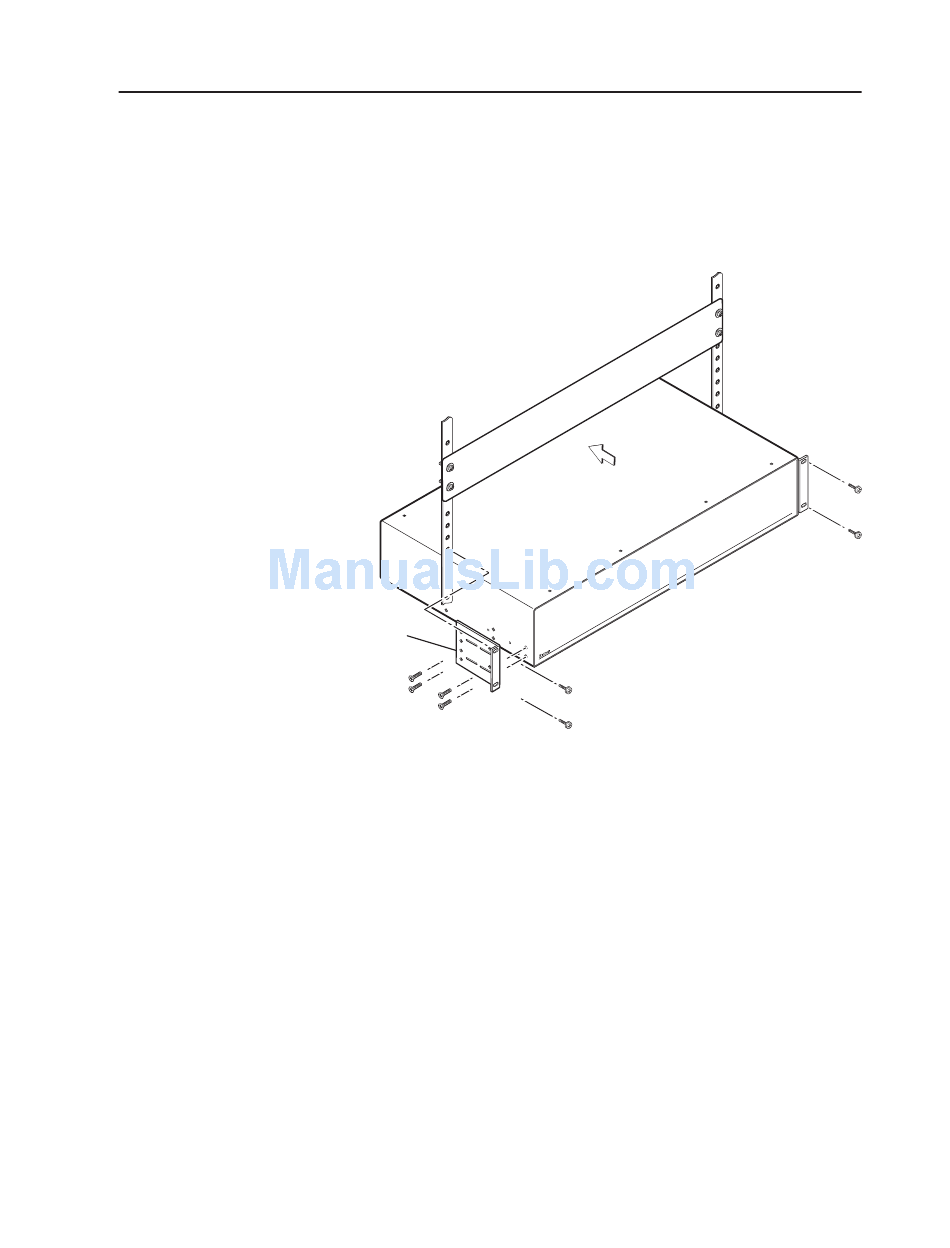

Figure 2-1 — Mounting the seamless switcher
2. Insert the unit into the rack and align the holes in the mounting brackets with
the holes in the rack. Use four machine screws to attach the brackets to the
rack.
ISS 506 Integration Seamless Switcher • Installation 2-3
