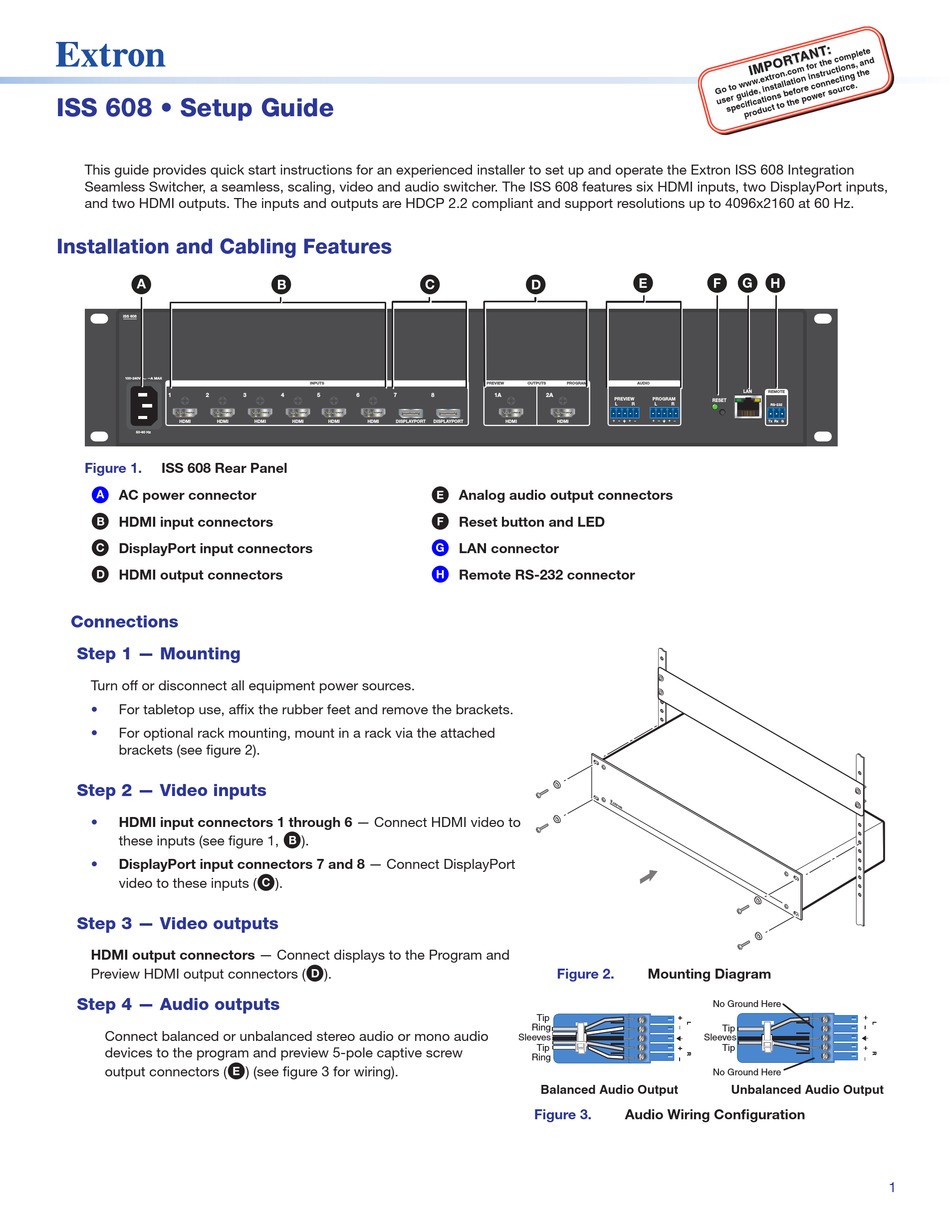

ISS 608 • Setup Guide

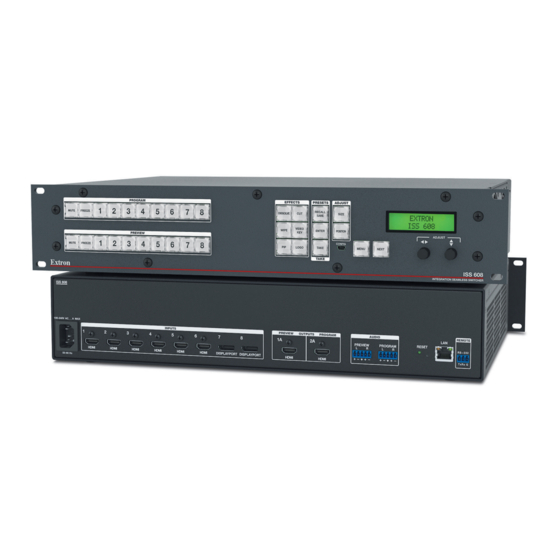

This guide provides quick start instructions for an experienced installer to set up and operate the Extron ISS 608 Integration
Seamless Switcher, a seamless, scaling, video and audio switcher. The ISS 608 features six HDMI inputs, two DisplayPort inputs,
and two HDMI outputs. The inputs and outputs are HDCP 2.2 compliant and support resolutions up to 4096x2160 at 60 Hz.
Installation and Cabling Features
A A
ISS 608
100-240V --A MAX
1 2
HDMI HDMI
50-60 Hz
Figure 1. ISS 608 Rear Panel
A AC power connector
B HDMI input connectors
C DisplayPort input connectors
D HDMI output connectors
Connections
Step 1 — Mounting
Turn off or disconnect all equipment power sources.
• For tabletop use, affix the rubber feet and remove the brackets.
• For optional rack mounting, mount in a rack via the attached
brackets (see figure 2).
Step 2 — Video inputs
• HDMI input connectors 1 through 6 — Connect HDMI video to
these inputs (see figure 1,
• DisplayPort input connectors 7 and 8 — Connect DisplayPort
video to these inputs (
Step 3 — Video outputs
HDMI output connectors — Connect displays to the Program and
Preview HDMI output connectors (
Step 4 — Audio outputs
3/16" Max
Tip
(5mm)
Ring
Connect balanced or unbalanced stereo audio or mono audio
Sleeves
Tip
devices to the program and preview 5-pole captive screw
Ring
E
output connectors (
Do not tin the wires
Balanced Stereo Input
B B C C
INPUTS
3 4 5 6 7
HDMI HDMI HDMI HDMI DISPLAYPORT
B ).
C ).
D ).
Tip
Sleeve
Tip
Sleeve
) (see figure 3 for wiring).
Unbalanced Stereo Input
D D
PREVIEW OUTPUTS PROGRAM
8 1A 2A
DISPLAYPORT HDMI HDMI
E Analog audio output connectors
F Reset button and LED
G LAN connector
H Remote RS-232 connector
Figure 2.
Tip
Ring
Sleeves
Tip
Ring
Balanced Audio Output
Figure 3.
E E F F G G H H
AUDIO
LAN
REMOTE
PREVIEW PROGRAM
RESET
L R L R
RS-232
Tx Rx G
Mounting Diagram
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Unbalanced Audio Output
Audio Wiring Configuration
