SERVICING INFORMATION 9-43
Conventional bolt

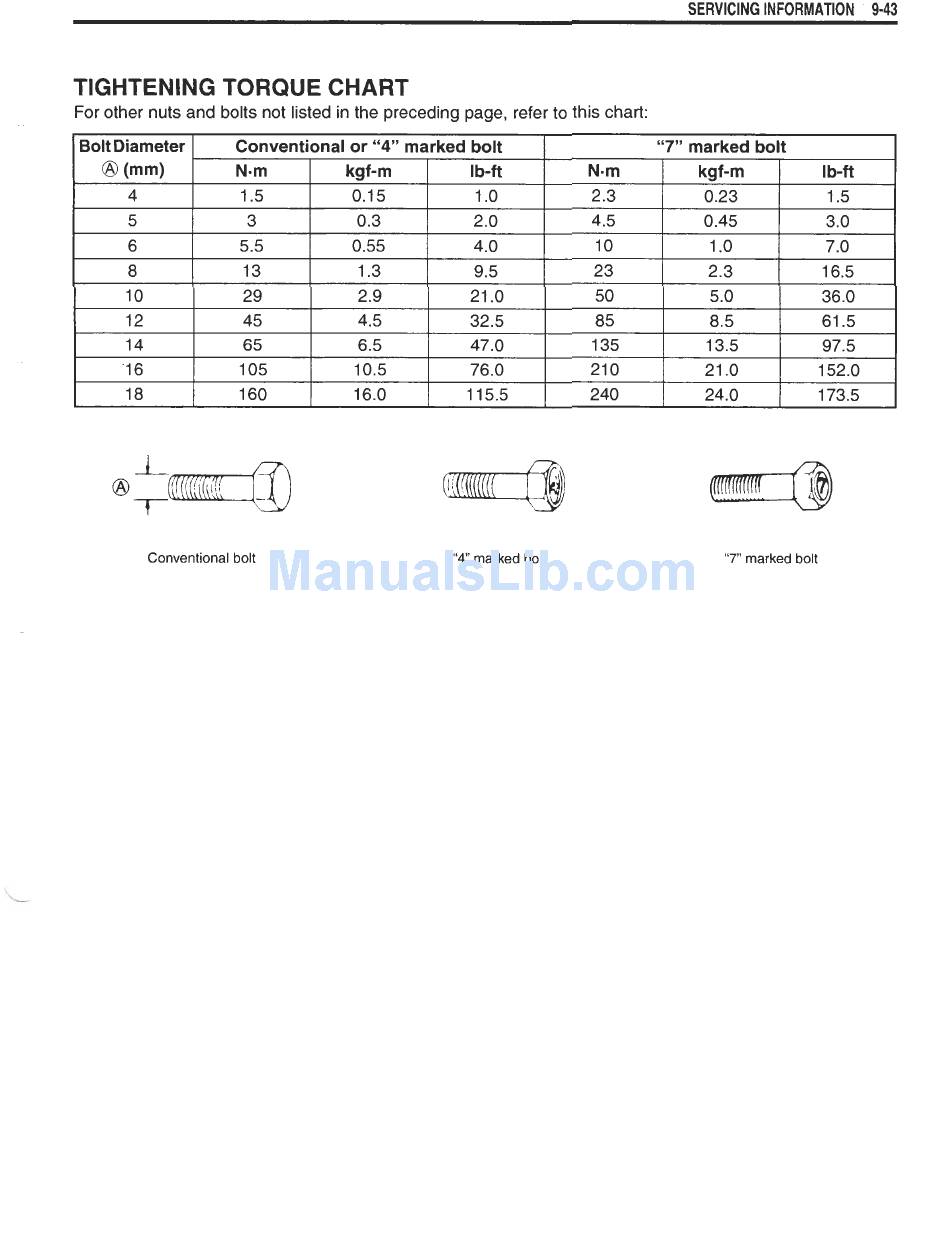

TIGHTENING TORQUE CHART
For other nuts and bolts not listed in the preceding page, refer to this chart:
"4" marked bolt
Bolt Diameter
@
(mm)
4
5
6
8
10
12
14
'1 6
18
"7" marked bolt
Conventional or
"4"
marked bolt
"7" marked bolt
I b-ft
1 .O
2.0
4.0
9.5
21 .O
32.5
47.0
76.0
1 15.5
N-m
1.5
3
5.5
13
29
45
65
105
160
kgf-m
0.15
0.3
0.55
1.3
2.9
4.5
6.5
10.5
16.0
I b-ft
1.5
3.0
7.0
16.5
36.0
61.5
97.5
152.0
173.5
N-m
2.3
4.5
10
23
50
85
135
21 0
240
kgf-m
0.23
0.45
1 .O
2.3
5.0
8.5
13.5
21 .O
24.0
