TM 10-7360-226-13&P
CONTAINERIZED KITCHEN (CK) 0005 00
DESCRIPTION OF OPERATOR CONTROLS AND INDICATORS
WATER WATER OVEN HEATER
PUMP HEATER FAN FAN
2
ON ON ON ON
1
OFF OFF OFF
OFF
3
5
4
6

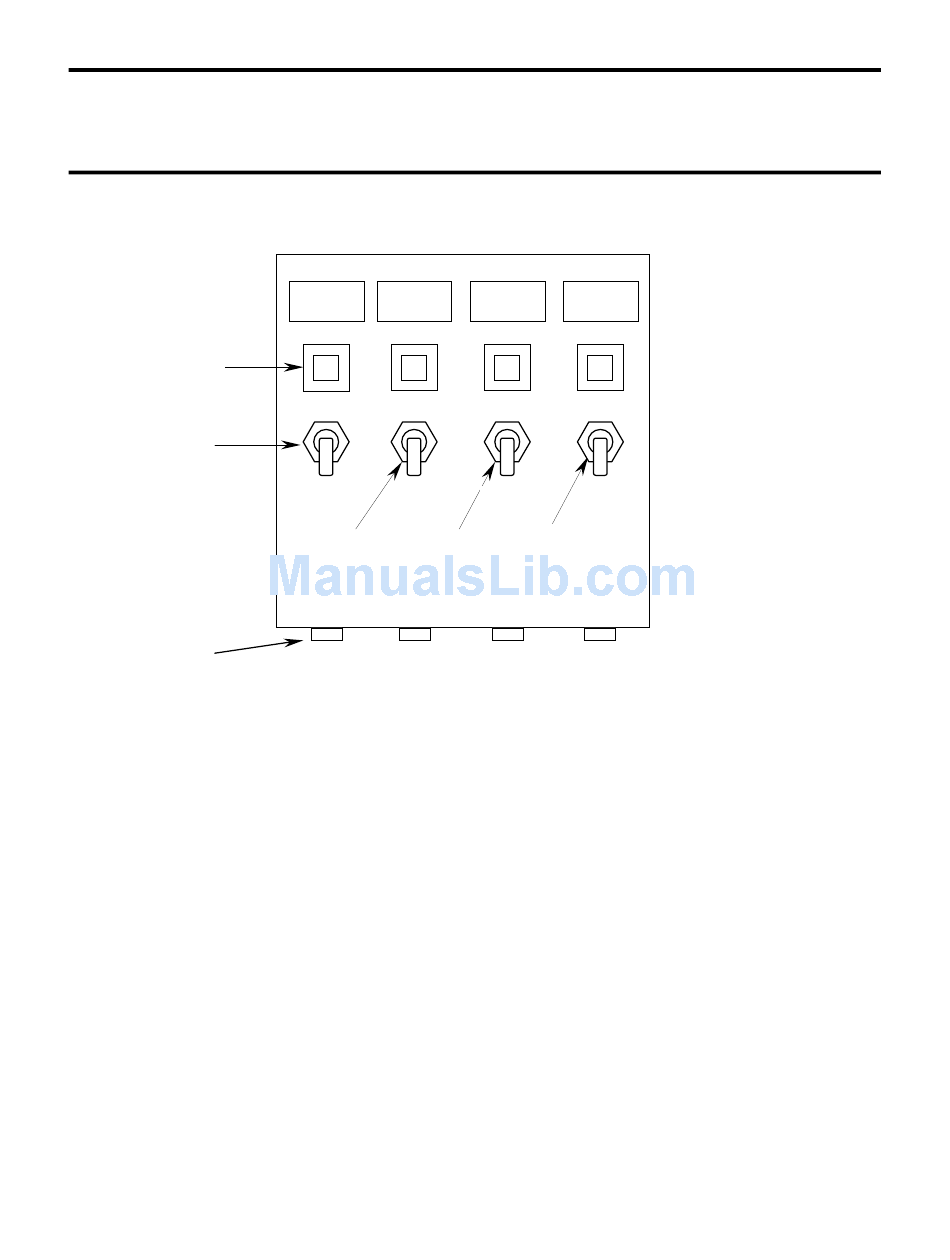

Figure 7. Appliance Control Box.
Cook Center Ventilation
The cook center exhaust hood intake and exhaust fans are controlled together by a single wall-
mounted, rotary speed-control switch, Figure 8, located in the food preparation area (to the right
of the spice rack). Rotating the control knob clockwise turns on and increases the speed of both
fans. Rotating the knob fully counter-clockwise turns off the fans.
