CONTAINERIZED KITCHEN (CK)
DESCRIPTION OF OPERATOR CONTROLS AND INDICATORS
Power Distribution Panel
The Power Distribution Panel (PDP), Figure 2, is located on the mechanical room wall in the
serving area. The panel houses the circuit breakers that control the distribution of electrical
power within the kitchen. The circuit breakers are normally closed (ON) and are only opened
(turned OFF) to isolate circuits for maintenance or troubleshooting. If an electrical malfunction
occurs, the breaker in the affected circuit trips (opens) to isolate the affected circuit.
INPUT POWER
REFRIGERATOR 1
REFRIGERATOR 2
MBU CONVERTER
ENVIRONMENTAL
CONTROL UNIT
LIGHTS
TM 10-7360-226-13&P

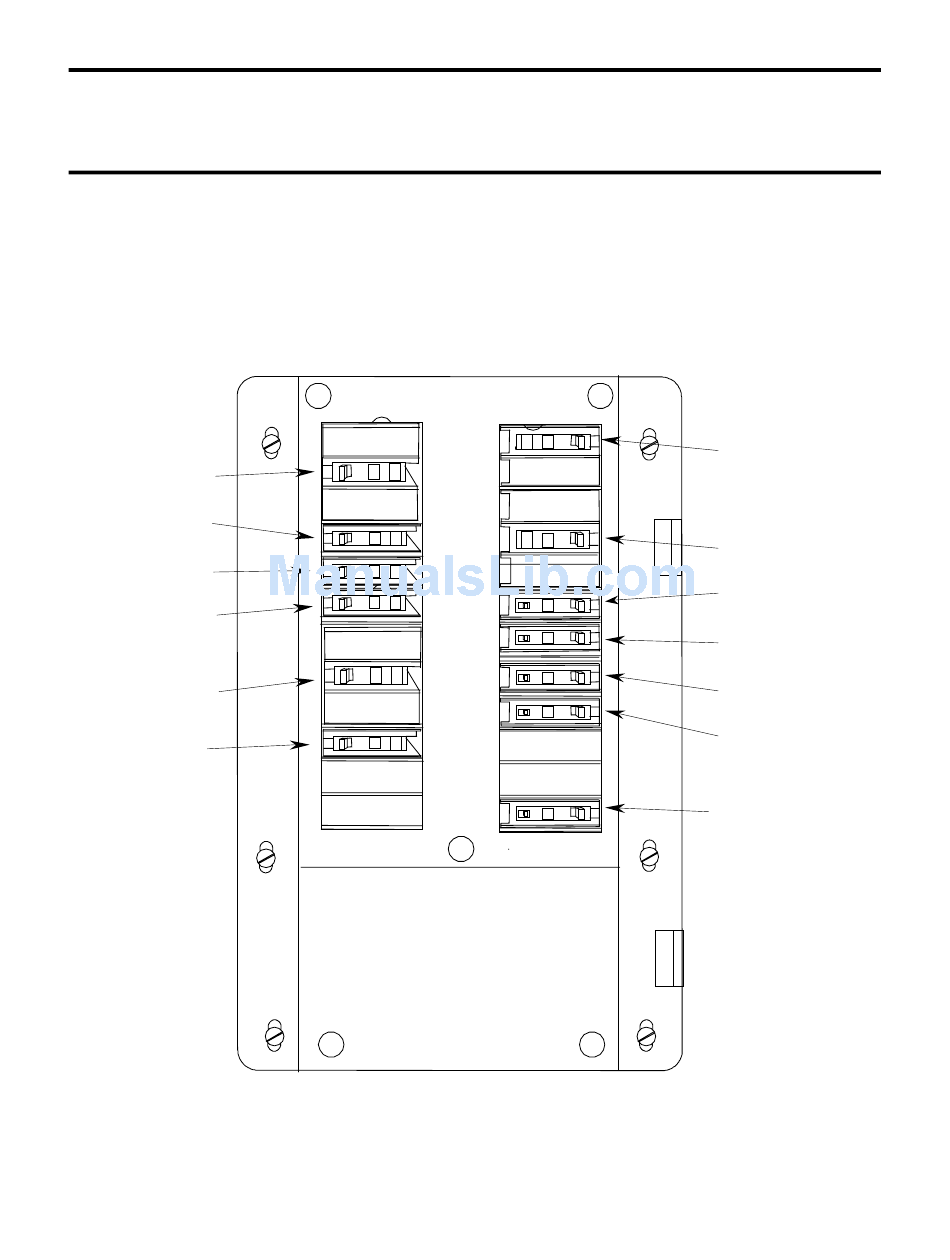

Figure 2. Power Distribution Panel.
0005 00-2
0005 00
INTAKE AND
EXHAUST FANS
HEATER
CONVENIENCE
OUTLETS
MECHANICAL
ROOM OUTLET
WARMING CABINET
ECU CONTROL BOX
APPLIANCE
CONTROL BOX
