CONTAINERIZED KITCHEN (CK)
EQUIPMENT DESCRIPTION AND DATA
Cook Center Assembly
The cook center assembly, Figure 9, houses four MBUs over which any two of the following can
be placed: the griddle, the steam table and adapter top, or two cook pot cradle adapters and
cook pot cradles. Any of these items can be set up on either half of the cook center. The cook
center includes a base foundation with storage areas, and mounts the serving line tray slide.
COOK POT CRADLES OR STEAM
TABLE/ADAPTER TOP
GRIDDLE & SPLASH GUARDS
Cook Pot Assembly
The cook pot assembly, Figure 10, allows the use of a cook pot while the cook center is
configured with the griddle and steam table. The assembly consists of a base rack; a burner
rack; and one of the cook pot cradle adapters, cook pot cradles, and MBUs. The assembly can
be placed at the end of the cook center or to the left of the dual oven assembly, where there are
fuel and electrical connections for the MBU.
TM 10-7360-226-13&P
STEAM TABLE AND ADAPTER TOP NOT SHOWN

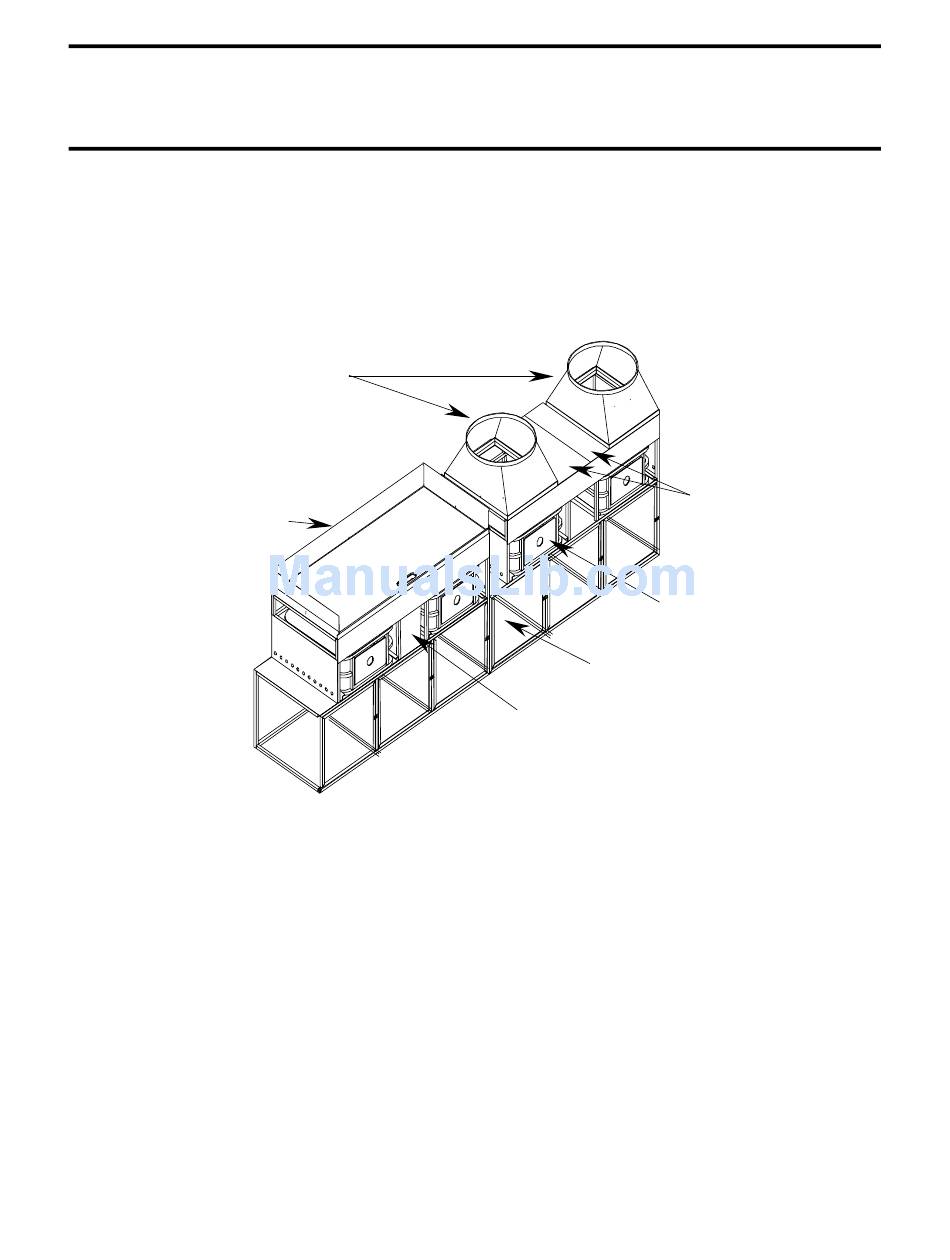

Figure 9. Cook Center Assembly.
0002 00-9
COOK POT CRADLE
ADAPTERS
MBUs
STORAGE AREAS
GREASE PAN
0002 00
