CONTAINERIZED KITCHEN (CK)
APPENDIX A - TRAILER OPERATIONS
Corner blocks on each of the top corners provide attachment points for lifting the container with
an RTCH or crane. Identical blocks on the bottom corners are engaged by ISO locks on the
trailer (see Figure 2) to secure the container in place.
MOUNTING THE CK ON THE TRAILER
When shipping by standard flatbed trailer, the CK must be dismounted
from its trailer and each should be shipped separately due to the combined
height of the system. Under no circumstances shall the CK and its trailer
be shipped on the same trailer.
1. Ensure that the four ISO locks on the corners of the trailer are unlocked (handles pointing
outward from the sides of the trailer). See Figure 2.
The CK weighs approximately 14,080 lbs (6342 kg). To avoid death or
serious injury, all personnel must stand clear while the container is lifted
and placed on the trailer.
To avoid exceeding the trailer's design tongue weight, position the CK so
the end with single door is to the front of the trailer.
2. Lift the CK and place it on the trailer. See Figure 3. Ensure that the container rests flat on
the trailer and the corner blocks are positioned over the ISO locks.
3. Engage the ISO locks by turning them 90 degrees in either direction.
4. If desired, level the trailer as described in WP 0006 00.
TM 10-7360-226-13&P

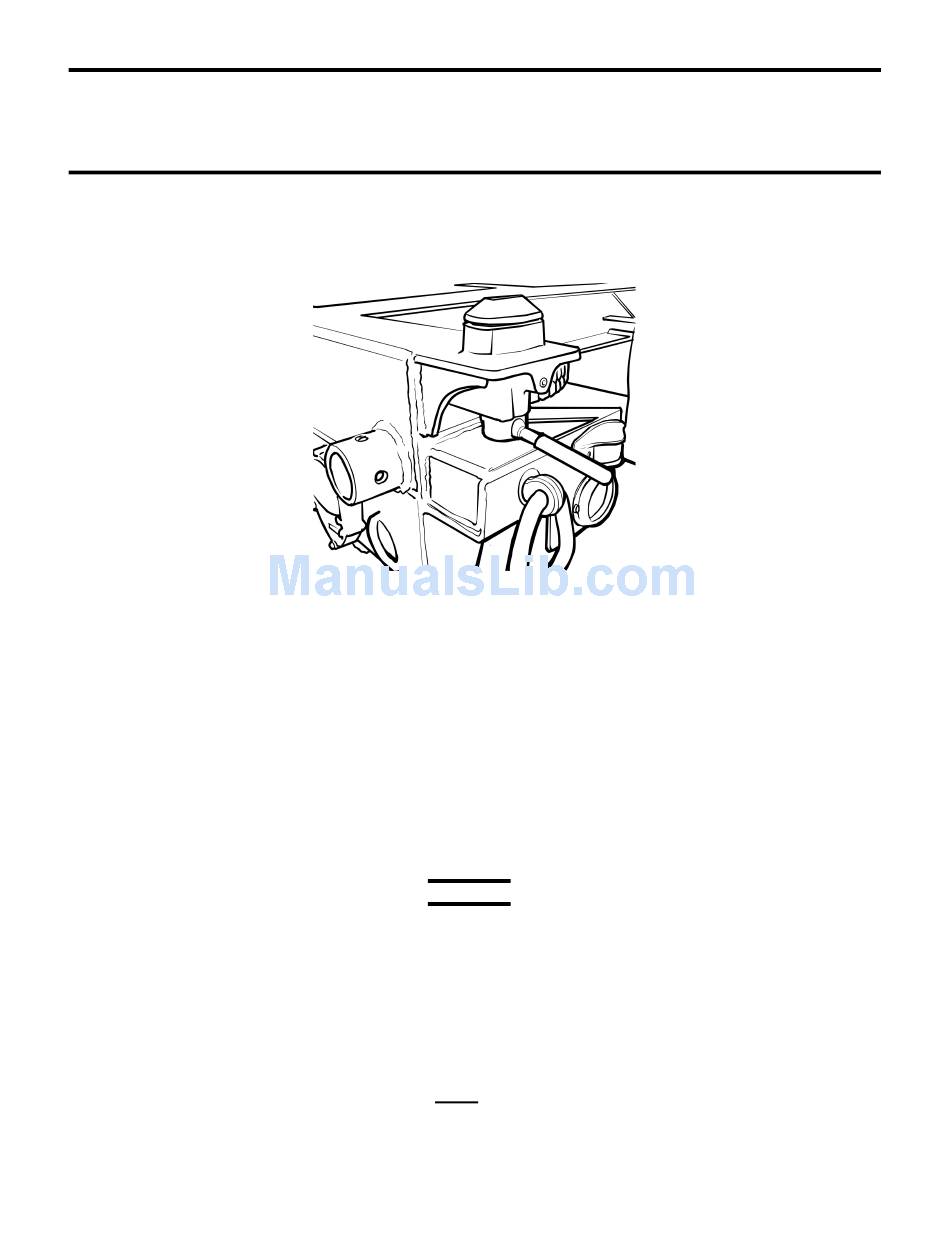

Figure 2. ISO Lock (shown unlocked).
CAUTION
WARNING
CAUTION
0055 00-2
