CONTAINERIZED KITCHEN (CK) 0002 00
EQUIPMENT DESCRIPTION AND DATA
BLACKOUT LIGHTS

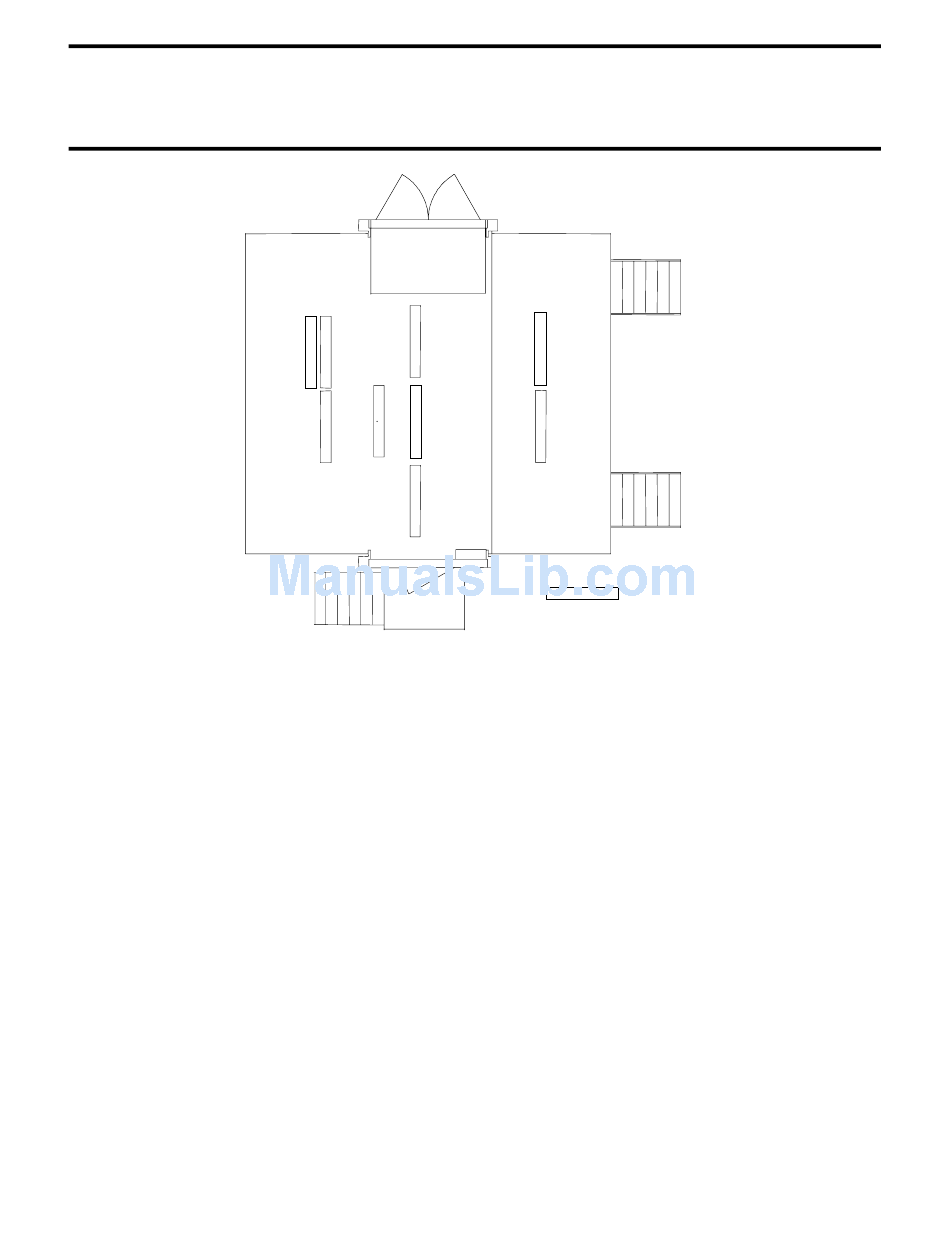

Figure 13. Lighting Fixture Layout.
The lighting controls, described in detail in WP 0003 00, include switches for operating the lights
and for selecting the lighting mode (normal or blackout).
Exhaust System
The principal component of the CK's exhaust system is the exhaust hood mounted over the
length of the cook center, Figure 14. Heat, water vapor, and fumes rising from the cook center
equipment are exhausted by the hood. The hood also includes a makeup air supply to prevent
conditioned air in the kitchen from being drawn out by the hood, and an air curtain that contains
the heat from the cook center until it is drawn out by the exhaust fan.
