2
PANEL DESCRIPTION
!1 PRIO/SET•P KEY*
N (PRIO/PRIO Set)
➥ Push to select the prorty channel. (p. 13)
➥ Push and hold for 2 sec. to set the dsplayed channel
as the prorty channel. (p. 13)
F (S-Rng/PRIO Clear)
➥ Push to transmt the Smart-Rng sgnal. (p. 30)
• When RX channel s selected, "N/A" appears.
➥ Push and hold for 2 sec. to cancel the prorty channel
settng. (p. 13)
!2 LOW/" " KEY*
N (RF Power/Lock)
➥ Push to toggle the transmt output power level. (p. 11)
➥ Push and hold for 2 sec. to electroncally lock all keys
except the followng (p. 14):
[PTT], [Side1] (Montor), [Top] (Functon),
and (Lock)
Push and hold for 2 sec. agan to turn the lock functon
OFF.
F (Dup/Zone)
➥ Push to toggle the selected channel between duplex or
smplex operaton. (Dependng on pre-settng)
• Duplex operaton can be selected n 'CB-R1' to 'CB-R8' only.
➥ Push and hold for 2 sec., then select the desred zone
wth [CH Up] or [CH Down]. (p. 11)
• Avalable only when more than two zones are set.
6

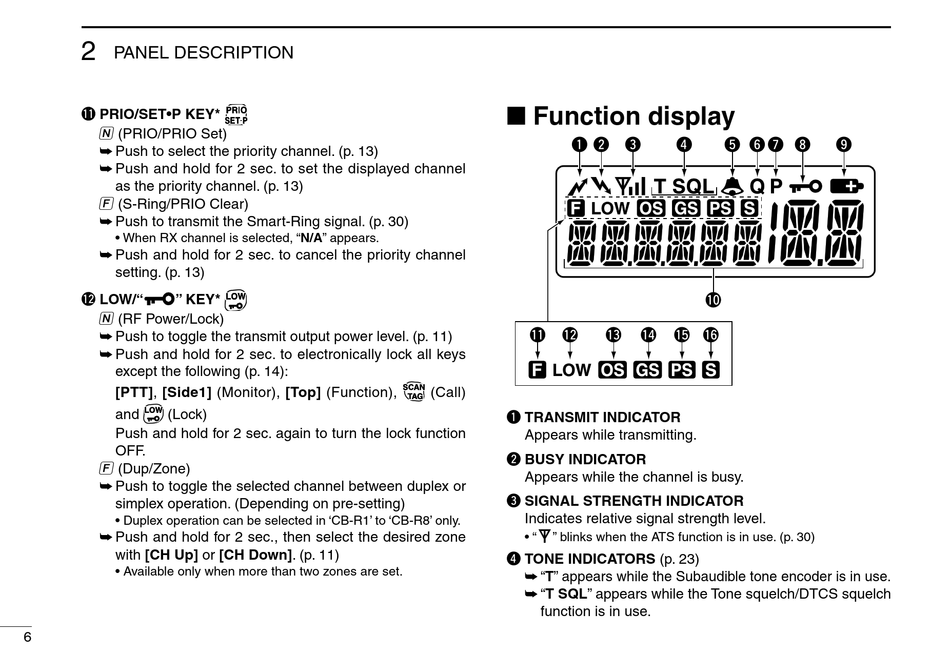

■ Function display

q w
!1 !2 !3
(Call)
q TRANSMIT INDICATOR
Appears whle transmttng.
w BUSY INDICATOR
Appears whle the channel s busy.
e SIGNAL STRENGTH INDICATOR
Indcates relatve sgnal strength level.
• " " blnks when the ATS functon s n use. (p. 30)
r TONE INDICATORS (p. 23)
➥ "T" appears whle the Subaudble tone encoder s n use.
➥ "T SQL" appears whle the Tone squelch/DTCS squelch
functon s n use.
e r t y u i
!0
!4 !5 !6
o
