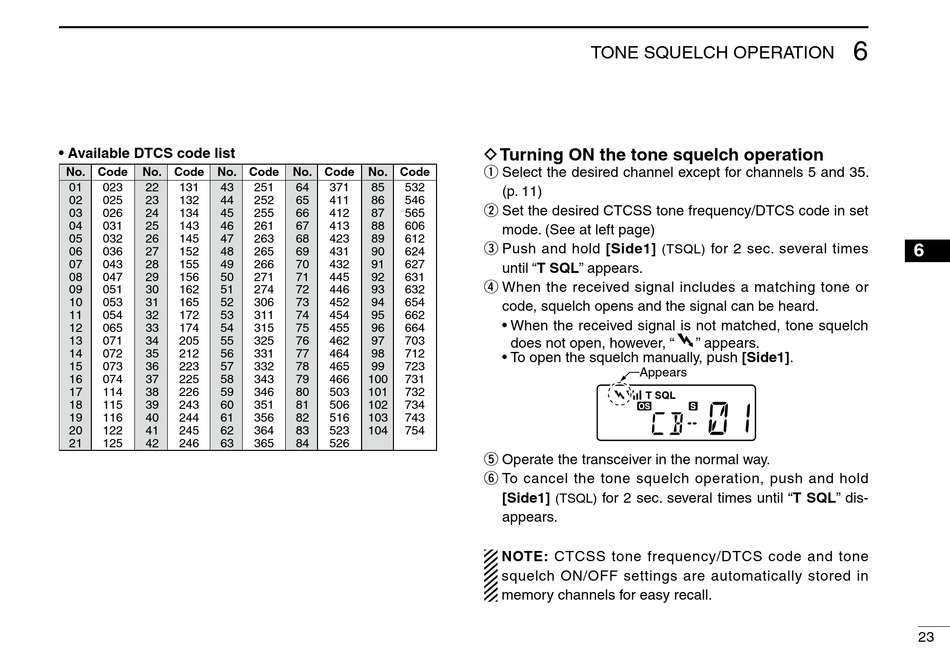

Icom IC-41S Instruction Manual page 27

• Available DTCS code list
No. Code No. Code No.
01 023 22 131 43
02 025 23 132 44
03 026 24 134 45
04 031 25 143 46
05 032 26 145 47
06 036 27 152 48
07 043 28 155 49
08 047 29 156 50
09 051 30 162 51
10 053 31 165 52
11 054 32 172 53
12 065 33 174 54
13 071 34 205 55
14 072 35 212 56
15 073 36 223 57
16 074 37 225 58
17 114 38 226 59
18 115 39 243 60
19 116 40 244 61
20 122 41 245 62
21 125 42 246 63
Code No. Code No. Code
251 64 371 85 532
252 65 411 86 546
255 66 412 87 565
261 67 413 88 606
263 68 423 89 612
265 69 431 90 624
266 70 432 91 627
271 71 445 92 631
274 72 446 93 632
306 73 452 94 654
311 74 454 95 662
315 75 455 96 664
325 76 462 97 703
331 77 464 98 712
332 78 465 99 723
343 79 466 100 731
346 80 503 101 732
351 81 506 102 734
356 82 516 103 743
364 83 523 104 754
365 84 526
TONE SQUELCH OPERATION
D Turning ON the tone squelch operation
q Select the desred channel except for channels 5 and 35.
(p. 11)
w Set the desred CTCSS tone frequency/DTCS code n set
mode. (See at left page)
e Push and hold [Side1]
(TSQL)
untl "T SQL" appears.
r When the receved sgnal ncludes a matchng tone or
code, squelch opens and the sgnal can be heard.
• When the receved sgnal s not matched, tone squelch
does not open, however, "
• To open the squelch manually, push [Side1].
Appears
t Operate the transcever n the normal way.
y To cancel the tone squelch operaton, push and hold
[Side1] for 2 sec. several tmes untl "T SQL" ds-
(TSQL)
appears.
NOTE: CTCSS tone frequency/DTCS code and tone
squelch ON/OFF settngs are automatcally stored n
memory channels for easy recall.
6
for 2 sec. several tmes
" appears.
