Icom IC-4061T Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
UHF TRANSCEVER
S-14229HZ-C1-q
Jan. 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-4061T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Icom IC-4061T

Summary of Contents for Icom IC-4061T

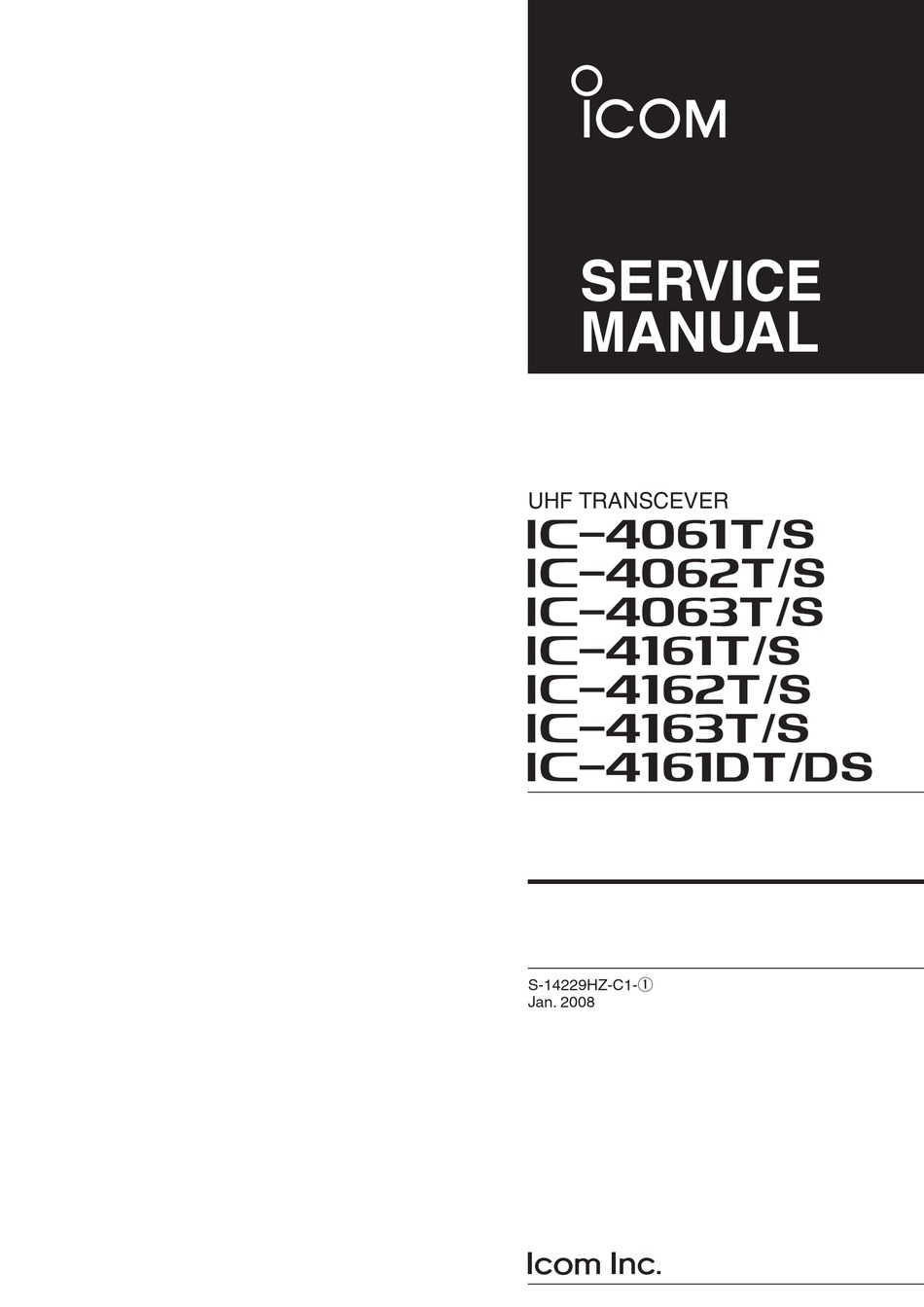

  • Page 1 UHF TRANSCEVER S-14229HZ-C1-q Jan. 2008...
  • Page 2 8. READ the instructions of test equipment throughly before connecting a test equipment to the transceiver. Icom, Icom Inc. and logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany, France, Spain, Russia and/or other countries.

  • Page 3: Table Of Contents

    CONTENTS SECTION SPECIFICATIONS SECTION INSIDE VIEWS SECTION DISASSEMBLY INSTRUCTIONS SECTION OPTIONAL UNIT INSTALLATION SECTION CIRCUIT DESCRIPITON RECEIVER CIRCUITS............5-1 TRANSMITTER CIRCUITS .
  • Page 4 • Antenna impedance • Operating temperature range −22˚F to +140˚F –25˚C to +55˚C • Power supply requirement Specified Icom's battery packs only (Operatable voltage; 7.2 V DC negative ground) • Current drain (approx.) Stand- 100 mA 140 mA (with UT-119H/UT-126H) Max.
  • Page 5 [USA], [GEN], [EXP] [EUR] • Receive system Double conversion superheterodyne • Intermediate frequencies 1st IF; 46.35 MHz, 2nd IF; 450 kHz 0.25 μV typ. at 12 dB SINAD • Sensitivity −4 dBμV (EMF) typ. at 20 dB SINAD 0.25 μV typ. •...
  • Page 6 SECTION 2 INSIDE VIEWS • FRONT UNIT • RF UNIT (TOP VIEW) APC amplifier Mic selector (IC601: TA75S01F) Q506: UNR9113J Q516: UNR9213J AF power amplifier controller Q501: 2SB1132 Q502: XP6501 TX power detector AF power amplifier (D604: RB706F-40) (IC508: TDA8547TS) Speaker selector (Q512, Q513: UNR9213J) Expander IC...
  • Page 7 SECTION 3 DISASSEMBLY INSTRUCTION • REMOVING THE CHASSIS UNIT • REMOVING THE RF UNIT Unscrew 1 nut A, and remove 2 knobs B and C. Unsolder 3 points A. Unscrew 2 screws D. Unscrew 4 screws B and remove the RF unit from the chassis.

  • Page 8: Section 4 Optional Unit Installation

    SECTION 4 OPTIONAL UNIT INSTALLATION CAUTION! Optional unit should be installed at the authorized Icom servise center only. The waterproof capability of the transceiver cannot be guaranteed if you install an unit yourself, or have it done at a non-authorised dealer/service center.

  • Page 9: Receiver Circuits

    SECTION 5 CIRCUIT DESCRIPTION 5-1 RECEIVER CIRCUITS The converted 1st IF signal is passed through the 1st IF fi lter (in wide mode; FI1, in narrow mode; FI4) via the bandwidth 5-1-1 ANTENNA SWITCH (MAIN and RF UNITS) switch (D34), to remove adjacent signals. The filtered signal The received signals from the antenna connector are passed is applied to the 1st IF amplifi...

  • Page 10: Transmitter Circuits

    The TX/RX HPF filters out 250 Hz and lower audio signals, • CTCSS/DTCS and the de-emphasis circuit obtains –6 dB/oct of audio A portion of the demodulated AF signals are passed through characteristics. The expander expands the compressed audio the active LPF (Q28) to filters CTCSS/DTCS signal. The filtered signals and also noise reduction function is provided.

  • Page 11: Pll Circuits

    The output AF signals are then passed through the Digital/ A portion of the transmit signal is detected by the transmit power Analog switch (IC14, pins 12, 14) and applied to the AF mixer detector (D604, D607) to produce a DC voltage corresponding to (IC9, pin 6) where the MIC signals and Tone signals are mixed the transmit output power level.

  • Page 12: Power Supply Circuits

    The buffer-amplifi ed VCO output signals from the tunable BPF If the oscillated signal drifts, its phase changes from that of (L601−L603, C601−C607) are applied to the PLL IC (IC1, the reference frequency, causing a lock voltage change to pin 6). The applied signals are divided at the prescaler and compensate for the drift in the VCO oscillating frequency.

  • Page 13: Port Allocations

    5-5 PORT ALLOCATIONS Port Description Name 5-5-1 CPU (MAIN UNIT; IC18) Outputs CPU clock frequency shift signal to the CPU Port CSFT Description clock oscillator (X2, D38). Name Outputs CTCSS/DTCS select signal to the CTCSS/ DUSE DSDA Outputs serial data to the D/A converter (IC20, pin 6). DTCS switch (Q34).

  • Page 14: Preparation

    The “Choose Destination Location” will appear. Then click ADJUSTMENT ITEM Low band High band [Next>] to install the software to the destination folder. (e.g. TX power : Low1 C:\Program Files\Icom\CS-F3060 ADJ) 400.000 450.000 Mode : Wide y After the installation is completed, the “InstallShield Wiz-...
  • Page 15 • CONNECTION • JIG cable 6 - 2...
  • Page 16 • PC SCREEN EXAMPLE 6 - 3...

  • Page 17: Frequency Adjustment

    6-2 FREQUENCY ADJUSTMENT Select an adjustment item using [↑] / [↓] keys, then set to the specifi ed value using [←] / [→] keys on the connected PC's keyboard. MEASUREMENT ADJUSTMENT ADJUSTMENT CONDITION VALUE UNIT OPERATION PLL LOCK 1 • Channel Click [I/O Check] in the Clone 1.00 V VOLTAGE...

  • Page 18: Transmit Adjustment

    6-3 TRANSMIT ADJUSTMENT Select an adjustment item using [↑] / [↓] keys, then set to the specifi ed value using [←] / [→] keys on the connected PC's keyboard. MEASUREMENT ADJUSTMENT ADJUSTMENT CONDITION VALUE UNIT OPERATION OUTPUT 1 • Channel Connect an RF power meter to 5.0 W POWER...

  • Page 19: Receive Adjustment

    6-4 RECEIVE ADJUSTMENT Select an adjustment item using [↑] / [↓] keys, then set to the specifi ed value using [←] / [→] keys on the connected PC's keyboard. MEASUREMENT ADJUSTMENT ADJUSTMENT CONDITION VALUE UNIT LOCATION RECEIVE NOTE: "RECEIVE SENSITIVITY" must be adjusted before "S-METER." Otherwise, "S-METER" will not be SENSITIVITY adjusted properly.

  • Page 20: Section 7 Parts List

    SECTION 7 PARTS LIST [FRONT UNIT] (For F4060 series) [FRONT UNIT] (For F4060 series) ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION IC501 1180002401 S.REG S-812C30AMC-C2K-G 66.7/35.7 C525 4030016930 S.CER ECJ0EB1A104K 80.9/34 IC505 1110007330 S.IC M62320FP-DF5G 74/36.8 C526 4030017460 S.CER ECJ0EB1E102K 70.9/26.7 IC506 1110007330 S.IC M62320FP-DF5G...
  • Page 21 [FRONT-A UNIT] (For F4160 series) [FRONT-A UNIT] (For F4160 series) ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION IC501 1180002401 S.REG S-812C30AMC-C2K-G 66.7/35.7 C523 4030016930 S.CER ECJ0EB1A104K 80/34 IC505 1110007330 S.IC M62320FP-DF5G 74/36.8 C525 4030016930 S.CER ECJ0EB1A104K 80.9/34 IC506 1110007330 S.IC M62320FP-DF5G 56.8/24.5 C526 4030017460 S.CER ECJ0EB1E102K...

  • Page 22: Main Unit

    [MAIN UNIT] (For F4060 series) [MAIN UNIT] (For F4060 series) ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION 1130010100 S.IC LMX2352TMX/NOPB 58.2/18.3 6200012970 S.COL 0.30-0.91-4TR 8.6N 69.2/9.1 1110003491 S.IC TA31136FNG (D,EL) 76.6/32.9 6200004741 S.COL NLV25T-1R2J 64/22.6 1190001350 S.IC M62364FP 600D 42.1/18.1 6200002851 S.COL NLV25T-R82J 74.2/9 1110006221 S.IC AK2346P-E2/P...
  • Page 23 [MAIN UNIT] (For F4060 series) [MAIN UNIT] (For F4060 series) ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION 7030007280 S.RES ERJ2GEJ 331 X (330 ) 91.5/17.8 R203 7030005000 S.RES ERJ2GEJ 471 X (470 ) 61.8/29.3 7030005050 S.RES ERJ2GEJ 103 X (10 k) 88/15.6 R204 7030008310 S.RES ERJ2GEJ 564 X (560 k)
  • Page 24 [MAIN UNIT] (For F4060 series) [MAIN UNIT] (For F4060 series) ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION R320 7030005090 S.RES ERJ2GEJ 104 X (100 k) 9.4/9.6 C100 4030017420 S.CER ECJ0EC1H470J 48.5/18.7 R328 7510001730 S.TMR ERTJOEP 473J 55.3/37.2 C101 4030017420 S.CER ECJ0EC1H470J 57.9/14.6 R329 7030005060 S.RES ERJ2GEJ 333 X (33 k)
  • Page 25 [MAIN UNIT] (For F4060 series) [MAIN UNIT] (For F4060 series) ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION C235 4030017420 S.CER ECJ0EC1H470J 44.6/34.8 C348 4030017460 S.CER ECJ0EB1E102K 95.9/9.2 C236 4030017420 S.CER ECJ0EC1H470J 43.7/34.8 C349 4030017460 S.CER ECJ0EB1E102K 97.1/7 C237 4030016970 S.CER ECJ0EB1C223K 42.7/40.3 C352 4550006250 S.TAN...
  • Page 26 [MAIN-A UNIT] (For F4160 series) [MAIN-A UNIT] (For F4160 series) ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION 1130010100 S.IC LMX2352TMX/NOPB 58.2/18.3 6070000191 S.DCR CDBKB450KCAY24-R0 84.6/38.2 1110003491 S.IC TA31136FNG (D,EL) 76.6/32.9 1190001350 S.IC M62364FP 600D 42.1/18.1 1110006221 S.IC AK2346P-E2/P 51.3/36.4 6200004741 S.COL NLV25T-1R2J 64/9.6 1110005350 S.IC NJM2870F05-TE1...
  • Page 27 [MAIN-A UNIT] (For F4160 series) [MAIN-A UNIT] (For F4160 series) ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION 7030005530 S.RES ERJ2GEJ 100 X (10 ) 77.2/27.8 R209 7030005240 S.RES ERJ2GEJ 473 X (47 k) 23.3/33.8 R100 7030005090 S.RES ERJ2GEJ 104 X (100 k) 81.7/33.5 R210 7030005240 S.RES ERJ2GEJ 473 X (47 k)
  • Page 28 [MAIN-A UNIT] (For F4160 series) [MAIN-A UNIT] (For F4160 series) ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION R338 7030007340 S.RES ERJ2GEJ 153 X (15 k) 54.2/26.4 4030017380 S.CER ECJ0EC1H050B 88.1/13.5 R339 7030003860 S.RES ERJ3GE JPW V 65.1/12.5 4030017570 S.CER ECJ0EC1H040B 91.7/18 R340 7030005000 S.RES ERJ2GEJ 471 X (470 ) 88.6/9.6...
  • Page 29 [MAIN-A UNIT] (For F4160 series) [MAIN-A UNIT] (For F4160 series) ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION C234 4030017420 S.CER ECJ0EC1H470J 57.4/36.8 C348 4030017460 S.CER ECJ0EB1E102K 95.9/9.2 C235 4030017420 S.CER ECJ0EC1H470J 44.7/35.1 C349 4030017460 S.CER ECJ0EB1E102K 95.9/7.4 C236 4030017420 S.CER ECJ0EC1H470J 43.8/35.1 C352 4550006250 S.TAN...

  • Page 30: Rf Unit

    [RF UNIT] [RF UNIT] ORDER ORDER DESCRIPTION DESCRIPTION LOCATION LOCATION IC601 1110002751 S.IC TA75S01F (TE85R,F) 24.4/23.1 C620 4030009520 S.CER C1608 CH 1H 020B-T [High band] 18.3/8 4030009910 S.CER C1608 CH 1H 040B-T [Low band] 18.3/8 C623 4030019030 S.CER GQM1882C1H220JB01D Q601 1560001232 S.FET RD07MVS2-T112 8/6.5...
  • Page 31 • BC-160 (Optional) [MAIN UNIT] [MAIN UNIT] ORDER DESCRIPTION LOCATION ORDER DESCRIPTION LOCATION 4030006900 S.CER C1608 JB 1H 103K-T 32.9/69.7 4030006900 S.CER C1608 JB 1H 103K-T 32.9/71.1 1110006480 S.IC NJM2801U1-0543-TE1 10.2/62.3 4510008540 S.ELE EEE1CA100SR 17.5/63.8 1110003071 S.IC uPC494GS-E1-A 13/36.7 4030011600 S.CER C1608 JB 1E 104K-T 13.4/60.8 1140012301 S.IC uPD789112AMC-534-5A4-A...
  • Page 32 SECTION 8 MECHANICAL PARTS [MAIN/MAIN-A UNIT] [CHASSIS PARTS] REF. ORDER REF. ORDER DESCRIPTION QTY. DESCRIPTION QTY. 6510025220 AXK540145J 6910015910 ANT CONNECTOR 104 6510025220 AXK540145J 6910015860 IMSA-6277S-O2A-G 6510025190 IMSA-9639S-20Y905 6510023970 20P3.5-JMCS-G-B 2510001360 K036NAX040A00-55 2260002840 SKHLLFA010 8900014981 OPC-1589-1 2260002800 SW-167 (SKQT) 8900014971 OPC-1590-1 2260002800 SW-167 (SKQT)
  • Page 33 W1 (C) MP33 (C) MP8 (C) MP10 (C) MP802 (J) SP1( C) MP501 (F) MC501 (F) MP22 (C) MP33 (C) MP32 (C) MP31 (C) MP502 (F) MP27 (C) MP26 (C) J A CK UNI T MP33 (C) MP506 (F) MP7 (C) F R ONT UNI T MP502 (F) DS510 (F)
  • Page 34 SECTION 9 SEMICONDUCTOR INFORMATION • TRANSISTERS AND FETs • DIODES 2SA1577 T106 Q 2SB1132 T100 R 2SC3356 2SC4116 BL 2SC4215 O 1SV307 1SV308 AVR-M1005C080MTABB DAN202 U T106 DAN235E TL (Symbol: HQ) (Symbol: BAR) (Symbol: R25) (Symbol: LL) (Symbol: QO) (Symbol: TX) (Symbol: TX) (Symbol: N) (Symbol: M)
  • Page 35 SECTION 10 BOARD LAYOUTS • For IC-F4060 series • FRONT UNIT • MAIN UNIT • RF UNIT from battery (TOP VIEW) (TOP VIEW) (TOP VIEW) RXRF to VR unit J701 ISENS from RF from RF unit J602 unit J601 C633 TXRF TMUT IC601...
  • Page 36 (BOTTOM VIEW) J801 EP801 to FRONT J801 unit J503 D804 EP802 D801 EP803 D805 • BC-160 (BOTTOM VIEW) B6418F (NO PATTERNS) J501 J502 to MAIN unit J3 to LCD S-14229HH-P2-w Printed in Japan © 2006−2008 Icom Inc. 10 - 2...
  • Page 37 • For IC-F4160 series • FRONT-A UNIT • MAIN-A UNIT • RF UNIT from battery (TOP VIEW) (TOP VIEW) (TOP VIEW) RXRF to VR unit J701 ISENS from RF from RF unit J602 unit J601 C633 TXRF TMUT IC601 F601 J601 J602 R607...
  • Page 38 (BOTTOM VIEW) J801 EP801 to FRONT J801 unit J503 D804 EP802 D801 EP803 D805 • BC-160 (BOTTOM VIEW) B6947 (NO PATTERNS) J501 J502 to MAIN unit J3 to LCD S-14229HH-P3 Printed in Japan © 2008 Icom Inc. 10 - 4...

  • Page 39: Block Diagram

    SECTION 11 BLOCK DIAGRAM 2SC4116 RF UNIT Q1:2SC4226 ANTENNA RIPPLE D1:HVC383B D604/D607 400-520MHz RB706F 2SK880 M62364FP LVIN HVC350B BUFF CPU5 IC21 Q2:2SC4226 1SV308 Q603 Q602 Q 601 D 601-D603 NJM2904V CR-826 LMX2352TM D5:HVC383B 2SC5107 2SC5107 MA2S077 2SC5107 2SC3356 RD01MUS1 RD07MVS1 1SV307 from Battery 15.3MHz...

  • Page 40: Voltage Diagram

    SECTION 12 VOLTAGE DIAGRAM FRONT UNIT (For F4060 series) D503 R518 R517 D502 MA2S728 MA2S728 EPTT I MSA-9631S-08A-TB J501 J502 PTTI I MSA-9631S-20A-TB MDET Q514 UNR9113J FSCL R534 FSDA FSCL PTTSW FSDA UMG2N PTTI I C505 LRES R533 CL I FSCL PTTSW AFONO...
  • Page 41 FRONT-A UNIT (For F4160 series) J502 J501 I MSA-9631S-08A-TB I MSA-9631S-20A-TB MDET 100K R572 FSCL R534 MA8110 FSDA FSCL I EPTT D509 FSDA PTTI I C505 LRES R533 CL I FSCL AFONO FSDA LRES AFON EPTT CP508 EPTT LIGH UNR9113J CF20 SPCON MCIN...
  • Page 42 MAIN UNIT (For F4060 series) VCO5V 2SC4116 ACZ1005Y IC21 TEMP *C25 1.2U 2SC4226 HVC350B *C24 0.5P 330K 2SK880 R337 *R22 VCON 1.2U 330K IC21 2SB1132 TPC6103 15.3MHZ *C38 CTRL 2SA1577 2SA1577 2SA1577 2SC4226 1.5K 1.2U VOUT *C39 HVC350B NJM2870 1SV308 ACZ1005Y 2SC5107 R343...
  • Page 43 (For F4160 series) MAIN-A UNIT VCO5V 2SC4116 ACZ1005Y IC21 NJM2904V TEMP *C25 2SC422 6 1.2U *C24 HVC350B 0.5P 330K 2SK880 R337 VCON UNR9213J 1.2U *R22 330K IC21 2SB1132 NJM2904V 15.3MHZ IC 6 CTRL VI N *C38 2SA1577 2SA1577 2SA1577 2SC422 6 1.5K 1.2U VOUT...
  • Page 44 VR UNIT RF UNIT EMER S702 EVQ-PUL FI601 NFM60R20T152 R624 R701 J701 100k S701 CBI0 CBI1 CBI2 CBI3 RLED TLED TP70TF5163 20RF-JMCS-G-1B-TF D602 1SV307 *C652 C651 *C644 L608 L607 *L606 C612 D601 C607 L603 L602 L601 0.5P 2.8N 2.8N 2.8N 0.001 0.001 10.3N...

  • Page 45: Section 13 Bc-160

    SECTION 13 BC-160 (Optional) RSQ035P03TR 100μ CHARGE [CHASSIS PARTS] REF. ORDER DESCRIPTION QTY. 2SC4081 1SS355 2SC4081 8010019750 2830 case VSENS 8110008220 2830 cover 5.00V battery 4.7k 9.6uS 10.05V MCR10-JPW 8930039620 Leg cushion (A) 16.0V NJM2801U1-0543-TE1 Screw PH BT M3 × 6 NI-ZU MCR10-JPW 8810008630 8.4V...
  • Page 46 Phone : +34 (93) 590 26 70 Fax : +34 (93) 589 04 46 Glenwood Centre #150-6165 : http://www.icomspain.com Highway 17 Delta, B.C., V4K 5B8, Canada E-mail : icom@icomspain.com Phone : +1 (604) 952-4266 Fax : +1 (604) 952-0090 : http://www.icomcanada.com E-mail : info@icomcanada.com Unit 9, Sea St., Herne Bay, Kent, CT6 8LD, U.K.
  • Page 47 S-14229HZ-C1-q 1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan © 2006–2008 Icom Inc.
