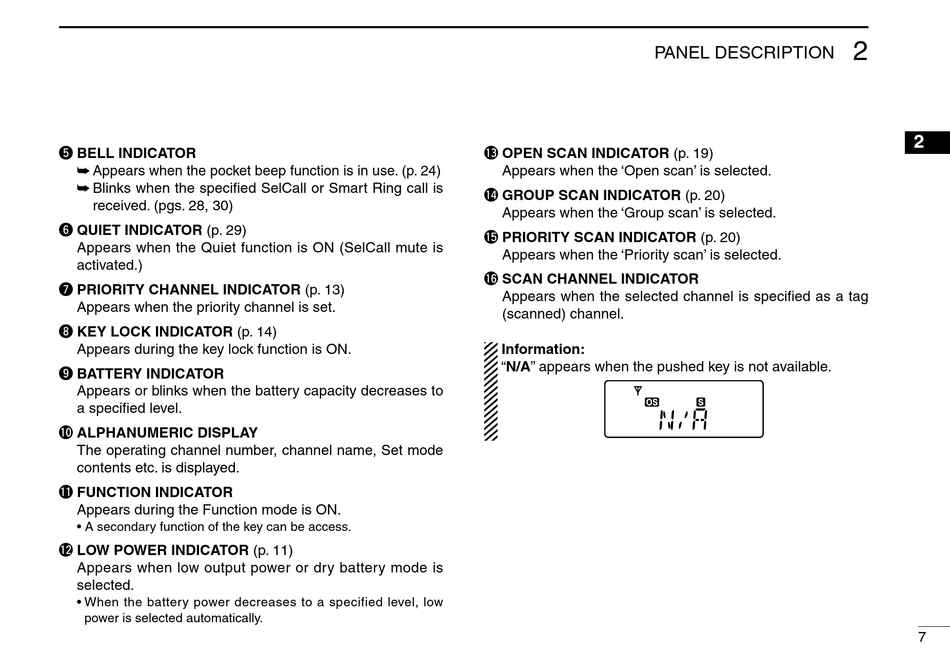

Icom IC-41S Instruction Manual page 11

t BELL INDICATOR
➥ Appears when the pocket beep functon s n use. (p. 24)
➥ Blnks when the specfied SelCall or Smart Rng call s
receved. (pgs. 28, 30)
y QUIET INDICATOR (p. 29)
Appears when the Quet functon s ON (SelCall mute s
actvated.)
u PRIORITY CHANNEL INDICATOR (p. 13)
Appears when the prorty channel s set.
i KEY LOCK INDICATOR (p. 14)
Appears durng the key lock functon s ON.
o BATTERY INDICATOR
Appears or blnks when the battery capacty decreases to
a specfied level.
!0 ALPHANUMERIC DISPLAY
The operatng channel number, channel name, Set mode
contents etc. s dsplayed.
!1 FUNCTION INDICATOR
Appears durng the Functon mode s ON.
• A secondary functon of the key can be access.
!2 LOW POWER INDICATOR (p. 11)
Appears when low output power or dry battery mode s
selected.
• When the battery power decreases to a specfed level, low
power s selected automatcally.
PANEL DESCRIPTION
!3 OPEN SCAN INDICATOR (p. 19)
Appears when the 'Open scan' s selected.
!4 GROUP SCAN INDICATOR (p. 20)
Appears when the 'Group scan' s selected.
!5 PRIORITY SCAN INDICATOR (p. 20)
Appears when the 'Prorty scan' s selected.
!6 SCAN CHANNEL INDICATOR
Appears when the selected channel s specfied as a tag
(scanned) channel.
Information:
"N/A" appears when the pushed key s not avalable.
