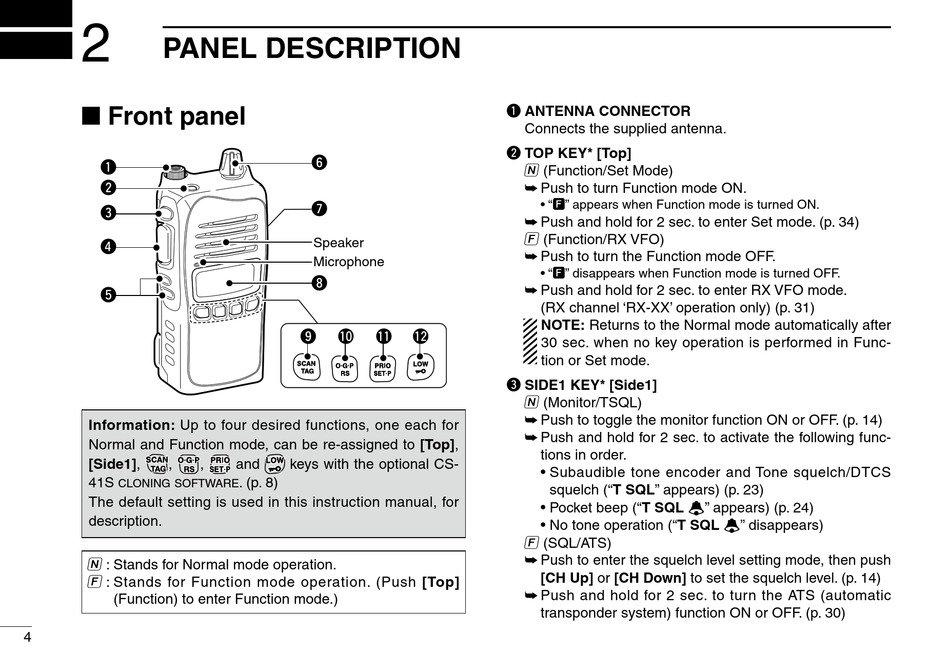

PANEL DESCRIPTION

■ Front panel

q
w
e
r
t
Information: Up to four desred functons, one each for
Normal and Functon mode, can be re-assgned to [Top],
[Side1], , ,
41S
cloning software
The default settng s used n ths nstructon manual, for
descrpton.
N : Stands for Normal mode operaton.
F : Stands for Functon mode operaton. (Push [Top]
(Functon) to enter Functon mode.)
4
y
u
Speaker
Microphone
i
o !0 !1 !2
and keys wth the optonal CS-
. (p. 8)
q ANTENNA CONNECTOR
Connects the suppled antenna.
w TOP KEY* [Top]
N (Functon/Set Mode)
➥ Push to turn Functon mode ON.
• "F" appears when Functon mode s turned ON.
➥ Push and hold for 2 sec. to enter Set mode. (p. 34)
F (Functon/RX VFO)
➥ Push to turn the Functon mode OFF.
• "F" dsappears when Functon mode s turned OFF.
➥ Push and hold for 2 sec. to enter RX VFO mode.
(RX channel 'RX-XX' operaton only) (p. 31)
NOTE: Returns to the Normal mode automatcally after
30 sec. when no key operaton s performed n Func-
ton or Set mode.
e SIDE1 KEY* [Side1]
N (Montor/TSQL)
➥ Push to toggle the montor functon ON or OFF. (p. 14)
➥ Push and hold for 2 sec. to actvate the followng func-
tons n order.
• Subaudble tone encoder and Tone squelch/DTCS
squelch ("T SQL" appears) (p. 23)
• Pocket beep ("T SQL ë" appears) (p. 24)
• No tone operaton ("T SQL ë" dsappears)
F (SQL/ATS)
➥ Push to enter the squelch level settng mode, then push
[CH Up] or [CH Down] to set the squelch level. (p. 14)
➥ Push and hold for 2 sec. to turn the ATS (automatc
transponder system) functon ON or OFF. (p. 30)
