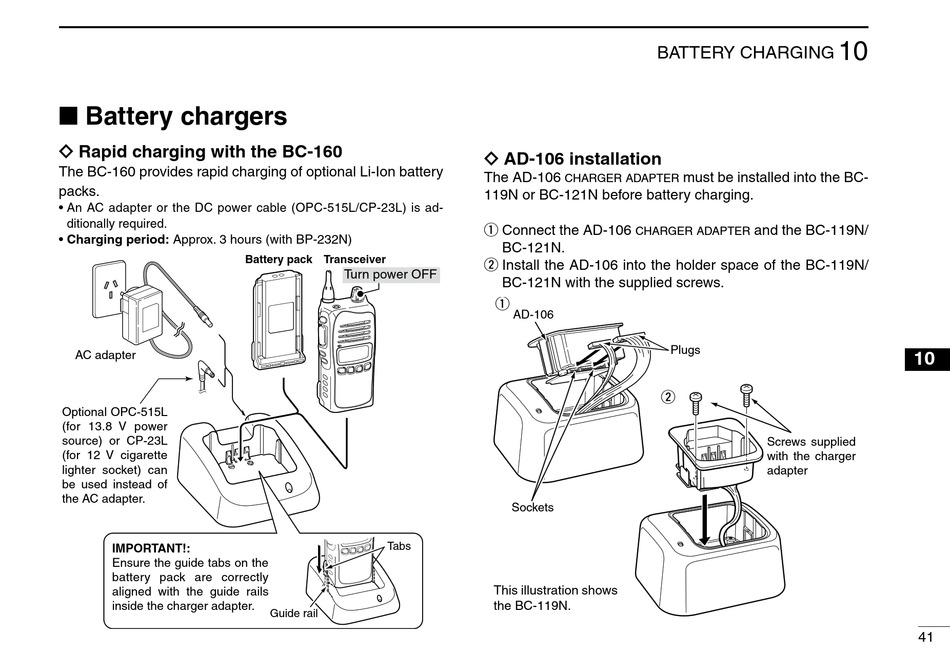

■ Battery chargers

ï Rapid charging with the BC-160
The BC-160 provdes rapd chargng of optonal L-Ion battery
packs.
• An AC adapter or the DC power cable (OPC-515L/CP-23L) s ad-
dtonally requred.
• Charging period: Approx. 3 hours (wth BP-232N)
AC adapter
Optional OPC-515L
(for 13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
IMPORTANT!:
Ensure the guide tabs on the
battery pack are correctly
aligned with the guide rails
inside the charger adapter.
Battery pack Transceiver
Turn power OFF
Tabs
Guide rail
BATTERY CHARGING
ï AD-106 installation
The AD-106
charger adapter
119N or BC-121N before battery chargng.
q C onnect the AD-106
charger adapter
BC-121N.
w Install the AD-106 nto the holder space of the BC-119N/
BC-121N wth the suppled screws.
q
AD-106
w
Sockets
This illustration shows
the BC-119N.
10
must be nstalled nto the BC-
and the BC-119N/
Plugs
Screws supplied
with the charger
adapter
10
