  • Page 1 NEC NEAX 2000 and 2400 System LinkPlus Interface Guide SpectraLink 6000 System SpectraLink 8000 System July 2008 Edition 1725-36138-001 Version E...
  • Page 2 LinkPlus Interface Guide: NEC NEAX 2000 and 2400 System Trademark Information Polycom® and the logo designs SpectraLink® LinkPlus Link NetLink Are trademarks and registered trademarks of Polycom, Inc. in the United States of America and various countries. All other trademarks used herein are the property of their respective owners.

  • Page 3: About This Guide

    (handsets) emulate digital telephone sets to deliver advanced capabilities such as multiple line appearances and LCD display features. This document explains the programming or administration required to use the host digital switch with the following Polycom products: SpectraLink 6000 System - SpectraLink 6300 MCU The SpectraLink 6300 MCU supports up to 3,200 handsets and up to 1,000 Base Stations.

  • Page 4: Related Documents

    Available at http://www.polycom.com/usa/en/support/voice/wi- fi/pbx_integration.html Customer Support Polycom wants you to have a successful installation. If you have questions please contact the Customer Support Hotline at (800) 775-5330. The hotline is open Monday through Friday, 6 a.m. to 6 p.m. Mountain time.

  • Page 5: Icons And Conventions

    Icons and Conventions This manual uses the following icons and conventions. Caution! Follow these instructions carefully to avoid danger. Note these instructions carefully. Label This typeface indicates a key, label, or key on SpectraLink hardware. PN: 1725-36138-001_E.doc About this Guide...

  • Page 7: Plan Programming

    Plan the Interface The system administrator programs the telephone system for use with the Wireless Telephone System using the normal administration terminal or procedures. Programming can be done after the handsets are registered. Recommended programming includes assigning extension numbers to the handsets and programming features on the telephone system so they are easily accessible from the handsets.
  • Page 8 LinkPlus Interface Guide: NEC NEAX 2000 and 2400 System • Before installation, the parameters of the wired phones should be verified to plan the parameters required for the handsets. Line assignment The handset supports up to nine line resources. Which lines should...
  • Page 9 Assign Extension Numbers The wire contractor should inform the system administrator which port numbers have been designated for the handsets. The system administrator may use the Extension Assignments Worksheet at the end of this document to track the port numbers, extensions, users, and features assigned to handsets.
  • Page 10 LinkPlus Interface Guide: NEC NEAX 2000 and 2400 System Feature Programming Requirements When planning the interface, the following information must be taken into account: Line sequences The handset uses two types of key sequences to access PBX features and multiple lines. Line sequences are those where the user presses “line”...
  • Page 11 SpectraLink 6100 MCU For the SpectraLink 6100 MCU, the handset function menu text can only be changed via remote configuration through the services of Polycom’s Customer Support. SpectraLink 8000 Telephony Gateways Function menu text options can be changed in the Administration Console of the SpectraLink 8000 Telephony Gateways.
  • Page 13 NEC NEAX 2000 and 2400 This section describes the recommended programming to use the Wireless Telephone System with an NEC NEAX 2000 or NEAX 2400 telephone system. The procedures assume: • • • Set the Switch Interface Type SpectraLink 6100 MCU The SpectraLink 6100 Master Control Unit requires the switch interface type to be configured using the front panel keys.
  • Page 14 LinkPlus Interface Guide: NEC NEAX 2000 and 2400 System Configuration. Scroll to Telephone Switch Type and press enter to change this field, from the Submenu of PBX types, select NEC NEAX. Refer to SpectraLink 8000 Telephony Gateway: Administration Guide for SRP for details on configuring the Telephone Switch Type.

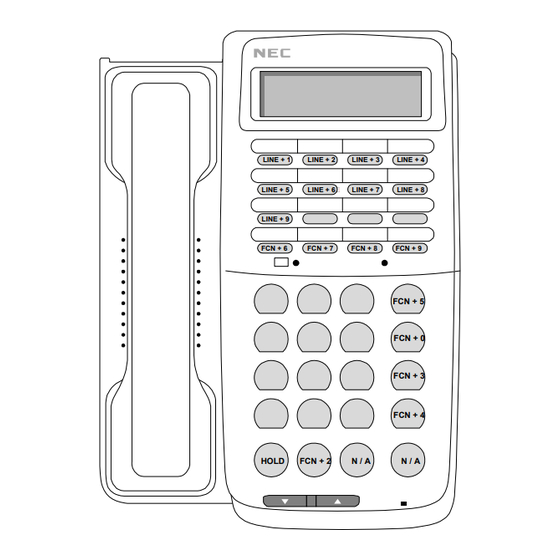

  • Page 15 They are programmed through a series of toll tables, which are then assigned to lines and stations. If you copied an existing wired set, Toll Restrictions will be set correctly for the handset. NEC NEAX 2000 and 2400 menu options on the SpectraLink MUTE RECALL...
  • Page 16 LinkPlus Interface Guide: NEC NEAX 2000 and 2400 System • • • Copy settings to other SpectraLink Wireless Telephones After the handsets have been programmed, copy the programming to all “like” handsets. The installer can now test the handsets. Class of Service: Assign the handsets to the Class of Service with the appropriate features or functions.

  • Page 17: Extension Assignments Worksheet

    Extension Assignments Worksheet Shelf: _______ Interface Module: _______ Handset # Ext. # Handset 1 Handset 2 Handset 3 Handset 4 Handset 5 Handset 6 Handset 7 Handset 8 Handset 9 Handset 10 Handset 11 Handset 12 Handset 13 Handset 14 Handset 15 Handset 16 PN: 1725-36138-001_E.doc...
