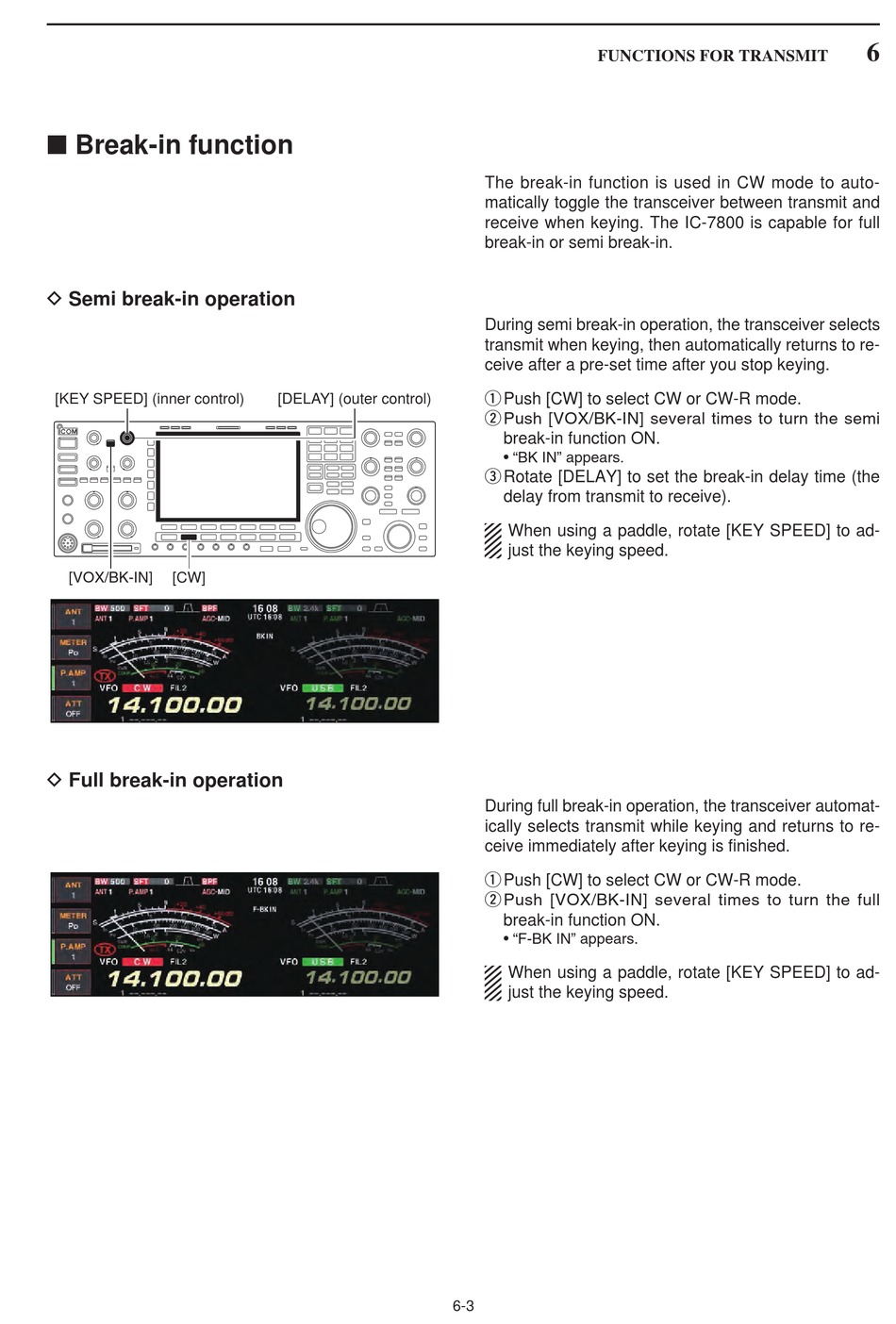

■ Break-in function

D Semi break-in operation

[KEY SPEED] (inner control)
[VOX/BK-IN]
[CW]

D Full break-in operation

[DELAY] (outer control)
FUNCTIONS FOR TRANSMIT
The break-in function is used in CW mode to auto-
matically toggle the transceiver between transmit and
receive when keying. The IC-7800 is capable for full
break-in or semi break-in.
During semi break-in operation, the transceiver selects
transmit when keying, then automatically returns to re-
ceive after a pre-set time after you stop keying.
q Push [CW] to select CW or CW-R mode.
w Push [VOX/BK-IN] several times to turn the semi
break-in function ON.
• "BK IN" appears.
e Rotate [DELAY] to set the break-in delay time (the
delay from transmit to receive).
When using a paddle, rotate [KEY SPEED] to ad-
just the keying speed.
During full break-in operation, the transceiver automat-
ically selects transmit while keying and returns to re-
ceive immediately after keying is finished.
q Push [CW] to select CW or CW-R mode.
w Push [VOX/BK-IN] several times to turn the full
break-in function ON.
• "F-BK IN" appears.
When using a paddle, rotate [KEY SPEED] to ad-
just the keying speed.
6-3
6
