10

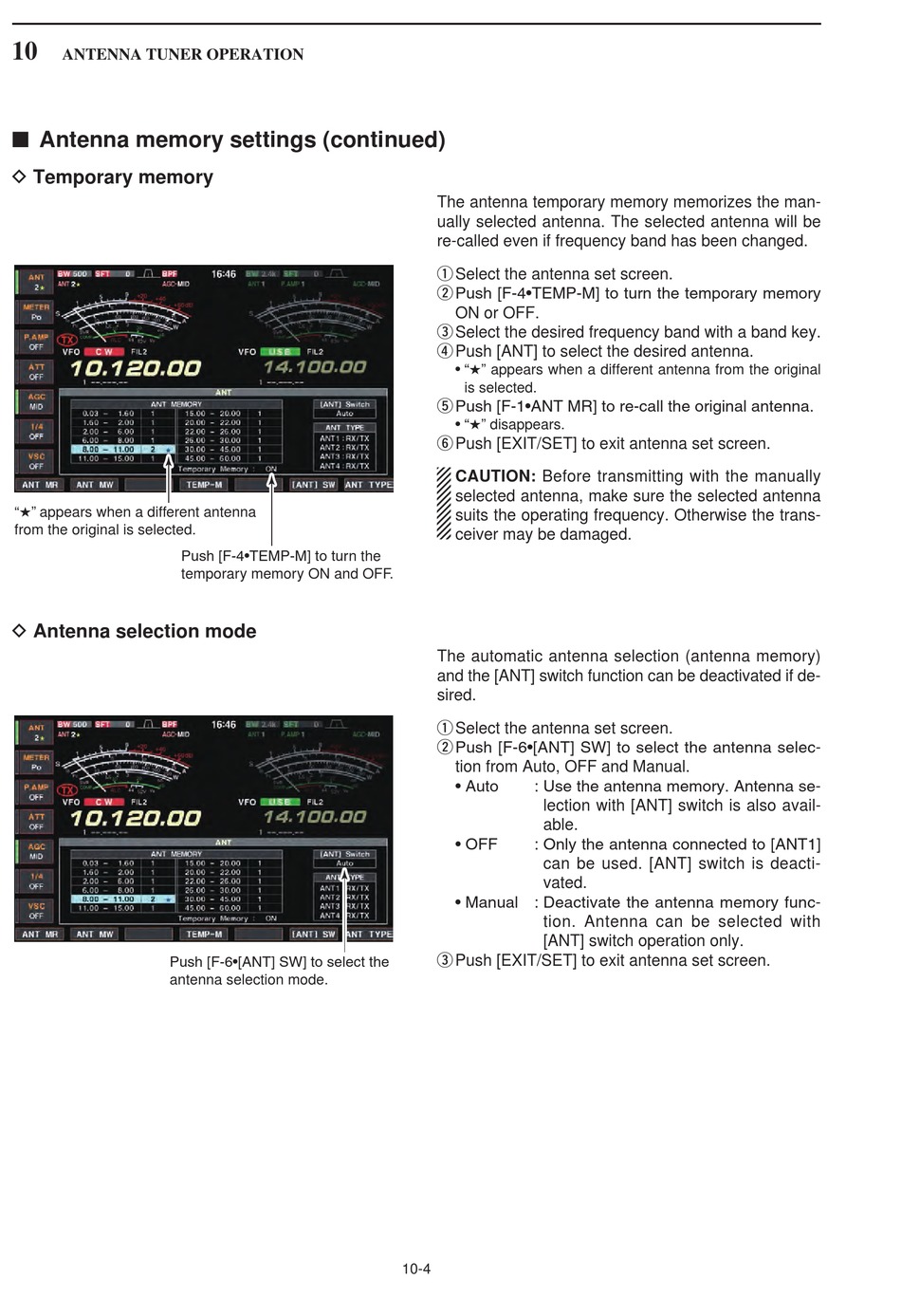

ANTENNA TUNER OPERATION
■ Antenna memory settings (continued)

D Temporary memory

"�" appears when a different antenna
from the original is selected.

D Antenna selection mode

Push [F-6•[ANT] SW] to select the
antenna selection mode.
Push [F-4•TEMP-M] to turn the
temporary memory ON and OFF.
The antenna temporary memory memorizes the man-
ually selected antenna. The selected antenna will be
re-called even if frequency band has been changed.
q Select the antenna set screen.
w Push [F-4•TEMP-M] to turn the temporary memory
ON or OFF.
e Select the desired frequency band with a band key.
r Push [ANT] to select the desired antenna.
• "★" appears when a different antenna from the original
is selected.
t Push [F-1•ANT MR] to re-call the original antenna.
• "★" disappears.
y Push [EXIT/SET] to exit antenna set screen.
CAUTION: Before transmitting with the manually
selected antenna, make sure the selected antenna
suits the operating frequency. Otherwise the trans-
ceiver may be damaged.
The automatic antenna selection (antenna memory)
and the [ANT] switch function can be deactivated if de-
sired.
q Select the antenna set screen.
w Push [F-6•[ANT] SW] to select the antenna selec-
tion from Auto, OFF and Manual.
• Auto : Use the antenna memory. Antenna se-
lection with [ANT] switch is also avail-
able.
• OFF : Only the antenna connected to [ANT1]
can be used. [ANT] switch is deacti-
vated.
• Manual : Deactivate the antenna memory func-
tion. Antenna can be selected with
[ANT] switch operation only.
e Push [EXIT/SET] to exit antenna set screen.
10-4
