5
FUNCTIONS FOR RECEIVE

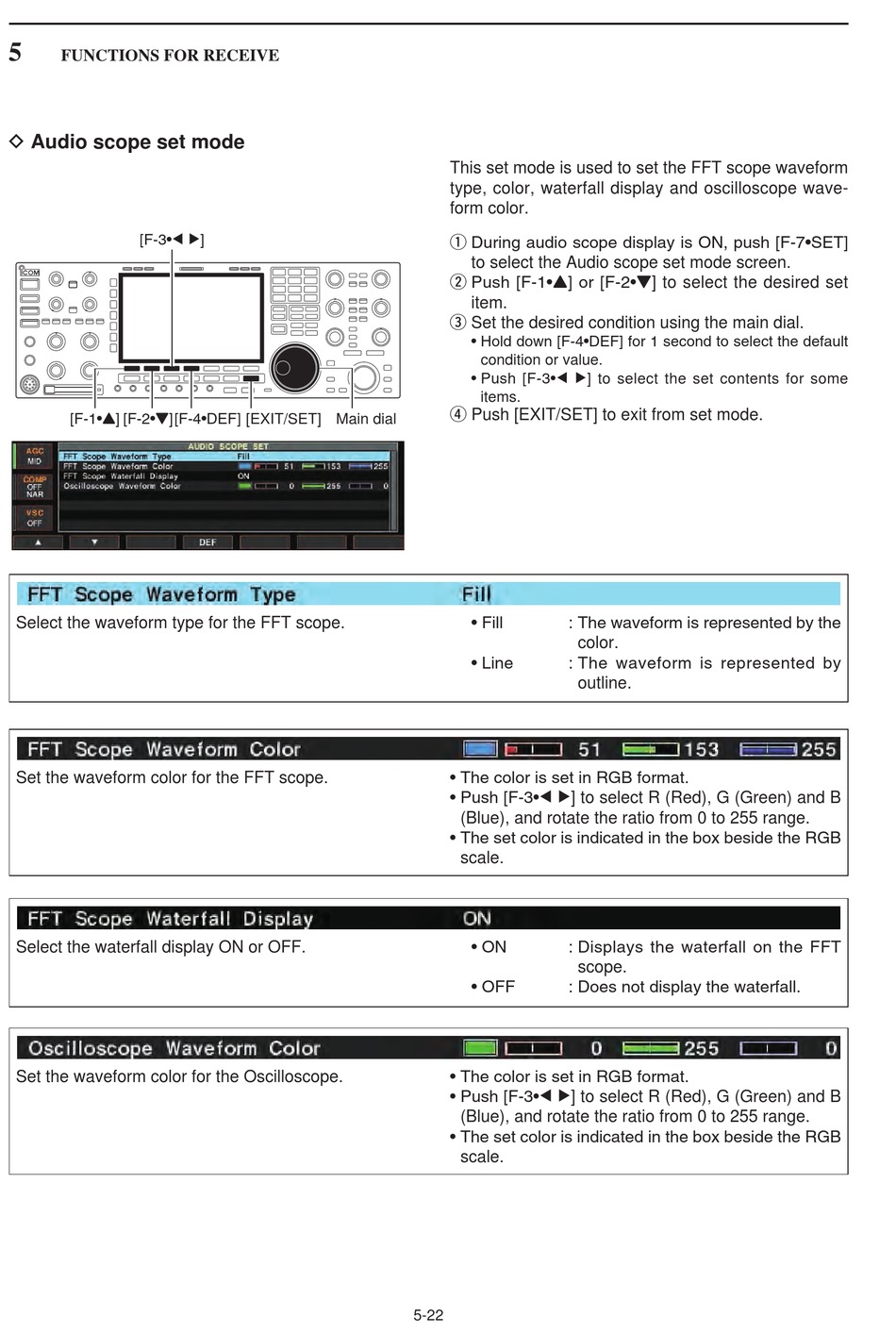

D Audio scope set mode

[F-3•Ω ≈]
[F-1•Y] [F-2•Z][F-4•DEF]
Select the waveform type for the FFT scope.
Set the waveform color for the FFT scope.
Select the waterfall display ON or OFF.
Set the waveform color for the Oscilloscope.
[EXIT/SET] Main dial
5-22
This set mode is used to set the FFT scope waveform
type, color, waterfall display and oscilloscope wave-
form color.
q During audio scope display is ON, push [F-7•SET]
to select the Audio scope set mode screen.
w Push [F-1•Y] or [F-2•Z] to select the desired set
item.
e Set the desired condition using the main dial.
• Hold down [F-4•DEF] for 1 second to select the default
condition or value.
• Push [F-3•Ω ≈] to select the set contents for some
items.
r Push [EXIT/SET] to exit from set mode.
• Fill : The waveform is represented by the
color.
• Line : The waveform is represented by
outline.
• The color is set in RGB format.
• Push [F-3•Ω ≈] to select R (Red), G (Green) and B
(Blue), and rotate the ratio from 0 to 255 range.
• The set color is indicated in the box beside the RGB
scale.
• ON : Displays the waterfall on the FFT
scope.
• OFF : Does not display the waterfall.
• The color is set in RGB format.
• Push [F-3•Ω ≈] to select R (Red), G (Green) and B
(Blue), and rotate the ratio from 0 to 255 range.
• The set color is indicated in the box beside the RGB
scale.
